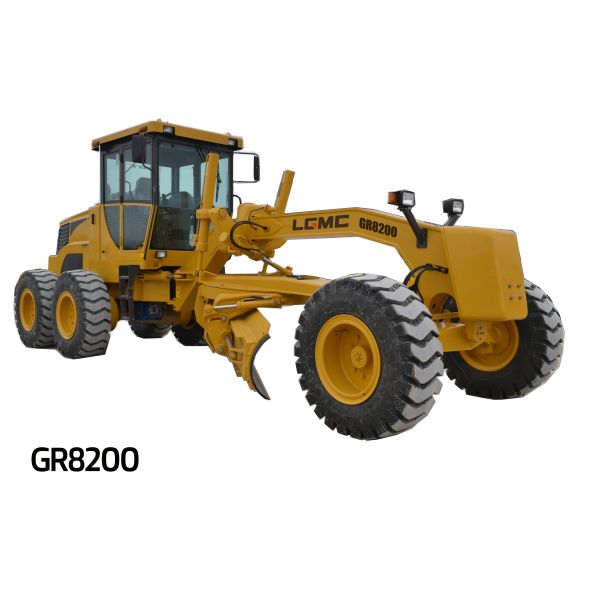

GR8200 16000kg Grader Road Machine , 8km/H Road Construction Heavy Equipment
GR8200 16000kg Grader Road Machine , 8km/H Road Construction Heavy Equipment
GR8200 16000kg Grader Road Machine , 8km/H Road Construction Heavy Equipment
GR8200 16000kg Grader Road Machine , 8km/H Road Construction Heavy Equipment
GR8200 16000kg Grader Road Machine , 8km/H Road Construction Heavy Equipment
GR8200 16000kg Grader Road Machine , 8km/H Road Construction Heavy Equipment
Specifications
Brand Name :
LGMC
Model Number :
GR8200
Certification :
ORIGINAL or OEM
Place of Origin :
China
MOQ :
1PC
Price :
Negotiated price
Payment Terms :
T/T, Western Union,Paypal, L/C
Supply Ability :
50 pieces per month
Delivery Time :
10-15days
Packaging Details :
Container
Engine Model :
Cummins CTAA8.3 D6114
Rated Power/Speed :
147/2200kw/rpm
Dimension :
8932×2625×3470mm
Operating Weight :
16000kg
Max. Lift Height :
450mm
Max. Cutting Depth :
500mm
Description
LGMC GR8200 Motor Grader D6114 ZG14B CAT 6121 CUMMINS Diesel Engine Bulldozing Snow Loose Compaction Cloth Mixing
Product Description:

· Place of Origin: China

· Model Number: GR8200

· Name: Construction Motor Grader

· Warranty: 3 Months

· Delivery: 10-15 Working Days

· Stock quantity: available

Packaging & Delivery :


Packaging Details: Container

Port: QINGDAO
PAYMENT:30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.

Motor grader is suitable for large-scaled and leveling in foundation constructions. Our hydraulic motor graders can be used for ditching /grading / slope scraping/ bulldozing/ ripping/ virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi –functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.

It can complete the important content field of highway, farmland and other large areas of ground leveling and ditching, scraping slope, bulldozing, snow, loose, compaction, cloth, mixing, help to load and open land and other work. It is an important equipment in national defense engineering, mine construction, road construction, water conservancy construction and farmland improvement.

Model GR200
Basic Specification Engine Model 　 D6114 ZG14B/CAT 6121/CUMMINS
Rated Power/Speed kw/rpm 147/2200
Dimension mm 8932×2625×3470
Operating Weight kg 16000
Performance Specification Travelling Speed, Forward km/h 5,8,11,19,23,38
Travelling Speed, Reverse km/h 5,11,23
Tractive Force KN 82
Max. Grade ability % 20
Tire Inflation Pressure Kpa 260
Working Hydraulic Pressure Mpa 18
Transmission Pressure Mpa 1.3~1.8
Operating Specification Max. Steering Angle for Front Wheels ° ±50
Max. Lean Angel of Front Wheels ° ±17
Max. Oscillation Angel of Front Axles ° ±15
Max. Oscillation Angle of Balance Box ° 前后15
Frame Articulation Angle ° ±27
Min. Turning Radius m 7.3
Blade Max. Lift Height mm 450
Max. Cutting Depth mm 500
Max. Blade Position Angle ° 90
Blade Cutting Angle ° 28-70
Circle Reversing Rotation ° 360
Moldboard Width*Height mm 4270x610
GR8200 16000kg Grader Road Machine , 8km/H Road Construction Heavy Equipment
Our advantages :
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
