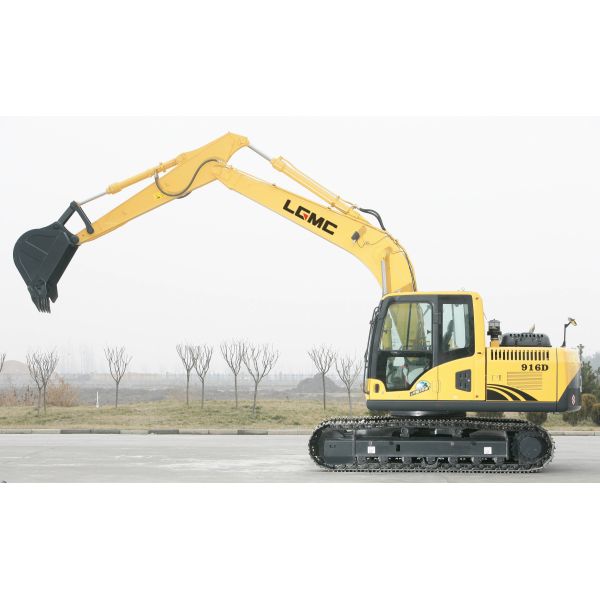

TE916 14.1t Mini Earth Moving Equipment , LGMC Small Earth Mover
TE916 14.1t Mini Earth Moving Equipment , LGMC Small Earth Mover
TE916 14.1t Mini Earth Moving Equipment , LGMC Small Earth Mover
TE916 14.1t Mini Earth Moving Equipment , LGMC Small Earth Mover
Specifications
Brand Name :
LGMC
Model Number :
TE916
Certification :
ORIGINAL or OEM
Place of Origin :
China
MOQ :
1PC
Price :
Negotiated price
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 pieces per month
Delivery Time :
5-15days
Packaging Details :
Container
Operating Weight :
14.1t
Engine :
CUMMINS B3.9-C
Bore and stroke :
102mm×120mm
Boom :
4.6m
Arm :
2.5m
Bucket :
0.63m3
Description

LGMC TE916 Hydraulic Crawler Excavator CUMMINS B3.9-C Engine Hydraulic Disc Brake Hydraulic Oil Released Air Cooled Type

Product Description:

· Place of Origin: China

· Model Number:TE916

· Name:MINI EXCAVATOR

· Warranty: 3 Months

· Delivery: 3-5 Working Days

· Stock quantity: available

Packaging & Delivery :


Packaging Details: Container

Port: QINGDAO
Lead Time: Shipped in 10day after payment

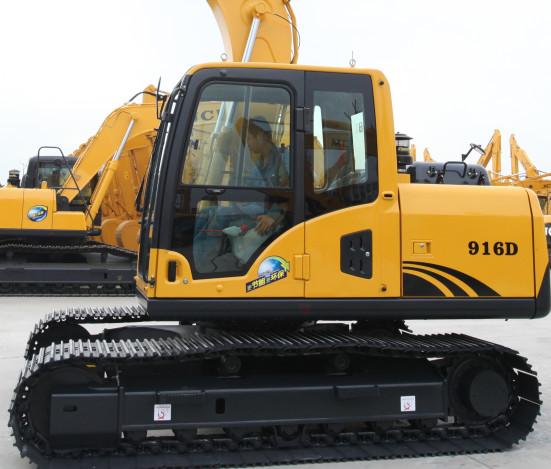

TE916 Hydraulic Crawler Excavator

Technical Specifications

916D Hydraulic Crawler Excavator’s Operating Weight is 14.1t, equipped with CUMMINS B3.9-C Engine, with Boom 4.6m, Arm 2.5m, Bucket 0.63m3.

Notice: Only after getting the permission of our company that the optional or special parts can be installed on the machine.

Engine Travel System
Model CUMMINS B3.9-C Travel motors TONGMYUNG, Korea; Variable axial piston motor
Type Water cooling, turbocharged, empty enter-cooling Support roller quantities 2×7
Carrier roller quantities 2×2
No. of cylinder 4 Travel shoes 2×45
Bore and stroke 102mm×120mm Travel speed 3.81/5.75km/h
Displacement 3.9L Drawbar pulling force 98kN
Power output 86kW/2200rpm Grade ability 70% (35°)
Ground clearance 423mm
Hydraulic System Cab ＆ Control
Pump KAWASAKI, Japan Cab All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner
Type variable double–piston pump
Max. discharge flow 2×132L/min
Max. discharge pressure
Boom, arm and bucket 31.9MPa Control

Two hand levers and two foot pedals for travel Two hand levers for excavating and swing;

Electric rotary-type engine throttle
Travel circuit 31.9MPa
Swing circuit 25.5MPa
Control circuit 3.9MPa Boom, Arm ＆ Bucket
Pilot control pump Gear type Boom cylinder 105mm×70mm×990mm
Main control valve Negative flow control Arm cylinder 115mm×80mm×1175mm
Oil cooler Air cooled type Bucket cylinder 100mm×70mm×885mm
Swing System Refilling Capacities＆lubrications
Swing motor KAWASAKI, Japan Fuel tank 238L
Swing motor type Axial-piston motor Cooling system 20L
Brake Hydraulic oil released Engine oil 15L
Parking brake Hydraulic disc brake Hydraulic oil tank 120L Tank oil level
Swing speed 12.1r/min 208L Hydraulic system
Bucket
Type Backhoe bucket
Bucket capacity 0.63m3 (SAE)
Bucket width 1035mm
Arm Type
A Max. digging depth 8699mm
B Max. dumping height 6183mm
C Max. digging height 5518mm
D Max. vertical digging depth 4869mm
E Max. Depth cut for 2440m(8')Level Bottom 5303mm
F Max. digging distance 8340mm
G Max. digging radius at ground level 8187mm
H Min. swing radius of work equipment 2407mm
Digging Force (ISO6015) Unit: kN
Arm length 2500mm
Bucket digging force 91.1kN
Arm digging force 62.2kN
Arm Type 2500mm
A Overall length 7847mm I Tread 3000mm
B Ground contact length (Transportation) 4451mm J Track length 3729mm
C Overall height(to top of boom) 2731mm K Track gauge 2000mm
D Overall width 2600mm L Track width 2600mm
E Overall height(to top of cab) 2758mm M Shoe width 600mm
F Counter weight ground clearance 915mm O Bonnet height 2105mm
G Ground clearance 423mm P Revolving frame width 2490mm
H Tail swing radius 2373mm Q Distance from swivel center to tail 2373mm
Operating Weight and Ground Pressure
Operating weight includes basic machine (with boom 4.6m, arm 2.5m, and bucket 0.63m3)
Shoe width 600mm
Overall width 2600mm
Ground pressure 36KPa
Operating weight 14100kg

TE916 14.1t Mini Earth Moving Equipment , LGMC Small Earth Mover

Our advantages :

1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.

FAQ:

Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
