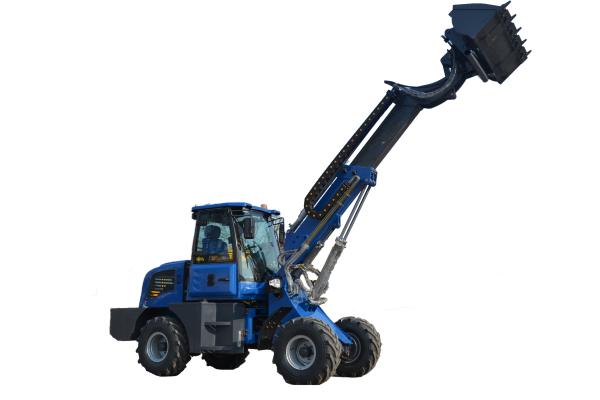

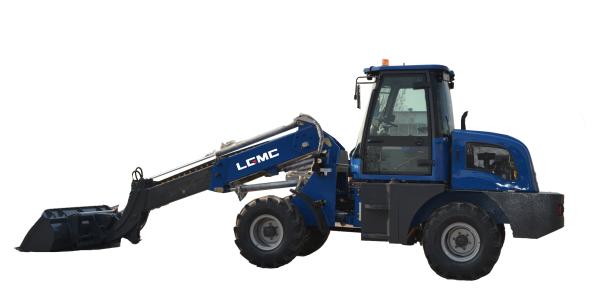

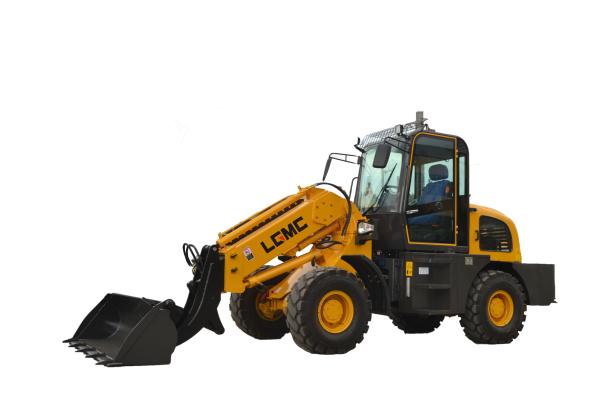

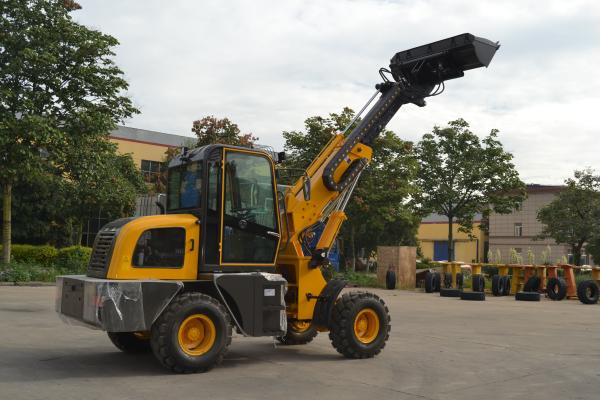

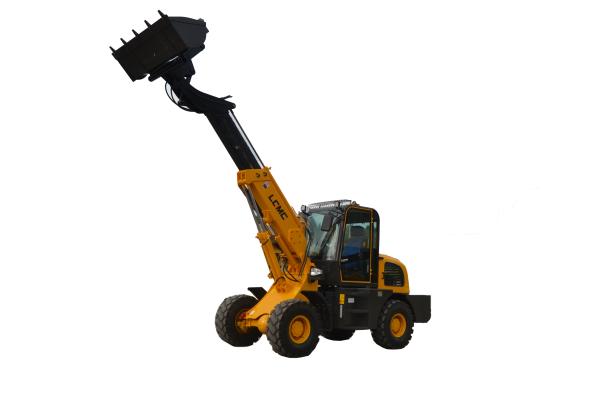

TL15 1.6Ton Telescopic Wheel Loader 37KW Small Size Wheel Loader for constructional home use

TL15 1.6Ton Telescopic Wheel Loader Small Size Wheel Loader For Constructional Home Use

Product Description:

· Place of Origin: China

· Model Number:TL15

· Name:MINI WHEEL LOADEER

· Warranty: 3 Months

· Delivery: 30-45 Working Days

· Stock quantity: available

Packaging & Delivery :

Packaging Details: Container

Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.

1. The telescopic boom which can reach 4.2m greatly increase it's working scope.

2. The articulated structure and axle transmission design makes it powerful and has better pass through ability

3. The seals, valve & joystick are famous oversea products which guarantee that it's a reliable long lasting machine.

4. Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5. Quick coupling system, joystick and buttons makes the operating easy and convenient.

1.0 Engine Details

(1) Model: Xinchai 498/yunnei engine 42kw.

(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power:37KW (50.32H.P.)

(4) Rated Speed:2400 r/p.min (rpm)

(5) Fuel Consumption ratio in standard working condition: 205g/kw.h

2.0 Transmission System

Hydraulic converter + drive shaft + axles

3.0 Bucket

(1) Bucket Capacity: 0.60-0.80m3

(2) Bucket width: 1800mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load: 1600kg including attachment

4.0 Overall Dimensions

(1) Overall Length: 4390mm

(2) Overall Height:2720mm

(3) Overall Width: 1870mm

(4) Max. lifting Height:4250mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4950mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) Quick coupling system

(5) Joystick

(6) Self levering

6.0 Brake System

(1) Service Brake:Four Wheel Chuck brake

(2) Parking Brake:Hand operated

7.0 Tyre

(1) Model:20.5-16, 12ply (2)Width: 333mm(3) Diameter: 926mm

8.0 Wheelbase: 2400mm

9.0 Track: 1467mm

10. system pressure:20Mpa; Hydraulic output:92L/min

Our advantages :
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
