T8 FEATURES:
1.Energy saving up to more than 70% energy than normal fluorescent lamp
2.Use the most mature international well-known LED SMD2835 as the light source, which can
ensure the led tube brightness and long lifetime, also can reduce the light decay.
3.High-grade PC cover with nice light transmittance(> 95%),Transparent PC cover and milky PC
cover are available.
4.No mercury, lead or other hazardous materials; no radiation,no electromagnetic radiation,
no frequency flash, instantstartup, no hurting eyes.
SPECIFICATIONS:
No. | Item | T8-600-9w | T8-900-13w | T8-1200-18w | T8-1500-24w | T8-2400-36w |
1 | Input Voltage | 85-2765VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC |
2 | Output Wattage | 9W | 13W | 18W | 24W | 36W |
3 | Luminious Flux | 990-1080lm | 1430-1560lm | 1980-2160lm | 2640-2880lm | 3940-4320lm |
4 | Working Temperature | -20-40degree | -20-40degree | -20-40degree | -20-40degree | -20-40degree |
5 | Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
6 | LED | SMD2835 | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
7 | Colour Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
8 | CRI | >80Ra | >80Ra | >80Ra | >80Ra | >80Ra |
9 | Length | 2ft | 3ft | 4ft | 5ft | 8ft |

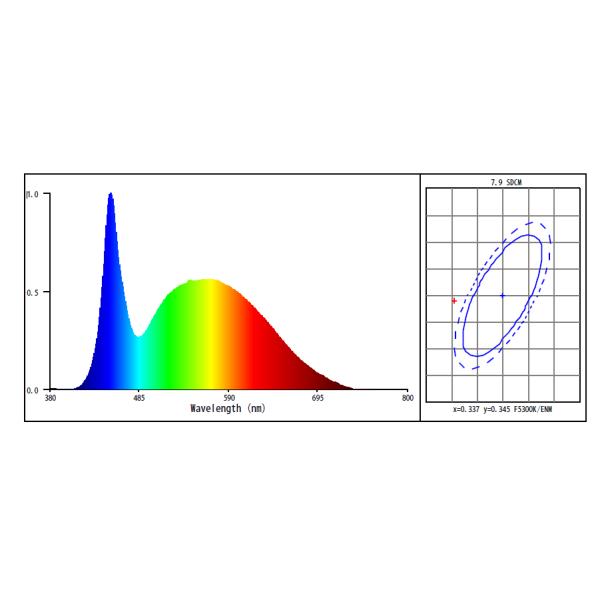

REPORT:

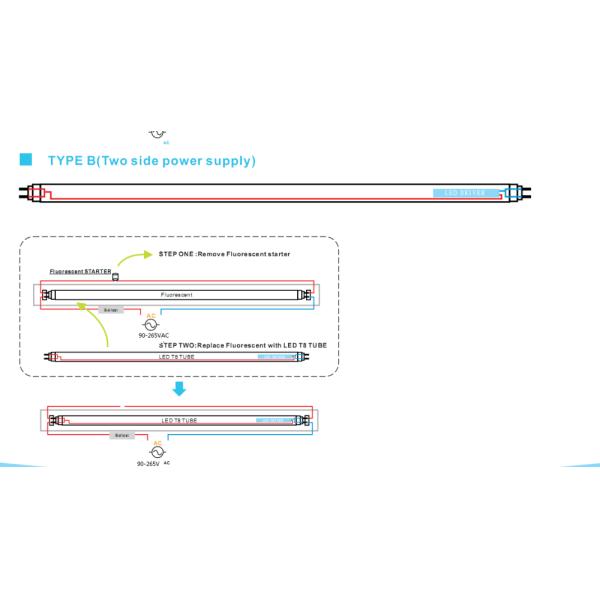

INSTALATION:
