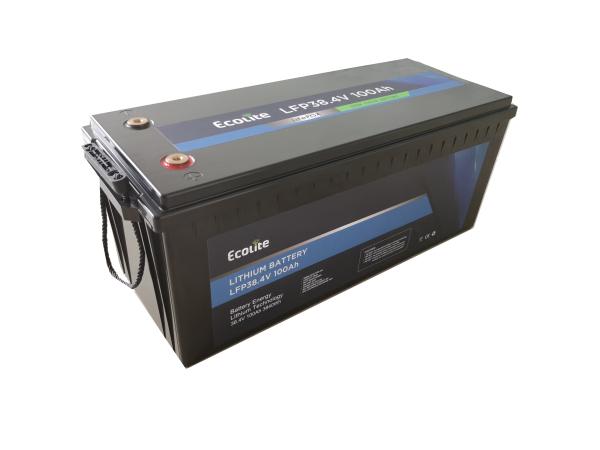

High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv
High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv
High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv
High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv
Specifications
Brand Name :
Ecolite/OEM/ODM
Place of Origin :
China
MOQ :
50
Price :
Inquiry
Payment Terms :
L/C, T/T
Supply Ability :
5000 Units per month
Delivery Time :
1-2 months
Packaging Details :
Carton Pallet Container
Nominal Voltage :
38.4V
Rated Capacity :
100Ah
Energy :
3840Wh
Internal Resistance :
≤60mΩ
Efficiency :
≥0.98
Cycle Life :
>3000cycles @1C.80% DOD
Charge Temperature :
0℃ to 55℃
Discharge Temperature :
-20℃ to 60℃
Color :
Black
Protection Class :
IP67
Description

High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv

FEATURES
Lithium lron Phosphate (LiFePO4). The Safes tLithium Technology.Integrated Battery Management System(BMS) protection: Overcharge protection, Overdischarge protection, Overcurrent production.Short circuit protection, Cell voltage self balance.Maximum support 4 in parallel.Support custom Voltage&Capacity,Size.

PERFORMANCE
Long Cycle Life >3000cycles@ 80%DOD High Density,High Discharge Current,High Tempera-ture Range.Low Weight,Maintenance Free. Fast Charging ,Environmentally Friendly.
High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv

Electrical Parameters

Electrical Parameters Mechanical Parameters
Rated Voltage 38.4V Dimension(WxDxH) 532x207x215mm
Nominal Capacity 100Ah Dimension(WxDxH) 20.94x 8.15x8.46
Energy 3840Wh Weight 27kg
Internal Resistance ≤60mΩ Terminal Type M8
Efficiency ≥0.98 Battery Housing ABS
Cycle Life >3000cycles @1C.80% DOD Protection Class IP67
Self Discharge <5% per Month Cell Type LiFePO4 Cell
Max. Modules in Series/Parallel 12S/1P Communication Bluetooth

Discharge Parameters Charge Parameters
Continuous Discharge Current 100A Charge Method CC-CV
Pulse Discharge Current 200A(<1S) Charge Voltage 42.6~43.8V
Recommended Volt. Disconnect 30V Recommended Float Voltage 39.9~40.2V@100%
BMS Discharge Cut-off Voltage 30V Recommended Charge Current 50A
Reconnect Voltage 32.4V Maximum Charge Current 100A
Short Circuit Protection 300-800us BMS Charge Cut-off Voltage 44.4V

Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃

High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
