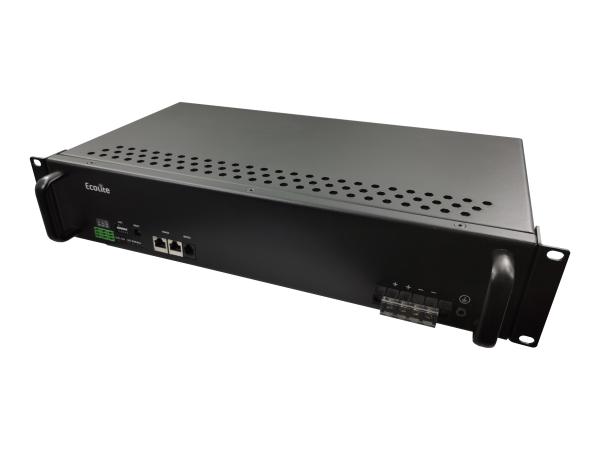

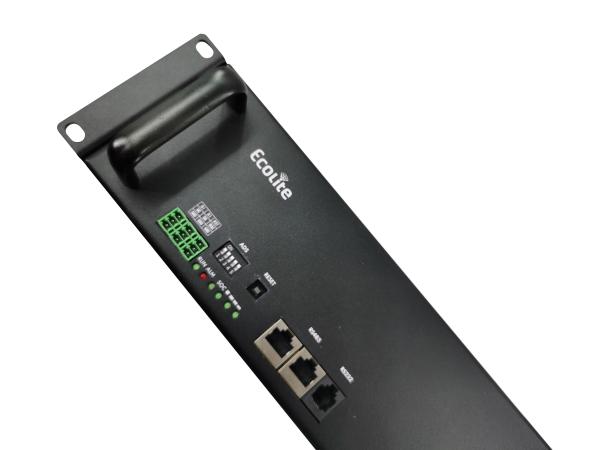

Deep Cycle 48V 20Ah Lithium Iron Phosphate Battery For Energy Storage System
Deep Cycle 48V 20Ah Lithium Iron Phosphate Battery For Energy Storage System
Deep Cycle 48V 20Ah Lithium Iron Phosphate Battery For Energy Storage System
Deep Cycle 48V 20Ah Lithium Iron Phosphate Battery For Energy Storage System
Specifications
Brand Name :
Ecolite/OEM/ODM
Model Number :
LFP4820
Place of Origin :
China
MOQ :
5000
Price :
Inquiry
Payment Terms :
L/C, T/T
Supply Ability :
5000 Units per month
Delivery Time :
1-2 months
Packaging Details :
Carton Pallet Container
Nominal Voltage :
48V
Rated Capacity :
20Ah
Nominal Energy :
960Wh
Resistance :
≤30mΩ
Effciency :
≥0.98
Products Cycle Life :
>2000cycles @1C,80% DOD
Cell Type-Chemistry :
LiFePO4 Cell
Communication :
RS485/RS232
Continuous Discharge Current :
20A
Description

Deep Cycle 48V20Ah Lithium Iron Phosphate Battery Energy Storage System with Integrated BMS
Features
Lithium Iron Phosphate(LiFePO4):
The Safest Lithium Technology.
Integrated Battery Management System(BMS)
Support Multiple parallel connections.
Performance

Long Cycle Life>2000cycles@80%DOD.

High Density,High Discharge Current,High Tempera-ture Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.
Specification

Electrical Parameters
Nominal Voltage48V
Rated Capacity20Ah
Nominal Energy960Wh
Resistance≤30mΩ
Effciency≥0.98
Cycle Life>2000cycles @1C,80% DOD
Self Discharge<5% per Month
Max.Modules in Series,Parallel15S/3P

MechanicalParameters
Dimension(WxDxH)442x245x88mm
Dimension(WxDxH)17.4 x 9.64x3.464"
Weight13kg
Terminal TypeM4
Battery HousingSPCC
Housing ProtectionIP30
Cell Type-ChemistryLiFePO4 Cell
CommunicationRS485/RS232

Discharge Parameters
Continuous Discharge Current20A
Pulse Discharge Current25A(<10S)
Recommended Volt. Disconnect37.5V
BMS Discharge Cut-off Voltage37.5V
Reconnect Voltage40.5V
Short Circuit Protection300-800us

Charge Parameters
Charge MethodCC-CV
Charge Voltage53.25~54.75V
Recommended Float Voltage50.6~51.75V
Recommended Charge Current10A
Maximum Charge Current20A
BMS Charge Cut-off Voltage54.75V

Temperature Parameters
Discharge Temperature-20℃ to 60℃
Charge Temperature0℃ to 55℃
Storage Temperature-20℃ to 60℃
BMS High Temperature Cut-off60℃


Deep Cycle 48V 20Ah Lithium Iron Phosphate Battery For Energy Storage System

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: two year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
