Specifications
Brand Name :
Ecolite/OEM/ODM
Model Number :
48100
Certification :
UN38.3 MSDS CE RoHS
Place of Origin :
China
MOQ :
500
Price :
Inquiry
Payment Terms :
L/C, T/T
Supply Ability :
4000 Units per month
Delivery Time :
1-2 months
Packaging Details :
Carton Pallet Container
Voltage :
51.2V
Capacity :
100Ah
Energy :
5120Wh
Communication :
RS485/RS232
Efficiency :
≥0.98
Resistance :
≤30mΩ
Cycle Life :
>4000cycles @1C,80% DOD
Self Discharge :
<5% per Month
Max.Modules in Series/Parallel :
16S/1P
Dimension(W×D×H) :
482.6×592×133mm
Description

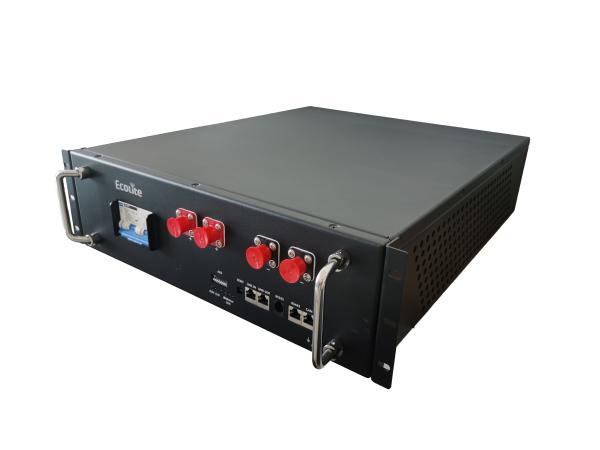

LiFePO4 51.2V100Ah Bms Built in Lithium Ion Battery Pack for Solar Storage Energy System

ESS series is a system based on lithium iron phosphate battery, designed for home applications, with excellent performance, high safety and reliability. It can provide energy storage and electricity for families. Its flexible to make the ESS from 5kwh to 80kwh with them.

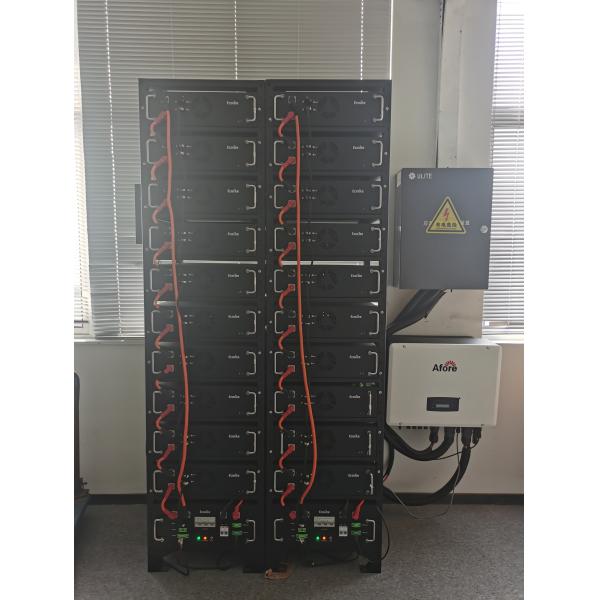

LiFePO4 48V100Ah ESS 5KW/10KW/15KW/20KW   Household Energy Storage System Solution LiFePO4 48V100Ah ESS 5KW/10KW/15KW/20KW   Household Energy Storage System Solution

FEATURES

  • Communication functions, ensuring the reliability of battery pack performance and achieving remote real-time monitoring of battery data.
  • Standard maintenance free design, suitable for installation in communication cabinets.
  • Wide temperature range and high reliability.
  • Long lifespan, with battery pack cycling llife exceeding 4000 times.
  • Low internal resistance of the battery, superior rate discharge performance.
  • Multiple battery packs can be used in parallel, suitable for high-capacity applications.

PERFORMANCE

  • Long Cycle Life >4000cycles@80%DOD.
  • High Density,
  • High Discharge Current,
  • High Tempera-ture Range.
  • Low Weight,
  • Free Maintenance.
  • Fast Charging.
  • Environment Friendly

Specifications

Electrical Parameters
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy 5120Wh
Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >4000cycles @1C,80% DOD
Self Discharge <5% per Month
Max.Modules in Series/Parallel 16S/1P

Mechanical Parameters
Dimension(WxDxH) 482.6x592x133mm
Dimension(WxDxH) 19x23.30x5.24''
Product Weight 45.5kg
Trminal Type FCC06B0
Battery Housing Cold rolled steel sheet
Housing Protection IP30
Cell Type-Chemistry LiFePO4 Cell
Communication RS485/RS232

Discharge Parameters
Continuous Discharge Current 100A
Pulse Discharge Current 150A (<0.5S)
Recommended Volt. Disconnect 40V
BMS Discharge Cut-off Voltage 40V
Reconnect Voltage 43.2V
Short Circuit Protection 300-800us

Charge Parameters
Charge Method CC-CV
Charge Voltage 56.8-58.4V
Recommended Float Voltage 54~55.2V
Recommended Charge Current 50A
Maximum Charge Current 100A
BMS Charge Cut-off Voltage 59V

Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃

FAQ

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
