Specifications
Brand Name :
Amazing Energy
Model Number :
AE48-300
Certification :
CE/RoHS/UN38.3/MSDS
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T
Delivery Time :
5-8 days
Product name :
48V golf cart Lithium battery
Brand :
Amazing Energy
Capacity :
300Ah
Nominal Voltage :
48V
Battery Type :
LiFePO4 Battery
Operating Temp Range :
-20-60
Protection :
BMS Protection
Waterproof :
IP65
Energy :
1450WH
Service Life :
10-15 years
Cycle :
3500 times
Description

IP65 Golf Cart Lithium Battery LiFePo4 48V 300Ah 200Ah Replace Lead Acid Battery

48V 300Ah Golf Cart Battery High Power Rechargeable Lifepo4 Lithium Ion Battery Pack

* Safe Battery Chemistry: Our storage battery series are designed with LiFePO4 chemistry battery which has been widely recognized as one of the safest battery technologies. LiFePO4 chemistry features stable structures with low toxicity, well-defined performance, long-term stability. Automotive Standard Cell & Battery Structure Technology : engineer & technician team bring our expertise at automotive battery R&D and manufacturing standards and technology to the design and structure of the storage batteries.The cells inside are automotive-grade high quality cells, capable of high C-rate charge/discharge to support critical loads such as air condition, water pumps, EV charging, etc.

* Easy Installation and Stackablity: Storage batteries are modular-designed featuring easy installation and stackable up to 16 modules to meet higher energy consumption.

* Wide Compatibility: Storage batteries have commissioned for communication and compatibility with the major inverter and more inverter and charger brand.

Specification of 48V 300AH Golf Cart Battery High Power Rechargeable Lifepo4 Lithium Ion Battery Pack

48V 300AH Golf Cart Battery High Power Rechargeable Lifepo4 Lithium Ion Battery Pack
Item
Specification
Note
Battery Pack
Nominal Voltage:
48V
Any voltage can be customized
Nominal Capacity:
30Ah
Any capacity can be customized
Discharge Cut-Off:
39V
Charge Cut-Off:
54.8V
Charge Current:
80A
Free customization service
Cont. Discharge:
150A
Free customization service
Peak Discharge:
300A
Free customization service
Impedance:
≤20mΩ
Charge Temperature:
0℃ - 45℃
Discharge Temperature:
-20℃ - 60℃
Charge Method:
CC/CV
Life Cycle:
3500+
80% DOD, Max. 95% DOD
BMS:
With BMS
Dimension:
L*W*H: 650*400*330mm
Any dimension can be customized
Weight:
98KG
Battery Cell Used
Prismatic LiFePO4 Cell
3.2V 100Ah
15S3P/
BMS
Over charge Protection
Single cell overcharge protection voltage
3.9±0.05V
Single overcharge release voltage
3.6±0.05V
Charge Protection
Rated charging current
≤20A
Over discharge protection
Single cell over-discharge protection voltage
2.20±0.1V
Single-substrate release voltage
2.7±0.1V
Rated discharge current
≤20A
Discharge protection current
50±10A (10mS)
Short protection
Short circuit protection current
100±10A
Communication
/
Confirm with supplier
Balance
/
Confirm with supplier
LED Indicator
Display content
Voltage/ Capacity%/ Working Temperature
Battery Case
ABS plastic case
with handle
Grade
IP65

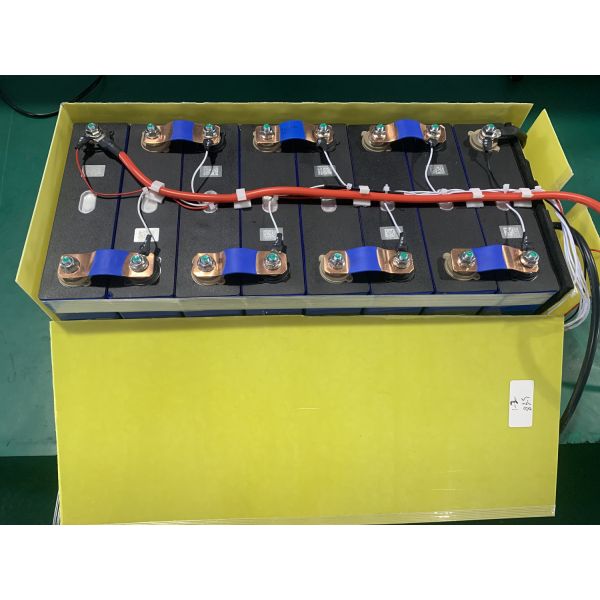

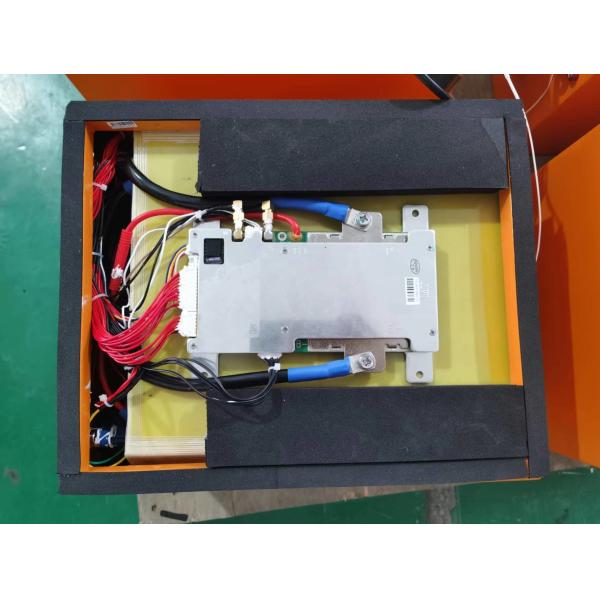

The Detail Picture of 48V 300Ah Golf Cart Lithium battery with LiFePo4 prismatic cell

IP65 Golf Cart Lithium Battery LiFePo4 48V 300Ah 200Ah Replace Lead Acid Battery

IP65 Golf Cart Lithium Battery LiFePo4 48V 300Ah 200Ah Replace Lead Acid Battery

IP65 Golf Cart Lithium Battery LiFePo4 48V 300Ah 200Ah Replace Lead Acid Battery

IP65 Golf Cart Lithium Battery LiFePo4 48V 300Ah 200Ah Replace Lead Acid Battery

How safe are Lithium-Ion LiFePO4 Batteries?

Lithium Iron Phosphate chemistry(LFP,LiFePO4) is one of the most safe Lithium-Ion technology.This chemistry is not subject to thermal runaway, is non-flammable and is considered as non-hazardous by international regulation standards.
Each battery is fitted with a high quality BMS that ensure a safeguard role during battery operation.The BMS is designed to deliver high power in complete safety for a very spectrum of applications.

What can LiFePO4 battery be used for?

LiFePO4 batteries are commonly use for Marine,Recreational vehicles,Golf cart applications,CCTV,robotics,PV energy storage,etc...
YiChen LiFePO4 battery can be used for any system or application that would normally use Lead acid battery(AGM,GEL) in 12V,up to 48V. After removing the olf batteries,place LifePO4 batteries in the same way.
Application-72V 20AH Golf Cart Battery High Power Rechargeable Lifepo4 Lithium Ion Battery Pack
IP65 Golf Cart Lithium Battery LiFePo4 48V 300Ah 200Ah Replace Lead Acid Battery
IP65 Golf Cart Lithium Battery LiFePo4 48V 300Ah 200Ah Replace Lead Acid Battery

Questions and answers

Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.
