Specifications
Brand Name :
Amazing Energy
Model Number :
AE-ESS-48500L
Certification :
CE ROHS MSDS UN38.3
Place of Origin :
China
MOQ :
1 set
Supply Ability :
1000 set per month
Delivery Time :
15 -20 days
Packaging Details :
Standard Export Carton
Brand Name: :
AE POWER
Application :
Home, Commercial, Industrial
Solar Panel Type :
Monocrystalline Silicon
Load Power (W) :
220v
Output Voltage (V) :
48V
Work Time (h) :
24 Hours
Battery Type :
Lithium/lifepo4
Type: :
off-Grid Solar Home Sytem
Battery: :
25kwh solar system
Description

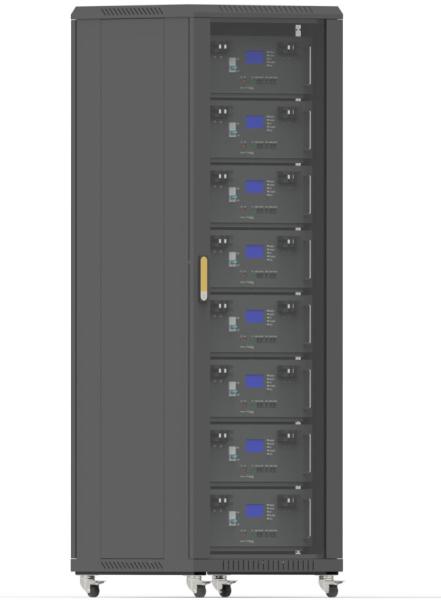

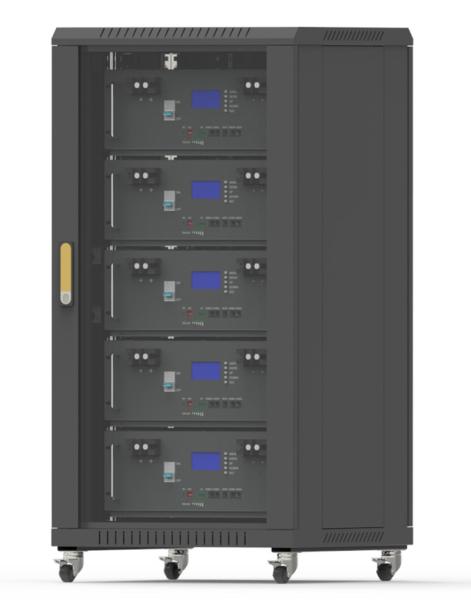

32U Cabinet 25kwh 48V 500AH Solar Storage Batteries With Communication

Production Name:

32U Cabinet 25kwh 48V 500AH solar home storage system Battery with communication RS485 RS232 CANBUS

The 25KWH battery is an ideal solution for residential storage applications, with standard 5U rack mount 48V / 100Ah 5 units, up to 90% usable capacity and 6,000 cycle-life warranty.

Vertical industry integration ensures more than 4500 cycles with 90% DoD or 6000 cycles with 80% DoD

Deliver up to 25KW with single module (25KWh)

Modular design gives the end customers the power of choice of capacity

Compatible with most of the available hybrid inverters

Simple buckle fixing minimize the installation time and cost

Compact and fashionable design fits in your sweet home environment

Bulit in BMS.Has multiple protection, RS485, RS232, CANBUS communication functions to ensure the reliability of the battery pack and achieve remote monitoring real time date of batteries.

Battery Cabinet can charge the home appliances and car,meet your at-one-stop electricity demand.

Items Specifications
Nominal Voltage 48V
Nominal Capacity 500Ah
Module Inside 48V/51.2V 100AH
Configuration 5 Units in parallel
Standard Charge Current 0.2C-0.5C
Max. Charge Current 1C
Battery management System (BMS) BMS-16S
Continuous Discharge Current 100A
Peak Discharge Current 200A
Full Charged Voltage 58.4V(3.65V per cell)
Charge Cut-off Voltage 62.4V (3.9V per cell)
Discharge Cut-off Voltage 40V (2.5V per cell)
Net Weight 245kg
Dimensions 32U
Connector 4AWG
Operating Temperature

Charging: 0°C ~ 45°C

Discharging: -20°C ~ 55°C

Storage Temperature (Recommended to store 20 ± 5°C for long term storage)
Cycle Life

6000 times (80% of initial capacity at 0.2C rate, IEC Standard)

32U Cabinet 25kwh 48V 500AH Solar Storage Batteries With Communication

32U Cabinet 25kwh 48V 500AH Solar Storage Batteries With Communication

32U Cabinet 25kwh 48V 500AH Solar Storage Batteries With Communication

32U Cabinet 25kwh 48V 500AH Solar Storage Batteries With Communication

32U Cabinet 25kwh 48V 500AH Solar Storage Batteries With Communication

s.

32U Cabinet 25kwh 48V 500AH Solar Storage Batteries With Communication

Company Introduction

Amazing Energy Limited(AE) was founded in 2009, draws on the experience of the main lithium battery industry and sub-industry. We committed to the revolution of the world’s lithium battery packs for different applications. And achieved a leading position in the field of starting battery, energy storage system, and smart battery.

We manufacture battery pack, including energy storage battery,lithium-ion battery pack,etc. We customize packs like start batteries, e-mobility batteries (scooter batteries, car batteries, forklift batteries, golf cart batteries, low-speed car batteries), marine batteries , energy storage battery (portable battery / home / commercial / industrial energy storage / stationary battery / UPS, custom battery pack, etc.).

We are willing to share experience with customers interested in the battery business, while selling products and battery equipment, teaching customers battery knowledge, assembly process, testing methods, battery maintenance skills, etc., and we would like to share technology, on-site guidance for customers who plan to build factory and production line etc in their countrie
