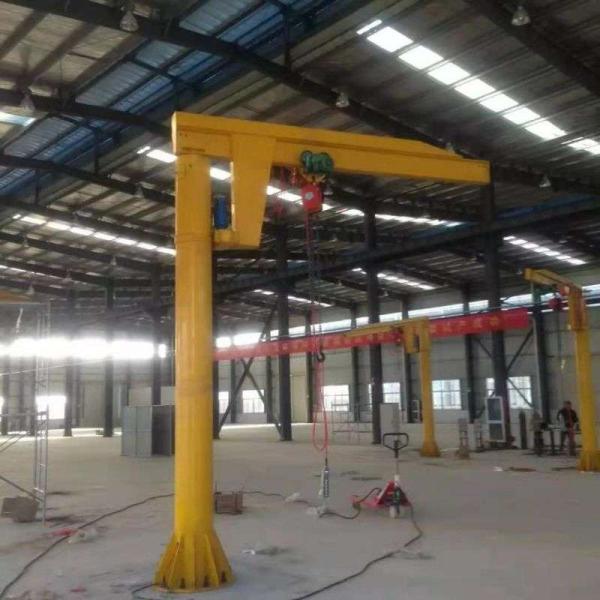

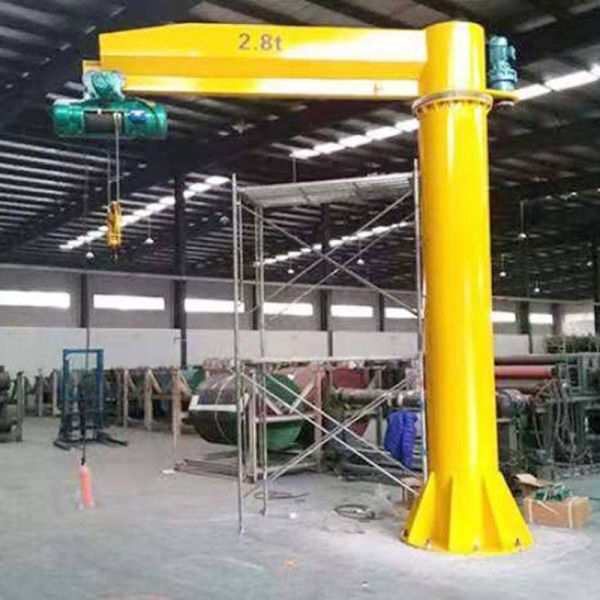

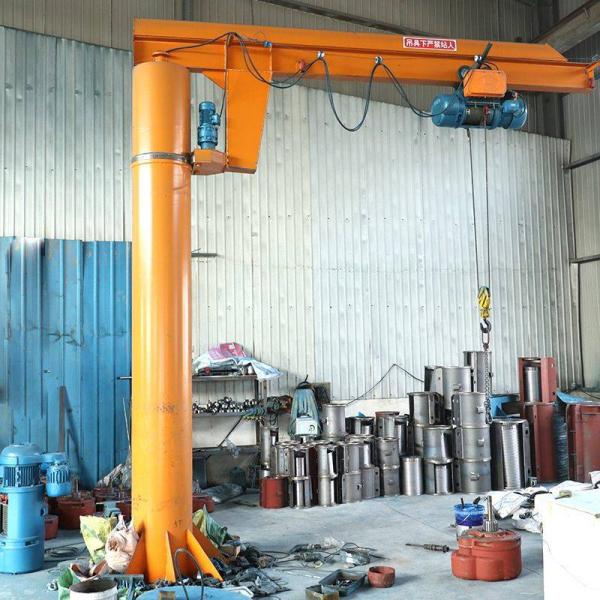

Warehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric Hoist
Warehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric Hoist
Warehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric Hoist
Warehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric Hoist
Warehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric Hoist
Warehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric Hoist
Specifications
Brand Name :
Eternalwin
Model Number :
EW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability :
1000 sets / year
Delivery Time :
15 working days
Packaging Details :
wooden package
Product name :
jib crane
Capacity :
1-10ton
Lifting height :
customized
Boom Lenght :
can be customized
Power supply :
3 phase 380V or customized
Rotation angle :
180 /270 /360/Customized
Usage :
Lift Cargos
Application :
Workshop, warehouse, wharf
Hoisting mechanism :
Hoist Electric
Color :
red or yellow or customized
Description

360 Degree Rotation Floor Mounted Jib Crane With Electric Hoist For Warehouse

Product Description

JIB Crane is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.

PRODUCT FEATURES

  • Multiple designs for jib arms based on customer requirements
  • Steady slewing with robust bearing and adjustable slewing resistance
  • Manual slewing available for all types
  • Slewing limiter allows rotation adjustment every two degrees
  • Clamp fitting lets slewing limiter be added after installation
  • Motorized slewing for jibs with I-beam arms
  • Standard on/off safety switch with pillar jibs (optional for wall-mounted)
  • Robust festooning and easy running with reliable cable carriers
  • Pillar-mounted jibs allow cables from below, side, or above
  • Selection of hoists: manual, electric chain, and pneumatic lifting devices

Technical specification

Model BZ/BZD
Capacity Tons 0.25 0.5 2 5 10 13 16 20
Arm length M Max.18m
Hoisting height M 3,6,9,12 20
Hoisting speed M/MIN 8,8/0.8,7,7/0.7,3.5,3.5/3.5
Travel speed M/MIN 20,30
Rotating speed M/MIN 0.5r/min
Rotating degree degree 360
Wirerope Dia.(mm) 3.6 4.8 7.4 10 13 16 17.5 22.5
Spec. 6x39 6x37+FC
Power AC 220-690V,50/60HZ

Warehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric HoistWarehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric HoistWarehouse Floor Mounted Jib Crane 360 Degree Rotation With Electric Hoist
