1207B-4102 Curtis 24V Motor Controller
1207B-4102 Curtis 24V Motor Controller
1207B-4102 Curtis 24V Motor Controller
1207B-4102 Curtis 24V Motor Controller
1207B-4102 Curtis 24V Motor Controller
1207B-4102 Curtis 24V Motor Controller
Specifications
Brand Name :
Curtis
Model Number :
1207B
Certification :
CE
Place of Origin :
US
MOQ :
1 unit
Price :
$200-$280/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000units/month
Delivery Time :
3 days
Packaging Details :
Carton
Nominal input voltage (V) :
24
Under voltage cut-off voltage（V） :
18
Max current limit (A) :
200
PMW working frequency (kHz) :
10
Working environment temperature (℃ ) :
-40 to+50
Radiator overheat cut-off (℃) :
85
Weight (Kg) :
4
Description

24V Curtis DC Motor Control Assembly DC Motor Drive 1207B-4102

Description

1.The current control range is up to 60A to 300A, and the users has two modes to choose from.

2.It can choose single-ended 0-5V or two-line 0-5KΩ accelerator.
3.It can detect the accelerator fault and protect the controller effectively in case of accelerator failure.
4.Drive part with built-in polarity protection diode.
5.Run self-inspection when power is on, and continuously monitor during work.
6.All drive inputs have short circuit protection.
7.With full output protection function.
8.High protection level.
9.Three-line multi-function display of serial port.

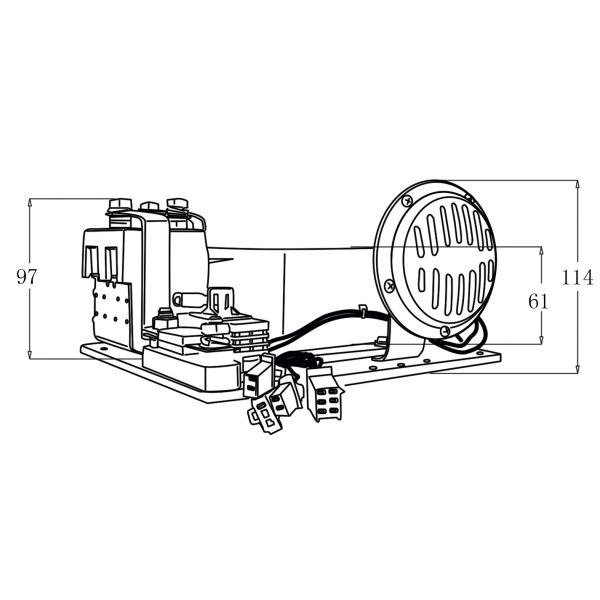

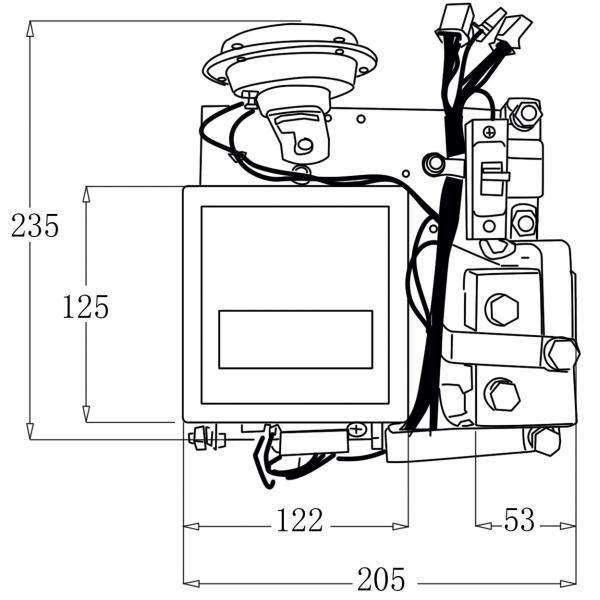

Drawings

1207B-4102 Curtis 24V Motor Controller

1207B-4102 Curtis 24V Motor Controller1207B-4102 Curtis 24V Motor Controller

Parameters

Model
Curtis 1207B
Nominal input voltage (V)
24
Under voltage cut-off voltage(V)
18
Max current limit (A)
200
PMW working frequency (kHz)
10
Working environment temperature (℃ )
-40 to+50
Radiator overheat cut-off (℃)
85
Radiator under temperature cut-off (℃)
-25
Electrical insulation of radiator (VAC)
500
Weight (Kg)
4
