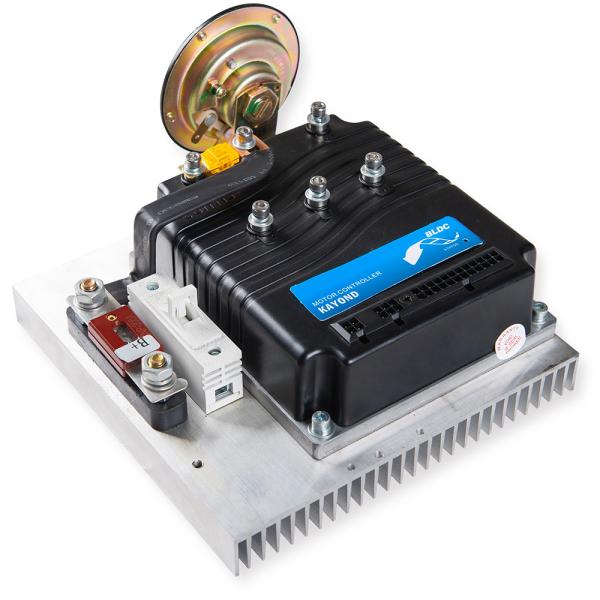

Multifunction BLDC Synchronous Curtis 24V Motor Controller 1230
Multifunction BLDC Synchronous Curtis 24V Motor Controller 1230
Multifunction BLDC Synchronous Curtis 24V Motor Controller 1230
Multifunction BLDC Synchronous Curtis 24V Motor Controller 1230
Specifications
Brand Name :
KAD
Model Number :
BLDC
Certification :
CE
Place of Origin :
Jiangsu，China
MOQ :
1unit
Price :
$114-$120/unit
Packaging Details :
20X25X12 cm，5Kg
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manuf
Weight :
3KG
working temperature :
-40℃to+50℃
PWM :
10khz
Voltage :
24V-80V
Warranty :
1years
Description

24V BLDC brushless motor speed controller permanent magnet synchronous motor controller assembly good price

Description

1.The current control range is up to 60A to 300A, and the users has two modes to choose from.

2. It can choose single-ended 0-5V or two-line 0-5KΩ accelerator.
3.It can detect the accelerator fault and protect the controller effectively in case of accelerator failure.
4. Drive part with built-in polarity protection diode.
5. Run self-inspection when power is on, and continuously monitor during work.
6. All drive inputs have short circuit protection.
7. With full output protection function.
8. High protection level.
9. Three-line multi-function display of serial port.

Parameters

Model
Curtis 1230
Nominal input voltage (V)
24
Under voltage cut-off voltage(V)
18
Max current limit (A)
200
PMW working frequency (kHz)
10
Working environment temperature (℃ )
-40 to+50
Radiator overheat cut-off (℃)
85
Radiator under temperature cut-off (℃)
-25
Electrical insulation of radiator (VAC)
500
Weight (Kg)
4

Multifunction BLDC Synchronous Curtis 24V Motor Controller 1230


Multifunction BLDC Synchronous Curtis 24V Motor Controller 1230Multifunction BLDC Synchronous Curtis 24V Motor Controller 1230
