Specifications
Brand Name :
KAD
Model Number :
CDD1530
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
$2000-$3000 /unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Color :
Red/Customized
Product Name :
Electric Forklift
Load Center :
500mm
Load capacity :
1000-1500kg
Load height :
3000mm
Feature :
High Efficiency
Battery Cpacity :
24V/210Ah
Description
Product Description

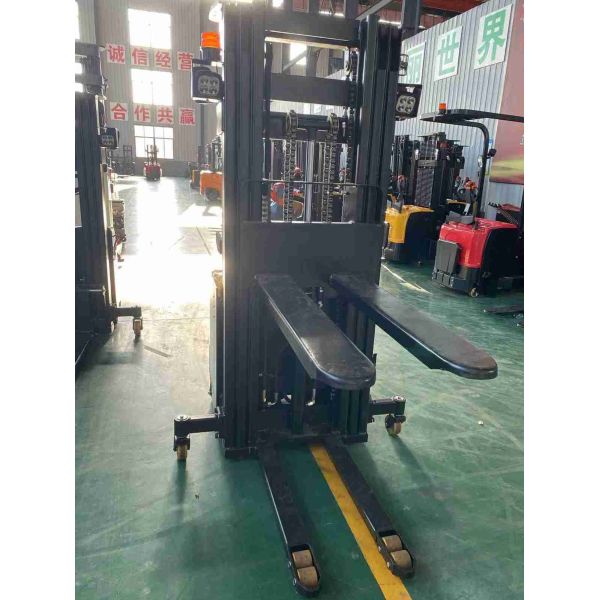

Heavy Duty 1500kg 2000kg Full Electric Pallet Stacker Battery Powered Forklift with 1500mm Lift Height and CE Certified for Small Warehouse Use

The Heavy Duty 1500kg-2000kg Full Electric Pallet Stacker is designed for efficient material handling in small warehouses. With a powerful battery-powered system, it offers quiet, eco-friendly operation and reduced maintenance costs compared to traditional fuel-powered forklifts. The stacker provides a 1500mm lift height, ideal for stacking pallets and organizing shelves in tight spaces. Its compact design allows for easy maneuverability in narrow aisles, maximizing warehouse space. Equipped with CE certification, it ensures high safety standards and reliability. This stacker is perfect for businesses looking for a cost-effective, durable, and safe solution for day-to-day material handling tasks.

Heavy Duty 1500kg 2000kg Full Electric Pallet Stacker Battery Powered Forklift with 1500mm Lift Height and CE Certified for Small Warehouse Use

Heavy Duty 1500kg 2000kg Full Electric Pallet Stacker Battery Powered Forklift with 1500mm Lift Height and CE Certified for Small Warehouse Use

Heavy Duty 1500kg 2000kg Full Electric Pallet Stacker Battery Powered Forklift with 1500mm Lift Height and CE Certified for Small Warehouse Use

Main Features

1. Medium intensity material handling, stacking and loading/unloading.

2. Designed for narrow aisles .

3. Only suitable for single-sided pallet use.

4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.

5. Folding pedals provide a comfortable working environment for operation.

6. Large-capacity battery ensures long time use.

Specification
MODEL
CDD12 CDD16 CDD20
Features
Drive system
Battery
Driving mode
Standing
Load Capacity
Q
KG
1200/1600/2000
Load Center
C
MM
500
Weight
Weight(With battery)
KG
830/880/910/940/970
Wheels
Material
PU
Size
Lifting Height
H3
MM
1600/2000/2500/3000/3500/4000/5000
Lowest Mast
H1
MM
2080/1580/1830/2080/2330/1820/2020
Max.Height
when operating
H4
MM
2080/2730/3230/3730/4230/4460/4960
Min.Height of Fork
H13
MM
≤90
Length
L1
MM
2130
Width
B1
MM
850
Fork Length
L
MM
1070
Wheelbase
Y
MM
1430
Fork Outside Width
B5
MM
550/680
Fork Inside Width
MM
225/355
Min.Turning Radius
WA
MM
1738/2099
Performance
Driving Speed
(Empty/Full Load)
MM/S
6.5/5.0
Lifting Speed
(Empty/Full Load)
MM/S
80/50
Descending Speed
(Empty/Full Load)
MM/S
120
Max.Gradient
(Empty/Full Load)
°
6
Brake
Electromagnetic brake
Driving Motor
KW
DC/0.75/1.2/1.5
Lifting Motor
KW
DC/2
Battery
Capacity
V/Ah
24//210

Features of lightweight electric pallet stackers

The structure of electric pallet stacker is relatively simple and flexible in maneuvering. It is suitable for operation in narrow passages and limited space, and is an important vehicle equipment for warehouses, supermarkets, loading, unloading and stacking palletized goods.
1. energy efficient: the use of electric power drive, not only can improve work efficiency, but also can save energy.
2. Flexible: the equipment is compact and can move freely in a narrow space, and has good steering ability.
3. Simple operation: the control system is simple and easy to understand, the operator only needs to carry out simple instructions to realize the control of the equipment.
4. Safe and reliable: adopting hydraulic system, it can ensure the goods lifting and placing smoothly, and has the function of preventing accidents.
