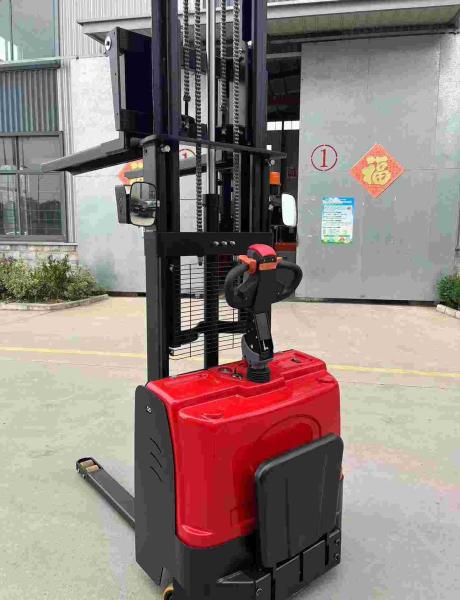

1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry
Specifications
Brand Name :
KAD
Model Number :
CDD1530
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
＄2000-＄3000 /unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500units/month
Delivery Time :
15 working days
Packaging Details :
Iron pallet+plastic film
Color :
Red/Customized
Product Name :
Electric Forklift
Load Center :
500mm
Load capacity :
1000-1500kg
Load height :
3000mm
Feature :
High Efficiency
Battery Cpacity :
24V/80Ah
Description
Product Description

1500kg 1.5ton 4000mm Full electric stacker with side wheels for transportation industry

The Full electric stacker offers unparalleled convenience and performance in warehouse operations. Its electric drive guarantees a clean, emission-free working environment, while its sleek profile enables seamless navigation through cramped aisles. Its precise control system ensures safe and efficient load handling, minimizing manual effort and maximizing productivity. Maintenance is minimal and cost-effective, translating to lower operational expenses. Furthermore, its reliable battery technology guarantees extended runtime with quick recharging, reducing downtime. The Full electric stacker is a smart choice for modern logistics, balancing efficiency, sustainability, and cost-effectiveness.

1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry

1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry

1500kg 1.5 Tons 4000mm 4 Meters Full Electric Stacker With Pedal For Transport Industry

Main Features

1. Medium intensity material handling, stacking and loading/unloading.

2. Designed for narrow aisles .

3. Only suitable for single-sided pallet use.

4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.

5. Folding pedals provide a comfortable working environment for operation.

6. Large-capacity battery ensures long time use.

Specification
Model
CDD1030
CDD1530
Load Capacity
kg
1000
1500
Lifting Height
mm
3000
3000
Load Center
mm
500
500
Fork size
mm
1100*170*50
1100*170*50
Minimum Ground Clearance
mm
30
30
Pedal Length
mm
410
410
Handler Height
mm
1490
1490
Outer Distance between Forks
mm
685
685
Inner Distance between Forks
mm
345
345
Tyre Type
Polyurethane
Polyurethane
Control Way
Handler
Handler
Speed Regulation Way
Stepless Speed Regulation
Stepless Speed Regulation
The Min.Turning Radius
mm
1450
1450
Driving Speed with Full Loads
km/h
4
4
Maximum gradient climb with full load
°
3°/5°
3°/5°
Battery
V/Ah
24V/80A
24V/80A
Driving Motor
kw
0.75
0.75
Lifting Motor
kw
2.2
2.2
Tyre Size
mm
210/80
210/80
Overall dimensions(L*W*H)
mm
1880*860*2100
1880*860*2100
Weight
kg
580
600
Reference Working Time
h
3
3
lncreased height each tonnage
mm
1600/2000/2500/3000/3500
Max height
2100/1600/1850/2100/2350

Features of lightweight electric pallet stackers

The structure of electric pallet stacker is relatively simple and flexible in maneuvering. It is suitable for operation in narrow passages and limited space, and is an important vehicle equipment for warehouses, supermarkets, loading, unloading and stacking palletized goods.
1. energy efficient: the use of electric power drive, not only can improve work efficiency, but also can save energy.
2. Flexible: the equipment is compact and can move freely in a narrow space, and has good steering ability.
3. Simple operation: the control system is simple and easy to understand, the operator only needs to carry out simple instructions to realize the control of the equipment.
4. Safe and reliable: adopting hydraulic system, it can ensure the goods lifting and placing smoothly, and has the function of preventing accidents.
