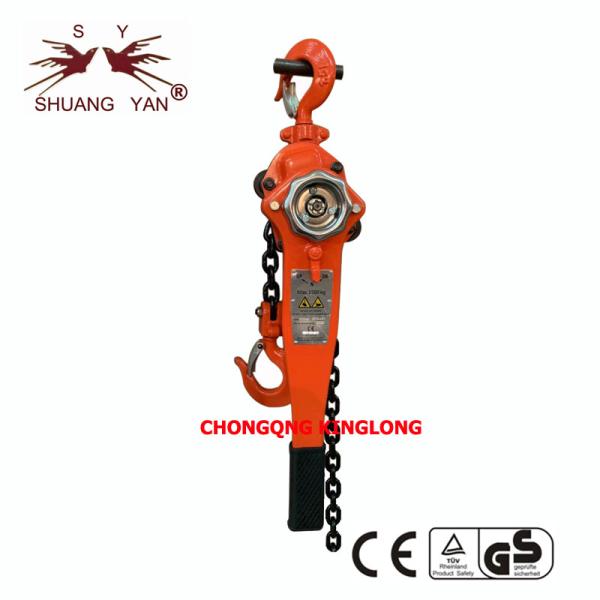

Steel 20Mn2 14.7KN 1.5M Ratchet Chain Lever Hoist
Steel 20Mn2 14.7KN 1.5M Ratchet Chain Lever Hoist
Specifications
Brand Name :
Shuangyan
Certification :
CE GS ISO
Place of Origin :
Chongqing, China (Mainland)
MOQ :
100pcs mixed models
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
15 days
Packaging Details :
Carton Box
Product name :
14.7KN European Standard CE Ratchet Chain Lever Hoist 1.5M Chain HSH-X
Usage :
Construction Hoist, Workshop, Mining, Farming, Wharf, Dock, Warehouse
Power Source :
Hand Chain
Sling Type :
Loading Chain
Maximum Lifting Weight :
14.7KN / 1.5 Ton
Maximum Lifting Height :
1.5M
Color :
Red
Chain :
G80
Chain Material :
Steel 20Mn2
Capacity :
20,000 sets per month
Warranty :
1 year
Description
14.7KN European Standard CE Ratchet Chain Lever Hoist 1.5M Chain HSH-X

Product Description

HSHX series lever hoist is the fourth generation products with newly design concept. It united all advantages of former three generations,adopted japanese newest style with "free gearing"system. More convinient and flexible operation and attractive triangle structure.

Detailed Parameters

capacity
0.75T
1.5T
2T
3T
6T
Lifting Hight
1.5
1.5
1.5
1.5
1.5
No. of load chain
1
1
1
1
2
Diameter of load chain
6
7.1
8
10
10
Packing & Delivery
Net Weight
7
10
12
18
28.5
Packing Material
polybag, carton box

Steel 20Mn2 14.7KN 1.5M Ratchet Chain Lever Hoist

Steel 20Mn2 14.7KN 1.5M Ratchet Chain Lever HoistSteel 20Mn2 14.7KN 1.5M Ratchet Chain Lever Hoist

Steel 20Mn2 14.7KN 1.5M Ratchet Chain Lever HoistSteel 20Mn2 14.7KN 1.5M Ratchet Chain Lever Hoist
Factory Introduction

The former Chongqing Chain Block factory, with more than 40 years history of manual hoist production, is now Chongqing Kinglong Machinery Co.,LTD, located in Chongqing, China. The company occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters, staying on the road side with a distance of 3km from Chongqing East Railway Station, 10km from jiulong port, and both land and water transportation is convenient.

With experiences on producing manual hoists for more than 40 years, we have possessed perfect testing devices and the advanced equipments, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines. Our main items are various models of chain blocks, lever blocks, trolley and high strength chains as well as chain assembly. As one of the biggest professional manufacturers of china blocks in China, our present production for chain blocks has reached 200,000 sets and high strength chains 1,000,000 meters in a year.

Our own brands "SHAN CHENG" "Shuangyan" for chain block, lever block and trolley are very popular in domestic and overseas because of their high quality.

The principle of Chongqing Kinglong Machinery Co.,LTD is dedicated to provide the first-class products and satisfactory services after sales.
