1 Ton 12m Lifting Pulley Block Tension Application Iron Hand Chain
1 Ton 12m Lifting Pulley Block Tension Application Iron Hand Chain
Specifications
Brand Name :
KingLong/Shancheng/Shuangyan
Model Number :
HSZ-CA
Certification :
CE
Place of Origin :
China
MOQ :
100pcs mixed models
Price :
Per quantity and payment terms
Supply Ability :
over 20000pcs/month
Delivery Time :
per quantity
Packaging Details :
carton box
Use :
Manual Lifting
Net Weight :
10.5kg
Feature :
High cost performance
Description

HSZ-CA Model

Recommendation Point: High cost performance

Details

1. HSZ-CA 1Ton*3M

2. Loading Chain 6mm, original/polish color

3. Optional: 0.5ton-20ton, 1m-12m

4. Customization: yes

SPECIFICATION

Model

HSZ-0.5

CA

HSZ-1

CA

HSZ-1.5

CA

HSZ-2

CA

HSZ-3

CA

HSZ-5

CA

HSZ-10

CA

HSZ-20

CA
Capacity Ton 0.5 1 1.5 2 3 5 10 20
lift mm 2.5 2.5 2.5 2.5 3 3 3 3
Test load Ton 0.625 1.25 1.87 2.50 3.75 6.25 12.5 25
Min.Distance Between Hooks mm 280 300 380 392 515 640 730 1000
Chain pull to lift full load N 170 340 390 340 390 420 450 450
No. of load chain 1 1 1 2 2 2 4 8
Diameter of load chain mm 6 6 8 6 8 10 10 10
Net weight kg 9.5 10 15 14 24 36 68 150
Gross weight kg 10 10.3 15.7 14.5 24.8 37.3 79 173

Packing measurement

( L X W X H)

 cm 25*18*16 25*18*16 28*24*18 27*20*16 32*23*18 41*30*21 62*50*27 80*70*36
Extra weight per meter of extra lift kg 1.7 1.7 2.3 2.5 3.7 5.3 9.7 19.4

Production Process

1 Ton 12m Lifting Pulley Block Tension Application Iron Hand Chain

Know Our Company

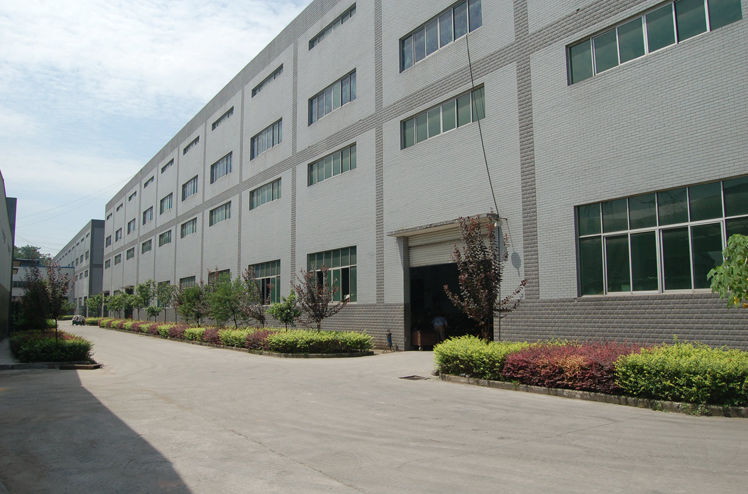

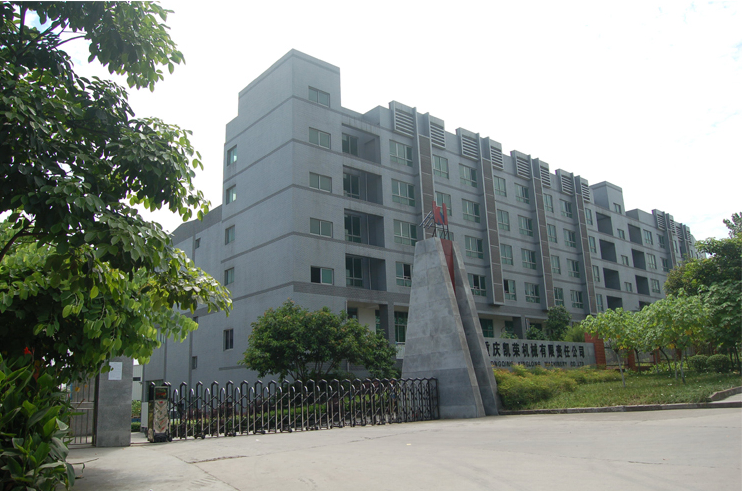

The former Chongqing Chain Block factory, with more than 40 years history of manual hoist production, is now Chongqing Kinglong Machinery Co.,LTD, located in Chongqing, China. The company occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters, staying on the road side with a distance of 3km from Chongqing West Railway Station and around 28km from Chonqging port. Both land and water transportation are convenient.

With experiences on producing manual hoists for more than 40 years, we have possessed perfect testing devices and the advanced equipment, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines. Our main items are various models of chain blocks, lever blocks, trolley and high strength chains as well as chain assembly. As one of the biggest professional manufacturers of china blocks in China, our present production for chain blocks has reached 250,000 sets and high strength chains 1,250,000 meters in a year.

Our own brands "SHAN CHENG" "Shuangyan" for chain block, lever block and trolley are very popular in domestic and overseas because of their high quality.

The principle of Chongqing Kinglong Machinery Co.,LTD is dedicated to provide the first-class products and satisfactory services after sales.

1 Ton 12m Lifting Pulley Block Tension Application Iron Hand Chain 1 Ton 12m Lifting Pulley Block Tension Application Iron Hand Chain
