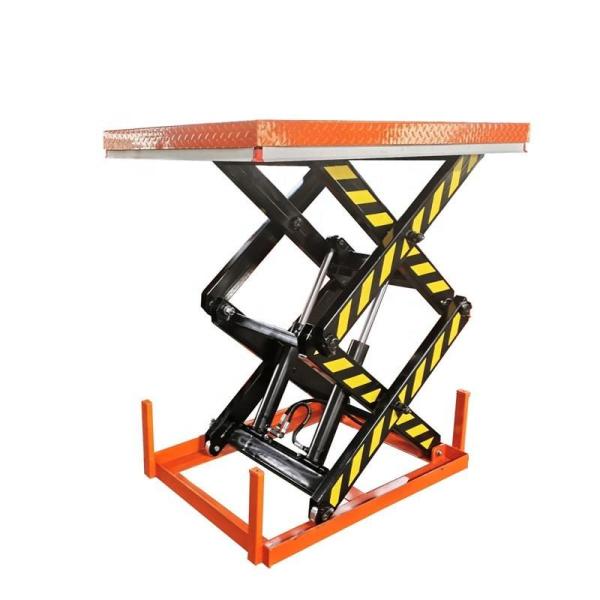

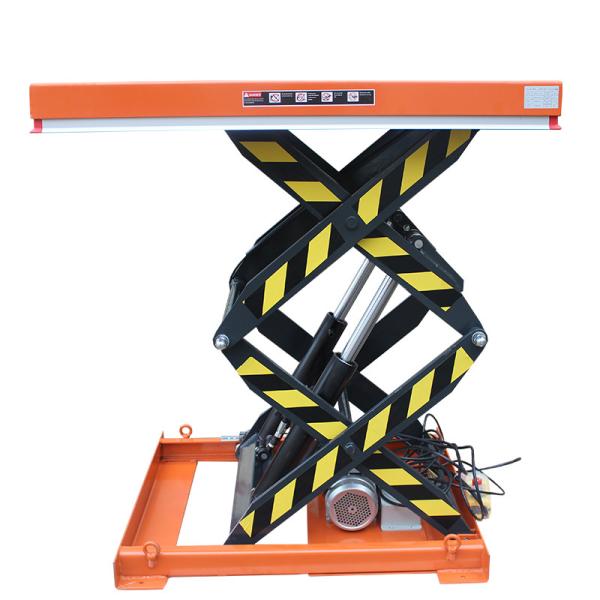

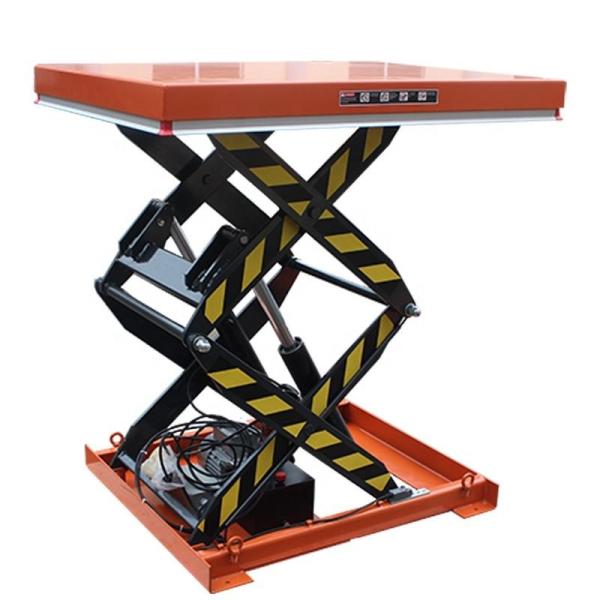

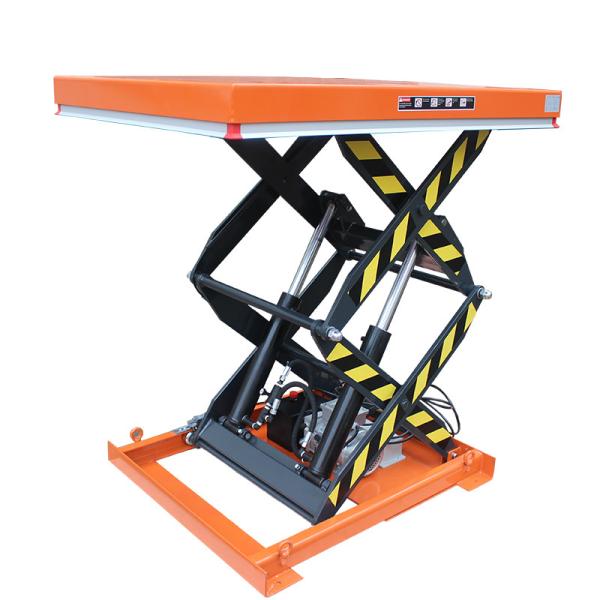

1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift
Specifications
Brand Name :
DZ
Model Number :
DZS1-2.5
Certification :
CE
Place of Origin :
Shanghai,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Product Name :
Scissor Lift Table
Loading Capacity :
1000KG
Lifting Height :
2.5m
Lifting Speed :
3-4m/min
Platform Size :
2m x 1.5m
Min Height :
0.4m
Control Voltage :
24V
Input Voltage :
220/240/380/415V
Lift Drive / Actuation :
Hydraulic
Warranty :
1 year
Description

1000kg Electric Hydraulic Scissor Lift Table Heavy Duty Lift Platform

Standard Features:

  • Mechanical props for safe and secure maintenance
  • Press to run control panel*3m with Emergency stop
  • Manual lower down valve when power off
  • 3-4m/min. Lifting speed, down speed adjustable
  • 5 year warranty on main structural components
  • 1 year warranty electrical components
  • Aluminum profile safety trip bars
  • 24V DC safety control circuit
  • Adjustable limit switches
  • Tested to+25% overload
  • Safety backup switch
  • Hose burst valves

Description:

Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit. In many cases scissor lift table represent the best solution for the manual load handling, in full observance of the European standards with regards to functioning, cost saving, safety and health of operators during work.

Specifications:

Model Capacity Platform Size Lifting Height Motor Power Min.Height Power Supply(V)
DZS1-2 1000KG 2000X1500MM 2000MM 3KW 400MM 220/240/380/415
DZS1-2.5 1000KG 2000X1500MM 2500MM 3KW 400MM 220/240/380/415
DZS1-3 1000KG 2000X1500MM 3000MM 3KW 520MM 220/240/380/415
DZS1-3.5 1000KG 2000X1500MM 3500MM 3KW 520MM 220/240/380/415
DZS1-4 1000KG 2000X1500MM 4000MM 3KW 630MM 220/240/380/415
DZS1-4.5 1000KG 2000X1500MM 4500MM 3KW 630MM 220/240/380/415
DZS1-5 1000KG 2000X1500MM 5000MM 3KW 630MM 220/240/380/415
DZS2-2 2000KG 2500X1500MM 2000MM 4KW 520MM 220/240/380/415
DZS2-2.5 2000KG 2500X1500MM 2500MM 4KW 520MM 220/240/380/415
DZS2-3 2000KG 2500X1500MM 3000MM 4KW 520MM 220/240/380/415
DZS2-3.5 2000KG 2500X1500MM 3500MM 4KW 680MM 220/240/380/415
DZS2-4 2000KG 2500X1500MM 4000MM 4KW 680MM 220/240/380/415
DZS2-4.5 2000KG 2500X1500MM 4500MM 4KW 680MM 220/240/380/415
DZS2-5 2000KG 2500X1500MM 5000MM 4KW 830MM 220/240/380/415
DZS3-2 3000KG 3000X2000MM 2000MM 4KW 640MM 220/240/380/415
DZS3-2.5 3000KG 3000X2000MM 2500MM 4KW 640MM 220/240/380/415
DZS3-3 3000KG 3000X2000MM 3000MM 4KW 640MM 220/240/380/415
DZS3-3.5 3000KG 3000X2000MM 3500MM 4KW 640MM 220/240/380/415
DZS3-4 3000KG 3000X2000MM 4000MM 4KW 840MM 220/240/380/415
DZS3-4.5 3000KG 3000X2000MM 4500MM 4KW 840MM 220/240/380/415
DZS3-5 3000KG 3000X2000MM 5000MM 4KW 840MM 220/240/380/415
DZS4-2 4000KG 4000X2000MM 2000MM 5.5KW 480MM 220/240/380/415
DZS4-2.5 4000KG 4000X2000MM 2500MM 5.5KW 480MM 220/240/380/415
DZS4-3 4000KG 4000X2000MM 3000MM 5.5KW 680MM 220/240/380/415
DZS4-3.5 4000KG 4000X2000MM 3500MM 5.5KW 680MM 220/240/380/415
DZS4-4 4000KG 4000X2000MM 4000MM 5.5KW 680MM 220/240/380/415

Application:

Scissor Lift tables are mainly used for warehouse goods lifting between different levels of floors. Both in door and outdoor are available.

1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift1000kgs Hydraulic Scissor Lift Table Orange Heavy Duty Scissor Lift

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
