Specifications
Brand Name :
DZ
Model Number :
DZT-12
Place of Origin :
Shanghai,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Product Name :
Towable Boom Lift
Load Capacity :
200KG
Platform Size :
0.9m x 0.7m
Lifting Height :
12m
Overall Size :
5.8×1.8×2.2m
Net Weight :
1800Kg
Working Radius :
7m
Usage :
Outdoor Street,Garden,Airport,etc
Description

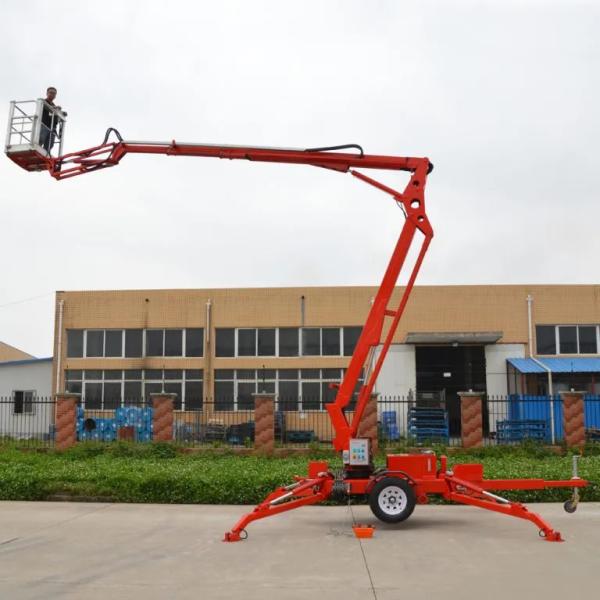

12m Height Boom Lift One Man Trailer Boom Lift For Aerial Work


Standard features:

  • Multiple job site application,indoors and outdoors
  • 360° continuous bottom rotation and 160° rotating platform
  • Switchable ground and platform controls
  • Hydraulic outriggers and outrigger interlocks
  • Hands prevent folder
  • Self-leveling protection
  • Flashing Beacon
  • Emergency lowering system
  • 360°continuous turntable rotation
  • Protective covers for oil-tank,emergency controls
  • Power to platform (Optional)
  • Customize platform size and load capacity
  • Multiple power supply options: DC / AC / gasoline / diesel, or dual power supply

Description:

Trailer boom lift, also named as towable boom lift or trailer mounted boom lifts, provides economical and practical aerial solutions. It offers extremely safe and effective up, down and cross over capabilities with compact and light apparatus. Meanwhile, it has faster moving speed than traditional boom lifts with its robust tow bar.For easier short distance transportation and moving, option of battery or engine assist easy moving function is provided. One person could control moving or turning of the lift easily. The hydraulic actuated auto leveling outriggers help to fit for different site conditions such as uneven ground or on slope roads.

Specifications:

MODEL TYPE DZT-10 DZT-12 DZT-14 DZT-16 DZT-18 DZT-20
LIFTING HEIGHT 10M 12M 14M 16M 18M 20M
WORKING HEIGHT 12M 14M 16M 18M 20M 22M
LOAD CAPACITY 200KG 200KG 200KG 200KG 200KG 200KG
PLATFORM SIZE 0.9*0.7M 0.9*0.7M 0.9*0.7M 0.9*0.7M 0.9*0.7M 0.9*0.7M
WORKING RADIUS 4.5 M 7 M 7 M 8 M 8 M
NET WEIGHT 1600 KG 1800 KG 2500 KG 2800 KG 3800 KG 4200KG
OVERALL SIZE( L*W*H) M 5.14×1.6×1.9 5.8×1.8×2.2 6.6×1.7×2.13 7×1.8×2.3 7.2×1.8×2.3
WIND RESISTANCE LEVEL 5 5 5 5 5 5
UNITS FOR 40GP 3 UNITS 3 UNITS 3 UNITS 3 UNITS 2 UNITS 2 UNITS

Applications:

Trailer boom lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into tasks, such as aerial maintenance, cleaning, fixing and so on.

12m Trailer Mounted Man Lift 200KGs Tow Behind Bucket Lift For Airport12m Trailer Mounted Man Lift 200KGs Tow Behind Bucket Lift For Airport12m Trailer Mounted Man Lift 200KGs Tow Behind Bucket Lift For Airport12m Trailer Mounted Man Lift 200KGs Tow Behind Bucket Lift For Airport

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
