Hydraulic Vertical Electric Wheelchair Lift Indoor Outdoor For Disabled
Standard features:
Description:

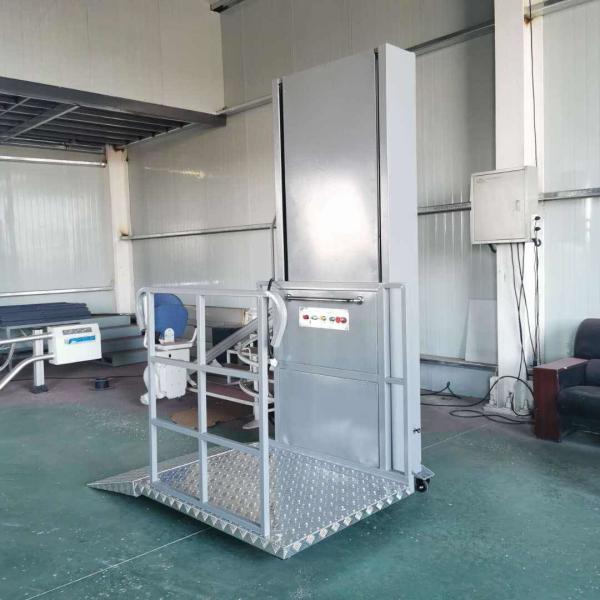

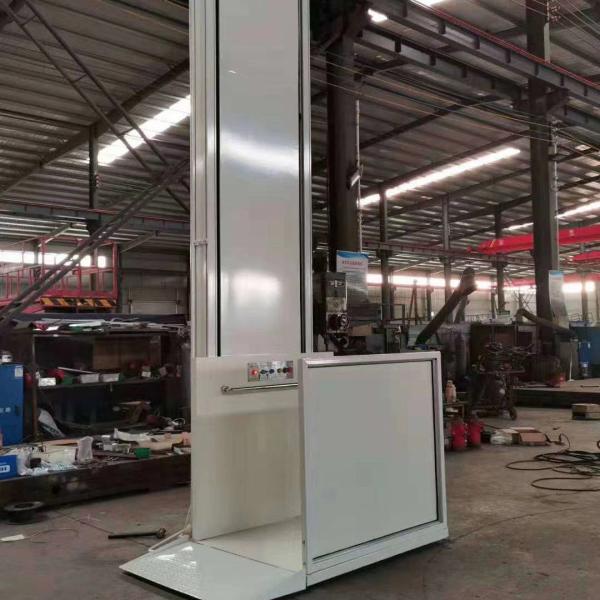

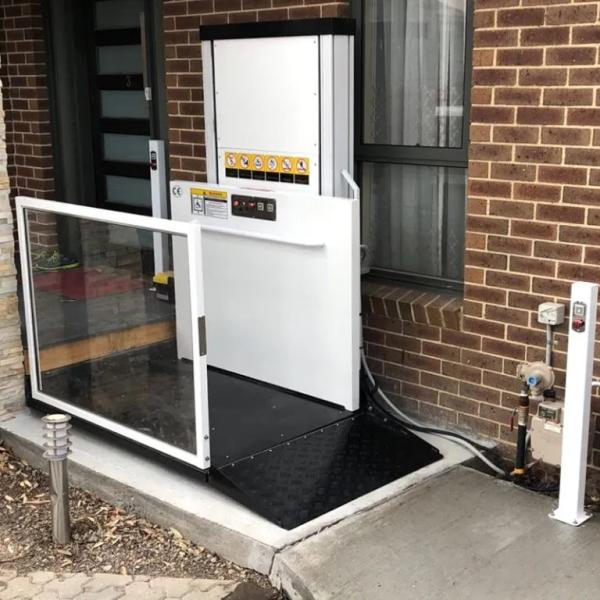

Vertical Wheelchair Lift Platform is specially design and manufacture for the disabled to go upstairs and downstairs. Installed in subway entrances and exits,underground sidewalks, pedestrian overpasses, railway station entrances and exits, community building corridors, building corridors and other public places and family residences.
Specifications:
MODEL | CAPACITY | PLATFORM SIZE | LIFTING HEIGHT | MOTOR POWER | MIN. HEIGHT | POWER SUPPLY (V) |
DZW-1 | 250KG | 1300X900MM | 1000MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-1.5 | 250KG | 1300X900MM | 1500MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-2 | 250KG | 1300X900MM | 2000MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-2.5 | 250KG | 1300X900MM | 2500MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-3 | 250KG | 1300X900MM | 3000MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-3.5 | 250KG | 1300X900MM | 3500MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-4 | 250KG | 1300X900MM | 4000MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-4.5 | 250KG | 1300X900MM | 4500MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-5 | 250KG | 1300X900MM | 5000MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-5.5 | 250KG | 1300X900MM | 5500MM | 1.5KW | 80~100MM | 220/240/380/415 |
DZW-6 | 250KG | 1300X900MM | 6000MM | 2.2KW | 80~100MM | 220/240/380/415 |
DZW-6.5 | 250KG | 1300X900MM | 6500MM | 2.2KW | 80~100MM | 220/240/380/415 |
DZW-7 | 250KG | 1300X900MM | 7000MM | 2.2KW | 80~100MM | 220/240/380/415 |
DZW-7.5 | 250KG | 1300X900MM | 7500MM | 2.2KW | 80~100MM | 220/240/380/415 |
DZW-8 | 250KG | 1300X900MM | 8000MM | 2.2KW | 80~100MM | 220/240/380/415 |
DZW-8.5 | 250KG | 1300X900MM | 8500MM | 2.2KW | 80~100MM | 220/240/380/415 |
DZW-9 | 250KG | 1300X900MM | 9000MM | 2.2KW | 80~100MM | 220/240/380/415 |
DZW-9.5 | 250KG | 1300X900MM | 9500MM | 2.2KW | 80~100MM | 220/240/380/415 |
DZW-10 | 250KG | 1300X900MM | 10000MM | 2.2KW | 80~100MM | 220/240/380/415 |
Applications:
Vertical Platform Lifts are mainly used for lifting people with disability, the old and the kids between different levels of floors. Both in door and outdoor are available.
FAQ:
1. Can you customize product ?
Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.
2. How can you ensure your quality?
Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.
3. What is your delivery & after-sales service?
The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.
4.How long will it take you to ship the goods?
It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.
5.What kinds of payment you accept?
We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
