Specifications
Brand Name :
DZ
Model Number :
DZ 0.2-14
Certification :
CE
Place of Origin :
Shanghai,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Product Name :
Double Mast Lift Platform
Material :
Aluminum Alloy
Rated Capacity :
200KG
Platform Size :
1.8×0.7m
Lifting Height :
13.6m
Lifting Speed :
3-5m/min
Product Size :
1.88×0.81×2.68m
Product Weight :
892KG
Power Supply :
220/240/380/415V
Power Source :
Electric
Description

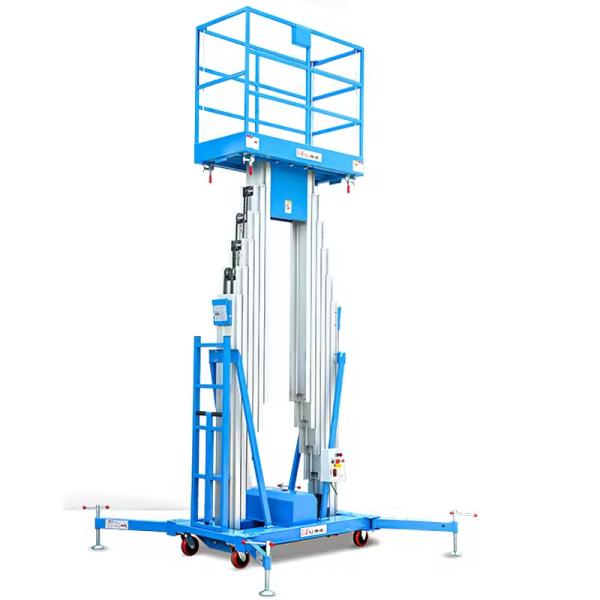

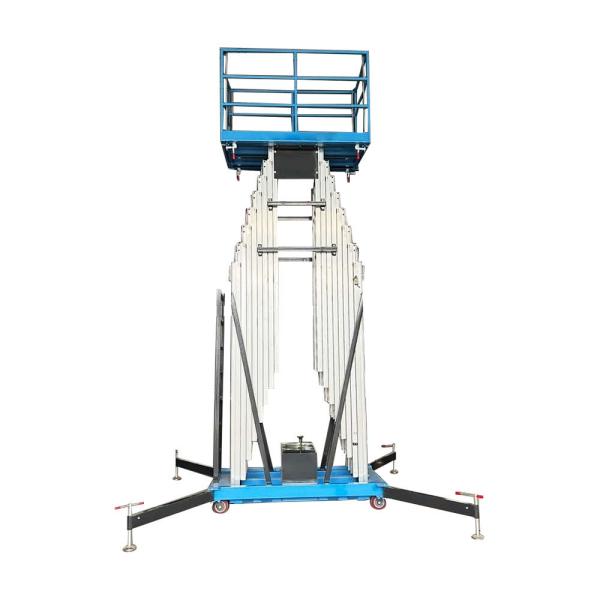

14m 200kg Aluminum Alloy Double Mast Lift Aerial Work Platform


Standard features:

  • Light weight, good flexibility,suitable for 1-2 people operate.
  • Special-made guiding wheel device between columns,Lift steadily.
  • Compact structure, small size during transport, can enter narrow spaces to work.
  • Leg support structure double protection,working safe.
  • No noise and air pollution, not need installation, easy to maintenance.
  • Can be put down by hand or electric power according to install site requirements.

Description:

Aluminum Mast Lift adopts high quality aluminum alloy to reduce the net weight of the body. In this way, aluminum alloy aerial work man lift platform will be much more easier for operator to move around. Aluminum mast lift are AC or Battery powered and manually moved. Customer could also chose to add battery power for easy moving, so one person could move and turn the lift freely.

Widely used at factory, banks, hotels, restaurants, stations, airports, theaters, construction companies. The vertical mast lifts help to save more labor and time compared with ladders or scaffold, above all, they are more safe.

Specifications:

MODEL LIFTING HEIGHT CAPACITY PLATFORM SIZE (W*D) POWER SUPPLY (V) AC TYPE WEIGHT OVERALL DIMENSION
DZ 0.1-6 6.2M 150KG 670*660 220/240/380/415 320KG 1240*740*1990
DZ 0.1-8 8M 150KG 670*660 220/240/380/415 345KG 1360*740*1990
DZ 0.1-9 9.2M 150KG 670*660 220/240/380/415 365KG 1400*740*1990
DZ 0.1-10 10.4M 136KG 670*660 220/240/380/415 385KG 1420*740*1990
DZ 0.1-12 12M 120KG 670*660 220/240/380/415 460KG 1450*810*2680
DZ 0.2-8 7.8M 250KG 1450*700 220/240/380/415 585KG 1450*810*1990
DZ 0.2-9 9.3M 250KG 1450*700 220/240/380/415 630KG 1450*810*1990
DZ 0.2-10 10.6M 250KG 1450*700 220/240/380/415 715KG 1450*810*1990
DZ 0.2-12 12.2M 200KG 1450*700 220/240/380/415 750KG 1450*810*1990
DZ 0.2-14 13.6M 200KG 1800*700 220/240/380/415 892KG 1880*810*2680
DZ 0.2-16 16M 150KG 1800*700 220/240/380/415 996KG 1880*810*2680

Applications:

Aluminum alloy lifts are variously used in municipal engineerings, gardens, hotels, venues, supermarket, railways, factories, shopping centers, stations, airports, workshop, hospitals, warehouses for maintenance, cleaning, etc.

14m 200kg Aerial Work Platforms Aluminum Alloy Double Mast Lift14m 200kg Aerial Work Platforms Aluminum Alloy Double Mast Lift14m 200kg Aerial Work Platforms Aluminum Alloy Double Mast Lift14m 200kg Aerial Work Platforms Aluminum Alloy Double Mast Lift

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
