Specifications
Brand Name :
DZ
Model Number :
DZ 0.2-14
Certification :
CE
Place of Origin :
Shanghai,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Product Name :
Double Mast Lift Platform
Material :
Aluminum Alloy
Rated Capacity :
200KG
Platform Size :
1.8×0.7m
Lifting Height :
14m
Lifting Speed :
3-5m/min
Product Size :
1.88×0.81×2.68m
Product Weight :
892KG
Power Supply :
220/240/380/415V
Power Source :
Electric
Description

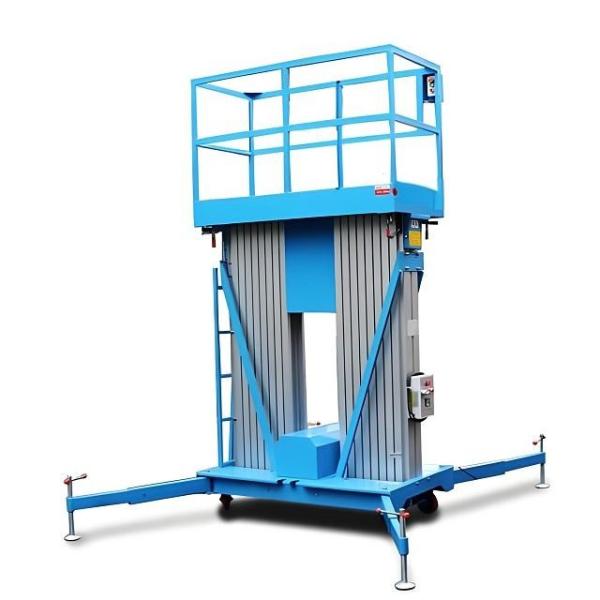

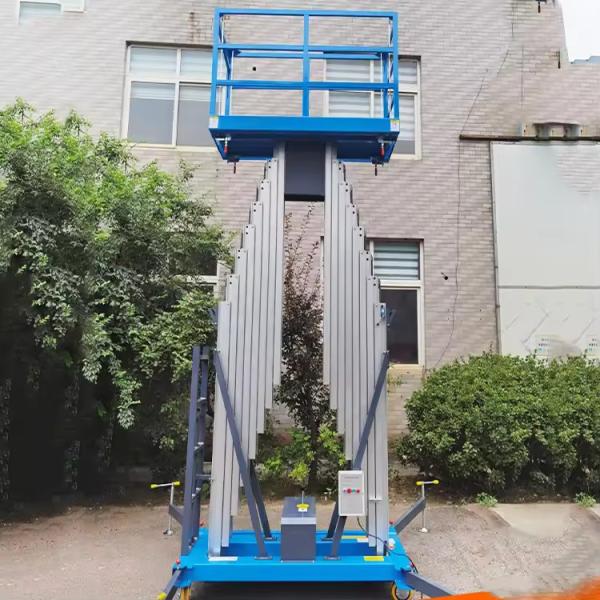

Double Mast Aluminum Lifts 14m Hydraulic Aluminum Alloy Lift Platform


Standard features:

  • Moving by manually
  • Lifting by AC(without battery) power or DC(with battery) power
  • Four Outrigger Interlock function
  • Deadman switch function, high safety when operation
  • AC power on platform for electric tools usage
  • Cylinder Holding Valve, anti-explosion function
  • Standard forklift hole for easy loading
  • Equipped with side wheels and handle for easy loading to truck by 1-2 person

Description:

Aluminum mast lift is mainly used for the installation and maintenance of hotels, modern factories, lobbies, restaurants, stations, exhibition halls, shopping malls and other spaces, and is a good helper for equipment maintenance and paint decoration; it can pass through ordinary doors and elevators easily, with low energy consumption, no pollution, and no damage to the ground.It can be easily pushed to the designated place with beautiful structure, compact body, light weight, safe and reliable.

Specifications:

MODEL LIFTING HEIGHT CAPACITY PLATFORM SIZE (W*D) POWER SUPPLY (V) AC TYPE WEIGHT OVERALL DIMENSION
DZ 0.1-6 6.2M 150KG 670*660 220/240/380/415 320KG 1240*740*1990
DZ 0.1-8 8M 150KG 670*660 220/240/380/415 345KG 1360*740*1990
DZ 0.1-9 9.2M 150KG 670*660 220/240/380/415 365KG 1400*740*1990
DZ 0.1-10 10.4M 136KG 670*660 220/240/380/415 385KG 1420*740*1990
DZ 0.1-12 12M 120KG 670*660 220/240/380/415 460KG 1450*810*2680
DZ 0.2-8 7.8M 250KG 1450*700 220/240/380/415 585KG 1450*810*1990
DZ 0.2-9 9.3M 250KG 1450*700 220/240/380/415 630KG 1450*810*1990
DZ 0.2-10 10.6M 250KG 1450*700 220/240/380/415 715KG 1450*810*1990
DZ 0.2-12 12.2M 200KG 1450*700 220/240/380/415 750KG 1450*810*1990
DZ 0.2-14 13.6M 200KG 1800*700 220/240/380/415 892KG 1880*810*2680
DZ 0.2-16 16M 150KG 1800*700 220/240/380/415 996KG 1880*810*2680

Applications:

Aluminum alloy lifts are variously used in municipal engineerings, gardens, hotels, venues, supermarket, railways, factories, shopping centers, stations, airports, workshop, hospitals, warehouses for maintenance, cleaning, etc.

Double Mast Aluminum Lifts 14m Hydraulic Aluminum Alloy Lift PlatformDouble Mast Aluminum Lifts 14m Hydraulic Aluminum Alloy Lift PlatformDouble Mast Aluminum Lifts 14m Hydraulic Aluminum Alloy Lift PlatformDouble Mast Aluminum Lifts 14m Hydraulic Aluminum Alloy Lift Platform

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
