220V AC Smart Lighting System 4 Channels 0-10V Dimmer Controller

Description of 0-10V Dimmer Module:

> Supports 120 and 220 to 240 Volt, 50/60 Hz applications
> Allows switching of lighting and exhaust fans
> Includes an override input
> 0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers
> Incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, fluorescent, motors
> DC-NET Power Usage: 2.5 Watts (0.1 Amps) @ 24 Volts DC

Specification of 0-10V Dimmer Module:

0-10V Dimmer Module Features:

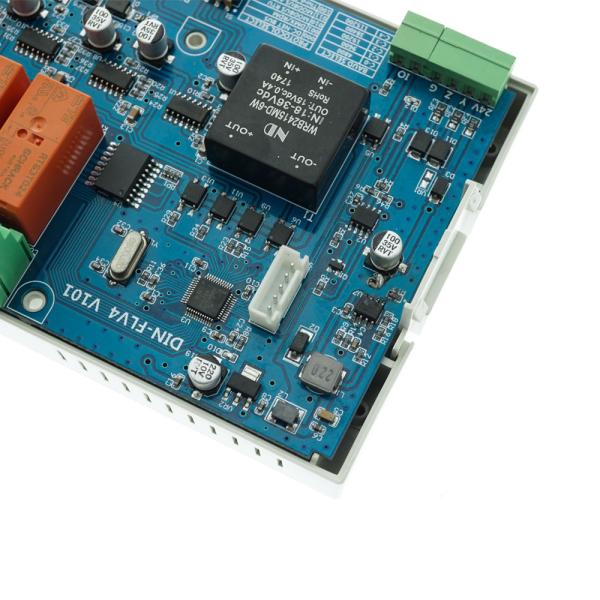

The DIN-FLV4 is a 4-channel lighting control module designed to dim 0-10 Volt drivers and ballasts. A single model supports both 120 and 220 to 240 Volt applications. The DIN-FLV4 may also be used for switching of non-dimmable lighting loads up to 5 amps[1] and 1/2 HP motors.

0-10V Dimmer Module Package:

Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement( Order > 1000PCS)

FAQ:

1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient

3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
