50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free
Specifications
Brand Name :
Okystar
Model Number :
IQ-DMPHP
Certification :
ENEC、RCM、CCC、SAA、 SUD-TUV
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1$ per USD
Packaging Details :
Carton package
Input Voltage :
200-240VAC
Harmonic Current :
<10%
Working Temperature :
0-60℃
Power Factor :
>0.95
Storage temperature :
-40~80℃
Environmental Protection :
ROHS
Life span :
50000H
Description

50W Synchronous Dimming Flicker Free High Power Dimmable LED Driver

Pruduction Description:

1. Input Voltage 200-240VAC, withstand 380VAC high voltage short-time shock.
2. Conform to ERP requirement, stand-by consumption <0.5W; Turn-on delay time <0.5S.
3. Output current could adjusted by end user through DIP switch.​

4. With SCP/OCP/OVP/OTP.
5. Achieve flicker free dimming and minimum brightness could close the driver.
6. Achieve dimming synchronization effect incondition of any combination of
lamps (closed or open).
7. 5 years warranty.

Produce Specification​:

1. Built in correction of the output current ± 1% accuracy.
2. High efficiency 89%, low THD < 10%.
3. DALI, 1-10V&10VPWM dimmable.
4. Passed certification: ENEC,RCM,CCC,SAA,SUD-TUV.
5. Dali member.

Produce Features:

Ordinary Dimmable Mode
z=d:DALI/z=M:1-10V

Electromagnetic Emission
EN50015 Gb17743 En61000-3-3
EN61000-3-2(class C)

Safety Range
EN61347-1/2-13 GB19510-1/2-14 EN62384
EN62386-101 102 207

Protection
SCP/OCP/OVP/OTP

Life span
50000H

Hi-pot

I/P-O/P :3750VAC IP-FG :1500VAC

Electromagnetic Interference

EN61547 GB17625 EN61000-4-2,3,4,5,6,8,11

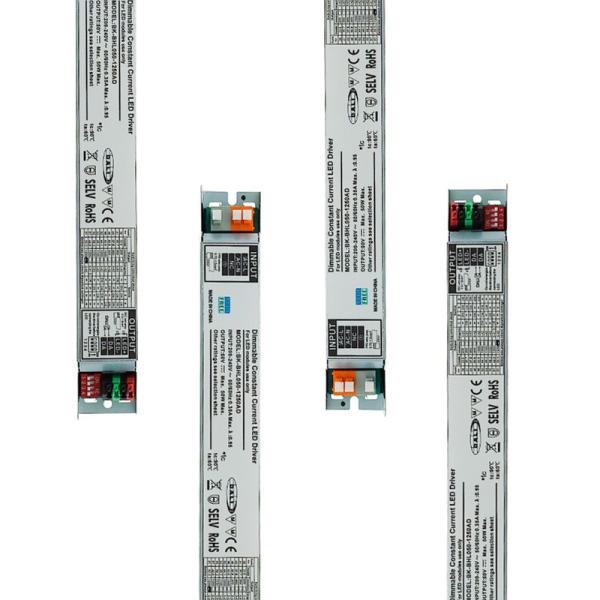

product picture:

50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free 50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free

Package:

50W 50mA Lighting Control Module , High Power Dali Dimmable LED Driver 200-240VAC Flicker Free

FAQ:

1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient

3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
