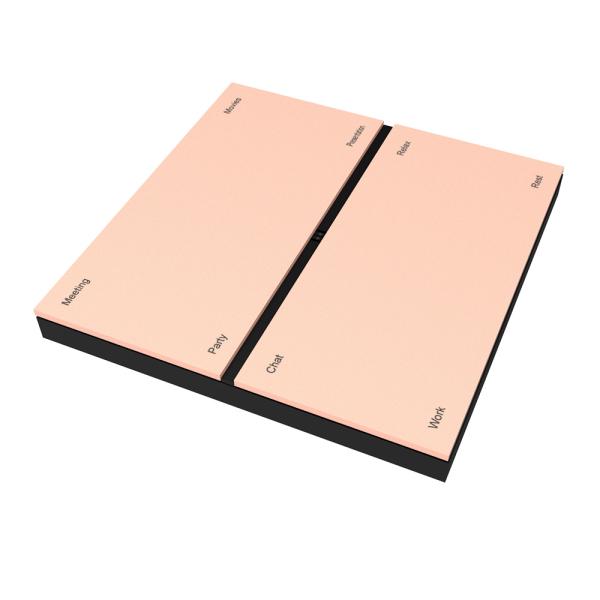

Programmable Smart Buttonn Panel , 8 Key Smart Home Touch Panel For LED Lights
Programmable Smart Buttonn Panel , 8 Key Smart Home Touch Panel For LED Lights
Specifications
Brand Name :
Okystar
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
≥1000pcs per day
Delivery Time :
3-7 work days
Packaging Details :
carton package
Working voltage :
24VDC±10%
max power consumption :
1.6w
static power consumption :
0.5W
input key :
8 keys
Appearance color :
champagne gold, other colors can be customized
LED indicator :
8 key to activate white LED light
Key type :
reset touch button, with vibration effect
backlight :
with infrared induction backlight
bus interface :
1× bus
address setting :
1 × address dial, address 1-63 can be set
Description

8-key Programmable Smart buttonn Panel For LED Lights Home Automation

Description of Smart Switch Panel

installed with standard-86 bottom box, supports seamless connection, matched
with a variety of materials and colors panel, provides 8 keys each panel, Inductive backlight,
reset touch button, with vibration effect, mature structure, stable performance, adopts(aluminium alloy) oxidation process.

Features

hole size of bottom box (length×width×depth)

86mmx86mmx45mm

Working temperature/humidity

 -0 -- 45℃/20% -- 93%RH

storage temperature/humidity

 -40℃ -- 55℃/10% -- 93%RH
external size (length×width×height) 86mm×86mm×42mm

installation mode

 standard 86 bottom box installation

weight

 126g/PCS

Programmable Smart Buttonn Panel , 8 Key Smart Home Touch Panel For LED Lights

How to make the module learn the code

1. Bus port: A1, B1, 24V, GND

2, long press 1 and 8 keys at the same time (about 5-10 seconds), all keys of panel light will flash, and then click the button you want to modify. And this button flashes, and then input code command in the software , click to send till successfully cover, the panel will automatically learn this command.

3. Code will enter hexadecimal when you click HEX.

4. If you want to exit the learning mode, when all the buttons on the panel flash, just wait 10 seconds, then automatically cancel flashing and exit learning mode.
