PIR Security Motion Sensor Passive Infrared For Smart Lighting Control System
PIR Security Motion Sensor Passive Infrared For Smart Lighting Control System
PIR Security Motion Sensor Passive Infrared For Smart Lighting Control System
PIR Security Motion Sensor Passive Infrared For Smart Lighting Control System
Specifications
Brand Name :
Okystar
Model Number :
IQ-SM02
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
3-7 Work days
Packaging Details :
Carton Package
Walk-through Mode :
Room for momentarily occupied, e.g. hallway
Sensor Technology :
Passive Infrared
Detection Diameter :
8 m (Installation at 2.4 m above the ground)
Horizon Detection Degree :
120 °
Height :
56 mm (2.2 in )
Diameter :
110 mm (4.3 in)
Housing Material :
High-impact ABS
Weight :
300g
Delayed-Off Time Adjustment :
30 sec -30 min (Clockwise)
Description

24V DC Wall or Ceiling Mount PIR Motion Sensor

For Smart Lighting Control System

PIR Sensor Description

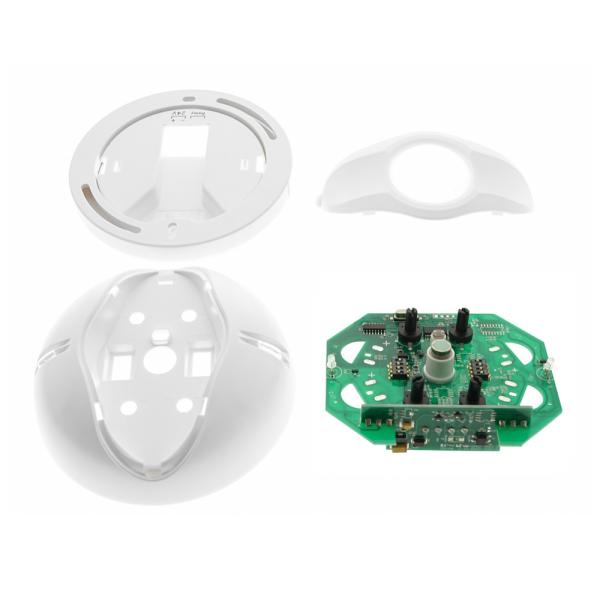

IQ-SM02 is a Passive Infrared motion sensor with Okystar's proprietary 8-element pyros and multi-segment lens array. Mounted at a height of 2.4m,this sensor provides full circular 8m diameter detection for minor motion, e.g.hand movement of people in that area. IQ-SM02 can be surface mounted or flush mounted for an attractive, un-obstructive appearance.

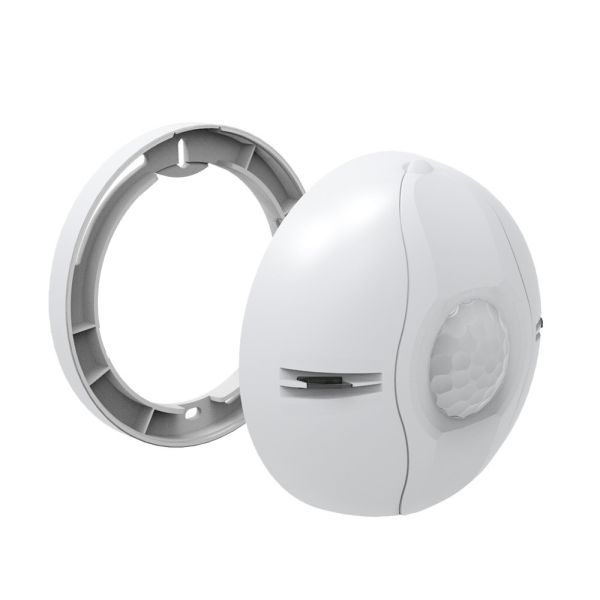

Mounting Choice
The sensor may be mounted either in a drop- ceiling panel, or on a solid ceiling. In a drop- ceiling panel, two metal
springs serve to retain the sensor in the panel. On a solid ceiling, the sensor is mounted on a base ring (supplied with
the sensor).The base ring is fastened to the ceiling by means of three screws.

PIR Sensor Features

·Passive Infrared Sensor
·Wall or ceiling mount occupancy sensor
·Surface mounted or flush mounted

PIR Sensor Parameter

Temperature

-22° to 122°F (-30° to 50°C)

Humidity
0% to 90% RH (non-condensing)

RF-Immunity
20 V/m 10-1000 Mhz
10 V/m 1- 2 GHz

PIR Security Motion Sensor Passive Infrared For Smart Lighting Control System

Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic
hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss
extral)

FAQ:

1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient

3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
