Energy Saving Lighting Control Module 4 DC-NET Bus Extend Ports Distribution Hub
Energy Saving Lighting Control Module 4 DC-NET Bus Extend Ports Distribution Hub
Energy Saving Lighting Control Module 4 DC-NET Bus Extend Ports Distribution Hub
Energy Saving Lighting Control Module 4 DC-NET Bus Extend Ports Distribution Hub
Specifications
Brand Name :
OKYSTAR
Model Number :
DIN-HUB
Certification :
ce, rosh
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
≥1000
Delivery Time :
3-7 days
Packaging Details :
Carton package
Maximum Load :
60 Watts (2.5 Amps @ 24 Volts DC)
NET A – D :
(4) 4-pin 3.81mm detachable terminal block
Temperature :
32° to 104°F (0° to 40°C)
Humidity :
10% to 90% RH (non-condensing)
Heat Dissipation :
2 BTU/hr
Description

4 DC-NET Bus Extend Ports Distribution Hub For Smart Lighting System

Product Characteristics
>2 DC-NET BUS Master Ports
>4 DC-NET Bus Extend Ports
>Configurable power distribution
>No programming required
>The baud rate of each DC-NET bus port can be set
>message sequence processing without losing data on each bus port
>8M wide DIN rail mounting

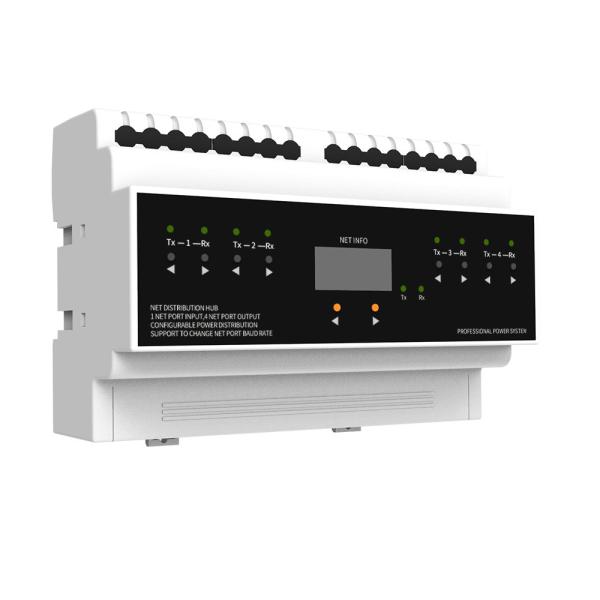

The DIN-HUB is a DIN rail-mounted DC-NET hub designed to facilitate the configuration of large DC-NET networks. DIN rail mounting enables modular installation alongside Okystar DIN Rail lighting and automation control modules and other third-party DIN rail mountable devices.

NET HOST
(2) 4-pin 3.81mm detachable terminal blocks, paralleled; Connects to Master NET port of
DIN-CP1 or other control system, and loops thru to additional DIN Rail DC-NET devices

NET PWR
INPUT 24VDC
(1) 3-pin 3.81mm detachable terminal blocks;DC-NET power selection connectors for all
segment; Connect to external DC-NETpower supplies, or to “host” power source via jumpers, to power DC-NET devices connected to the NET A-D ports

NET INFO
(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting NET HOST Port
Baud; digits also display Data length or Other information

NET HOST, Tx
(1 Red) Indicates DC-NET bus Data Send activity at either NET HOST port

Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic
hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss
extral)

FAQ:

1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient

3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
