Specifications
Brand Name :
SHWellShow
Model Number :
led cob light
Certification :
CE & RoHS
Place of Origin :
China
MOQ :
one meter
Price :
USD0.8~6.5 Per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000meter per month
Delivery Time :
5-8 work days
Packaging Details :
Cartons; 500meters per carton; 5meter per Roll
Name :
led cob strip light
Voltage :
12V/24V Customized
Power :
10W 8W Customized
IP Rate :
IP20 IP65 IP67 Customized
PCB Width :
2.7mm 3mm 4mm 6mm 8mm Customized
MOQ :
No
Led light source :
COB,Original CITIZEN COB Chip
Description

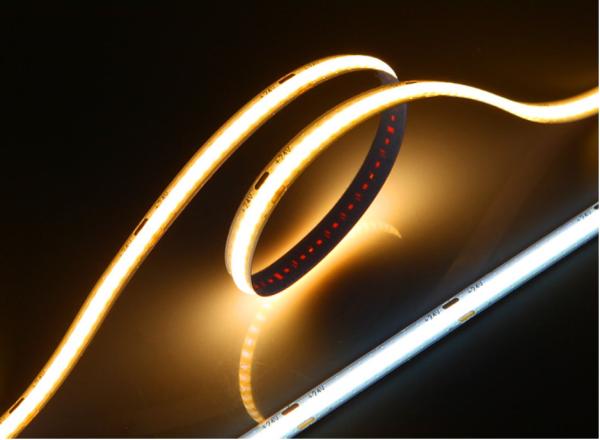

DC24V 480led Strip Light 10W COB Series LED Tape Light High CRI 12V / 24V IP20

1, the led COB light strip High-brightness light bar, the brightness can be twice that of ordinary light bar

2, the led COB lights strip Using 2 oz thick PCB , large oval pad, high quality copper foil at solder joints

3, the led cob lighting Using high-quality double-sided tape 3M LSE300, can achieve long-lasting

4, Uniform & not dazzling,This light bar has a delicate light, no spot, soft light, not dazzling and not hurting the eyes, it can display high-quality
lighting effects

What's the COB ?

COB refers to chip on board technology, which is the installation of cobb LED chips directly on the FPCB. On-board chip led bar, enhance heat dissipation, improve led glare effect. As a result, the COB led strip has the characteristics of high density and soft and even light. COB LED light strips for bedrooms are a great lighting solution to add a bright or colorful ambiance.

COB LED lamp belt can be made into any color (2700K warm white, 3000K soft white, 4000K natural white, 6000K daylight, red, green, blue, yellow, purple, pink, CCT adjustable color temperature, color-changing RGB, RGBW, RGBCCT, dream color searchable RGB).

Product Name LED COB Light
Volgate 24V/12V
Power 10W/Meter Customized
LED QTY 480led/Meter Customized
CCT 2700~6500K Customized
CRI 90
Lumen/W 70lm/W
Lumen/Meter 700lm/meter
Length 5M (Can be customized)
Led Brand Cree/lumileds /Osram Customized
PCB Width 8mm Customized
Beam Angle(°)FWHM 120°
Cutting Size 50mm
Definition of line sequence Red=+12V Black=-12V
Outgoing lines way Straight line & Side line & Bare & Connector
Control Mode Single color temperature
Maximum serial number Single power supply 5 meters in serial
Material Milky Silicone clear sleeve
Oper.Temp. “-25℃~+50℃
IP Rating IP20 IP65 IP67 Customized
IK Rating IK08
Certification CE & RoHS




Certification :

The led neon lights we have been doing the CE & RoHS Certification already as the below show.

Shanghai Wellshow Opto Electronics Co.,Ltd., founded in 2013 in China, relying on Dongguan Lan Kaixin as the production base;With the industry's advanced manufacturing equipment and the first through the ISO9001 quality management system certification;More than 40products have won national invention patents, utility model and appearance patents, products through CCC, CQC, CE, RoHS and other national lamps and lanterns inspection certification;Focusing on LED technology application innovation, industrial design innovation, business model innovation, is LED outdoor lighting, LED indoor lighting to soft light strip, neon light strip,linelight, LED module, intelligent lighting, commercial lighting and other products integrated application solutions provider.

10W High CRI Cob Strip Lighting 8W 12V IP20 DC 24V

10W High CRI Cob Strip Lighting 8W 12V IP20 DC 24V

FAQ

Q1. Are you a factory or trading company? A: We are a factory, we provide ODM& OEM services.

Q2. Do you have any MOQ limit for led
light order? A: Low MOQ, 1pc for sample checking is available

Q3. What about the lead time? A:Delivery time for sample:3-5days
after get your samples request and samples charge. Delivery time for mass production: 10-18days after order confirmed after
receiving buyer's deposit

Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx
or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q6: How to deal with the faulty? A: Firstly, Our products are produced in
strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send
new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can
discuss the solution including re-call according to real situation.
