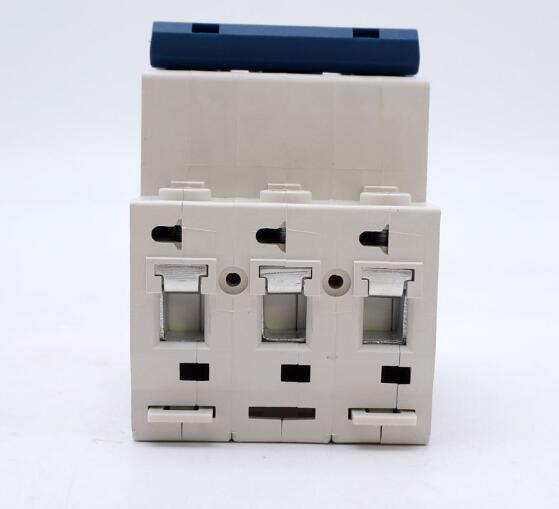

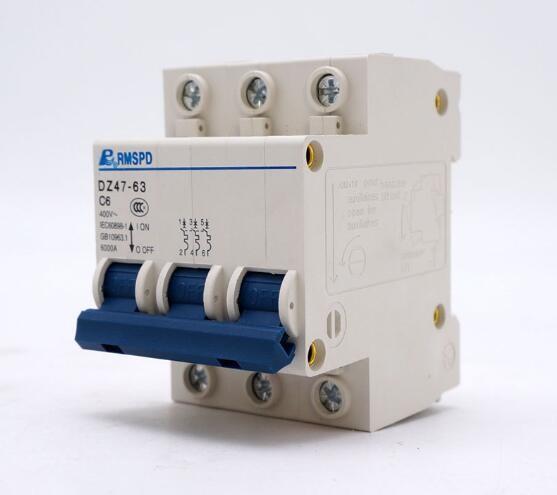

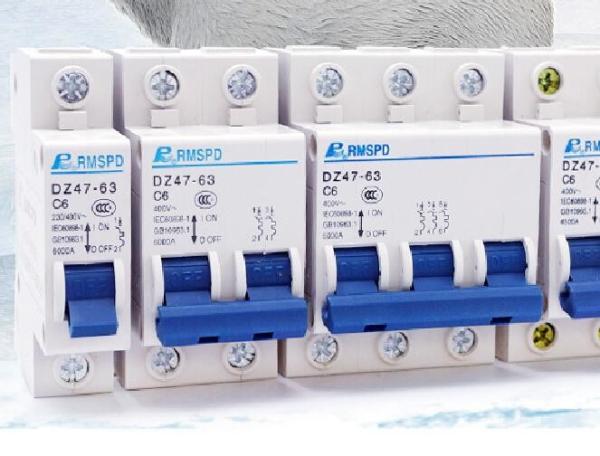

Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V
Specifications
Brand Name :
Fenigal/OEM
Model Number :
FG-C45
Certification :
CCC, CE, GS etc.
Place of Origin :
China
MOQ :
12pcs / 1doz.
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
200,000 pcs/month
Delivery Time :
2~15days
Packaging Details :
standard in carton box
Model :
FG-C45
Pole(s) :
1,2,3,4, DPN/1P+N
Volt :
220~240VAC, 380~400VAC
Hz :
50~60Hz
Phase :
1/3
Standard :
EN/IEC60898
Breaking capacity :
Ics=Icn=6000A
Thermal trip curve :
B,C,D
Case material :
Nylon 66 recylable
Wiring :
terminal block, busbar duct etc. IP20B
Electric shock protection :
Class II
Mechanical life :
10,000
Electrical life :
4,000
Description

China Origin MCB Miniature Circuit Breaker C45 factory supply 6~63A, 1P,2P,3P,4P, Curve C, 230/240V IEC60898

FG-C45 series Miniature Circuit Breaker is nice in appearance, reasonable in structure, sound in feature and high in breaking capacity. Installed with standard DIN rail, it is convenient and easy in usage. It is mainly used in the line of AC 50/60Hz, rated working voltage to 240V/415V, and rated current to 63A as protection against overload and short-circuit. It can be used as infrequent on-and-off operation and changeover.
It complies with standard of GB10963 and IEC/EN60898

Curve C MCB Industrial Circuit Breaker C45 63A 1P 2P 3P 4P 230/240V

Product Description

Model MINI CIRCUIT BREAKER
Code C45
Standard IEC60898-1
Electrical
features		 Rated current in A 1 2 3 4 6 10 16 20 25 32 40 50 63
Poles 1P,1P+N, 2P, 3P,3P+N, 4P
Rated voltage Ue V 240/415
Insulation coltage Ui V 500
Rated frequency Hz 50/60
Rated breaking capacity A 3000, 4500, 6000
Rated impulse withstand voltage (1.2/50)Uipm V 4000
Dielectric test voltage at and ind.Freq.for 1min KV 2
Pollution degree 2
Themo-magnetic release characteristic B(3-5In) ,C(5-10In),D(10-20In)
Mechanical
features		 Electrical life 4000
Machanical life 10000
Protection degree IP 20
Reference temperature of setting of thermal element °C 30
Ambient temperature(with daily average≤35°C) °C -5~+40
Storage temperature °C -25...+70
Installation Terminal connection type Cable/Pin-type busbar
Terminal size top/bottom for cable mm² 25
Terminal size top/bottom for busbar mm² 25
Tightening torque N*m 2.0
Mounting 35mm DIN rail
Connection From top and bottom


Packing details:

NAME SPECIFICATIONS UNIT PCS/CARTON CARTON VOLUME(MM) L*W*H G.W(KG) N.W(KG)
DZ47-63 1P 1-63A 3KA/6KA PCS 240 423*340*238 22.45 21.00
DZ47-63 2P 1-63A 3KA/6KA PCS 180 423*340*238 22.45 21.00
DZ47-63 3P 1-63A 3KA/6KA PCS 80 423*340*238 22.45 21.00
DZ47-63 4P 1-63A 3KA/6KA PCS 60 423*340*238 22.45 21.00
