AC230V Modular Timing Relays
AC230V Modular Timing Relays
AC230V Modular Timing Relays
AC230V Modular Timing Relays
AC230V Modular Timing Relays
AC230V Modular Timing Relays
AC230V Modular Timing Relays
AC230V Modular Timing Relays
Specifications
Brand Name :
OEM/Fenigal
Model Number :
RT8-LS
Certification :
CE,CCC etc.
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10,000pcs/month
Delivery Time :
5-8 working days or bulk order negotiate
Packaging Details :
Standard export carton
Product Name :
DIN rail mount Time Relay
Type :
Time Delay Relay
Control Volt :
DC/AC24, AC230V
Acceossories :
Available
Description

RT8-LS AC230V Multifunction Staircase Light Time Switch Staircase Relay Electronic 1SPST 16A

General

Applications
-It is used for delayed switching of lights in the corridors, entrances, stairways,
halls or for delayed fi nish of fans (WC, bathroom, etc.).

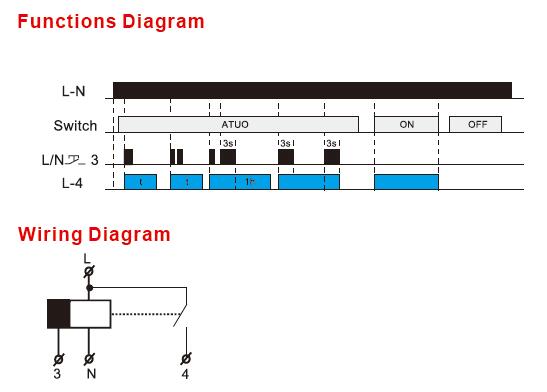

Function Features
-Operating system switch:
ON - output is constantly ON .
AUTO - timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF - output is constantly OFF.
-Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

Technical Data

Model NO GRT8-LS
Function Staircase Switch
Voltage Range AC230V
Output 1 SPST
Supply Terminals A1-A2
Supply Voltage Tolerance -15% +10%
Time Setting Potentionmeter
Supply Indication Green LED
Output Indication Red LED
Rated Frequency 50/60HZ
Rated Current 16A/AC1
Protection Degree IP40 for front Panel / IP20 for Terminals
Weight/pcs 0.1KG/PCS
Standard EN 61812-1,IEC60947-5-1
Certifications CE CB CCC TUV
Warranty/guarantee 18months
MOQ 1PCS

AC230V Modular Timing Relays

AC230V Modular Timing Relays

AC230V Modular Timing Relays

AC230V Modular Timing Relays
