Specifications
Brand Name :
Chint
Model Number :
BZMJ
Certification :
CE,CCC
Place of Origin :
China
MOQ :
1 Unit
Price :
USD8~USD90 (up to 450V/60kvar)
Payment Terms :
T/T, Western Union
Supply Ability :
5,000pcs/month
Delivery Time :
5-8 working days or bulk order negotiate
Packaging Details :
Standard export carton
Rated frequency :
50/60Hz
Ambient temperature :
-25~40 degree Celsius
Rated Capacity :
1~60kvar
Voltage range :
230V, 400V, 450V, 525V, 690V,
Install :
Screw plate mount
Description

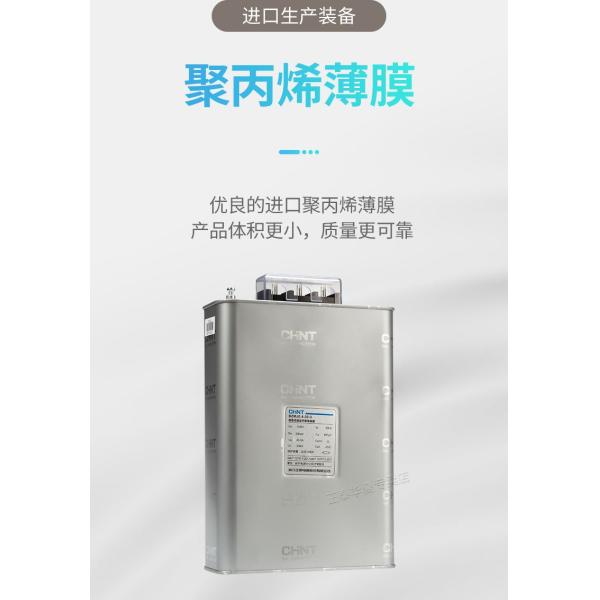

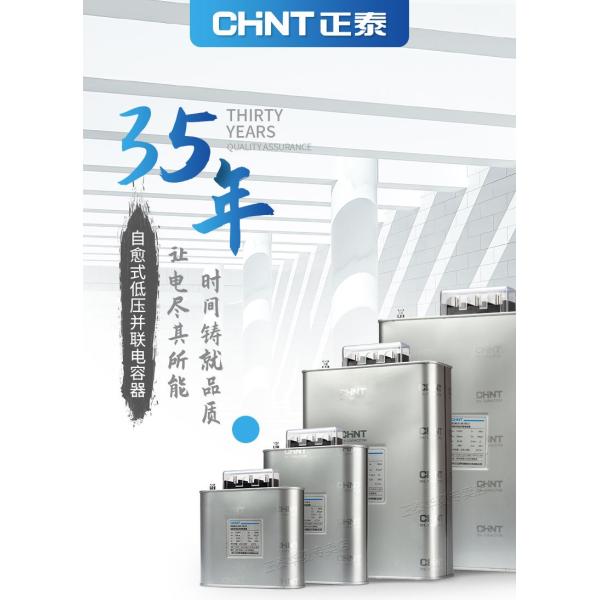

Chint BZMJ Low Voltage Self-healing Shunt Capacitor Banks for Reactive Energy Compensation and Power Factor Correction

General

Power factor determines how well you use your power. It’s the simple ratio of your real power over your apparent power. The general engineering practice or rule of thumb is to keep your power factor number as close to 1 as possible. Why correct power factor? Correcting power factor can reduce your utility bills, reduces apparent power and loading on your distribution network, reduces carbon emissions, and improves voltage regulation. The most cost-effective way to correct power factor is to use automatic capacitor systems suitable for small, medium, and large network installations.

Main

range of product

BZMJ

product or component type

Capacitor

network frequency

50/60 Hz

series name

BZMJ

network harmonic content

<= 20 %

Electrical parameters

45.1 kvar 380 V 50 Hz
50 kvar 400 V 50 Hz
53.8 kvar 415 V 50 Hz

maximum permissible voltage

1.1 x Un (8 hours over 24 hours)

continuous overcurrent capacity

1.8 x In

rated voltage

380…415 V AC 50/60 Hz

Complementary

dielectric losses

< 0.2 W/kvar

power losses

< 0.5 W/kVAr

capacitance tolerance

- 5 % to 10 %

voltage test

2.15 x Un AC between terminals for 10 s
<= 660 V - 3 kV AC between terminal and container for 10 s
>= 660 V - 6 kV AC between terminal and container for 10 s

inrush current

250 x In

maximum switching operation per year

7000

service life in hours

130000 h

dielectric material

Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)

impregnation material

Non-PCB dry PUR resin
Biodegradable

type of installation

Indoor installation

connections - terminals

ClampTite terminal

mounting mode

Upright/horizontal

diameter

136 mm

height

321 mm

net weight

5.3 kg

Environment

standards

IEC 60831-2
IEC 60831-1

IP degree of protection

IP00

operating altitude

2000 m

temperature class

D

ambient air temperature for operation

-25…55 °C

relative humidity

95 %
