Chint Time Control Switch Relay Supplier Low Voltage 230V/400V 16A Use in 1-phase or 3-phase Made in China

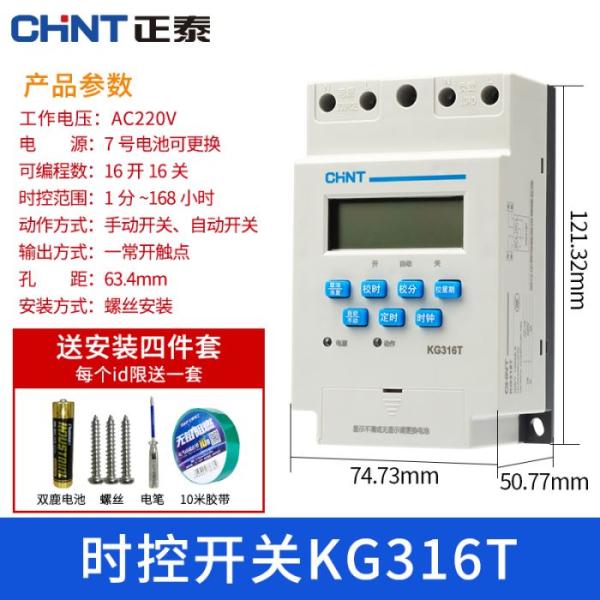

KG316T programmable time control switch

KG316T Time Switch can automatically turn on or turn off power supply of various consumer equipments according to preset time by user. The controlled objects are circuit equipments and household appliances such as street lamps, neon lamps, advertising lamps, manufacturing equipments, broadcast & television equipments, etc., which requires turning on and off at definite time.

NKG1 Time Switch is control element with time as control unit and can automatically turn on or turn off power supply of various consumer equipments according to preset time by user.

The controlled objects are circuit equipments and household appliances such as street lamps, neon lamps, advertising lamps, manufacturing equipments, broadcast & television equipments, etc., which requires turning on and off at definite time.

NKG3 programmable time control switch

NKG3 time switch (hereinafter referred to as time switch) is used in automatic control circuits with a frequency of AC 50Hz(or 60Hz), a rated control supply voltage of up to 220V and a rated operational current of 3A to provide timed on-off control for street lamps, advertising lamps and similar equipment.

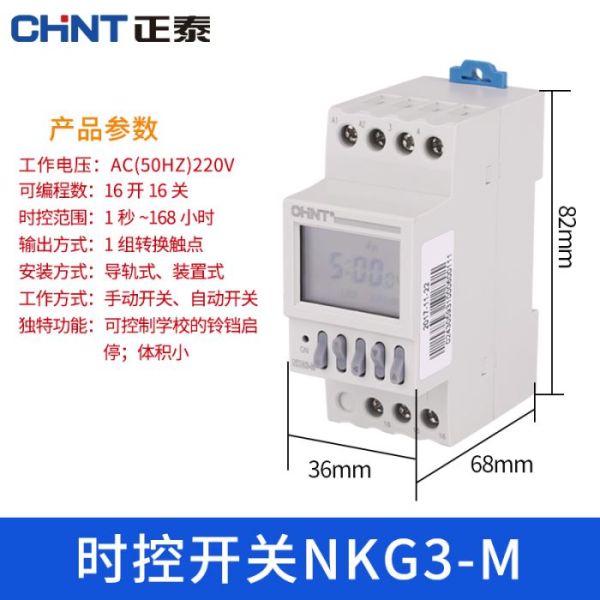

NKG3-M programmable time control switch

NKG3-M programmable time control switch is used in automatic control circuits, such as being used to regularly control switch-on and off of the circuit according to the setting time, which is widely used in street lamps, advertising lamps, breeding plants and similar equipment.

For response market demands and catch our competitors, our new series NKG3 time switch can be adjust at the switch-on and off time everyday according to the latitude, and also it can be adjustable according to the daylight saving time, which means changeable according to winter/summer time. It can be closed as a normal type when you don’t need it.

This great improvement made it more convenient and practical, saving energy for reducing unnecessary lighting time, intelligent time control according to latitude, the switch time more reasonable and scientific,providing an intelligent switch time for breeding plant according to latitude and daylight saving time.

• Rated control supply voltage 220/230 VAC /50/60Hz

• Usage category of auxiliary circuit AC-15

• Rated operational current( Ie) 220V/0.75A 380V/0.47A

• Time control range 1s~168h

• Mechanical life 30 thousand times

• Electrical life 10 thousand times

KG10M Time Switch can automatically turn on or turn off power supply of various consumer equipments according to preset time by user.

The controlled objects are circuit equipments and household appliances such as street lamps, neon lamps, advertising lamps, manufacturing equipments, broadcast & television devices etc. Which requires turning on and off at definite time

Time Relay Chint KG10D - 1Z Time

Range: 1 Min - 168 Hours
Auxiliary Contact: 1NO - 1NC
Motor Power: 3kW
Built in Lithium battery KG10D Time Switch can automatically turn on or turn off power supply of various consumer equipment according to preset time by user. The controlled objects are circuit equipment and household appliances which requires turning on and off at a definite timing.
