Specifications
Brand Name :
None
Model Number :
None
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD50~USD600/unit
Payment Terms :
T/T, Western Union
Supply Ability :
1,000pcs/month
Delivery Time :
5-8 working days bulk order negotiate
Packaging Details :
Standard export carton
Max. current :
63A/125A/250A/400A/630A
Max. voltage :
400V/690V
Pole :
2P/3P/4P
Rated voltage :
380V,220V/400V
Rated current :
63A, 100A, 125A, 160A etc.
Product name :
Dual Power Automatic Transfer Switch ATS
Color :
white grey
Frequency :
AC 50 Hz/60Hz
Operation type :
Manual Operation,Auto&Manual
Standard :
IEC60947-6-1
Description

Compact Automatic Transfer Switch ATS Box Waterproof Wall-mount CB class Single Phase 2 Pole 63A 400V IEC 60947-6

Three-phase 3,4 pole available as well

Integrates electrical and mechanical interlocking systems to guarantee safe transfer operation.

It is applicable for the three-phase four-wire power supply system of AC 50Hz, rated voltage AC 230V/400V, rated current up to 630A.

It can realize automatic and manual changeover between normal and back up power supply power, and stop power supplying to load when changeover process of power supply is carried out.

The switch is applicable for two circuits power supply and in the condition which requires high quality power supply.

Standard: IEC 60947-6-1

Technical Data

Rated current Ie(A)

63A~630A

Installation

Din rail or Panel Mount

Rated insulation voltage Ui (V)

AC400/690V, 50HZ

Rated working voltage Ue (V)

AC230V/400V 50/60Hz

Grade

Grade PC: able to male and withstand, not to break short-circuit current

Use category

AC-33iB

Rated impulse withstand voltage(KV)

8KV

Poles

2P/3P/4P

Weight (KG)

0.81

LIFE

Electrical:2000times; Mechanical: 5000times

Rated limited short-circuit current Iq

50KA

SCPD (FUSES )

RT16-00-63A

Control circuit

Rated supply voltage Us: AC230V,

50Hz Correct Working condition:85% Us~110% Us

Ancillary circuit

Contact capacity: AC230V 50Hz, Ie=5A

Contact transfer time

<50ms

Operating transfer time

<50ms

Return transfer time

<50ms

Off-time

<50ms

Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

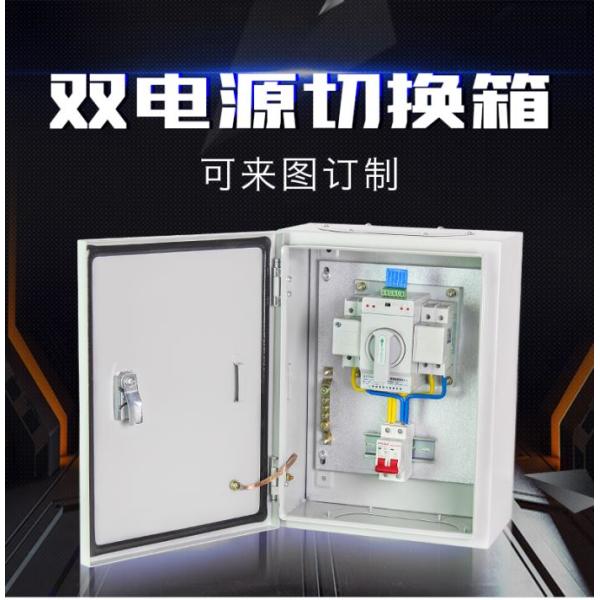

3-Phase 4-wire autmatic transfer switch box for wall-mount application

Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V

Compact Single Phase Automatic Transfer Switch ATS Box Waterproof Wall - Mount 2 Pole 63A 400V
