JXF Installation Enclosures Power Distribution Box , Electrical Distribution Box Indoor Outdoor

Specifications

Brand Name :

None/Fenigal

Model Number :

JXF

Certification :

CE,CCC

Place of Origin :

China

MOQ :

1 Unit

Price :

USD20~USD400

Payment Terms :

T/T

Supply Ability :

500pcs/month

Delivery Time :

5-8 working days or bulk order negotiate

Packaging Details :

Standard export carton

Material :

Galvanized sheet steel or aluminum alloy

Application :

Power Distribution

Type :

JXF distribution enclosure boxes

Installation type :

Wall surface / flush mount or free floor standing

Standard :

IEC60439-3

Rated voltage :

220V-380V,220/110V

Rated current :

63A, 100A, 125A, 160A up to 630A

Frequency :

50 HZ/60HZ

External size :

810x610x156mm (96-way)

Way :

8,10,12,16,20,24,32,36,40,45,48,60

Working temperature :

-40 to +80 degrees centigrade

Color :

White,Grey,Ral7035 or Ral7032

Description

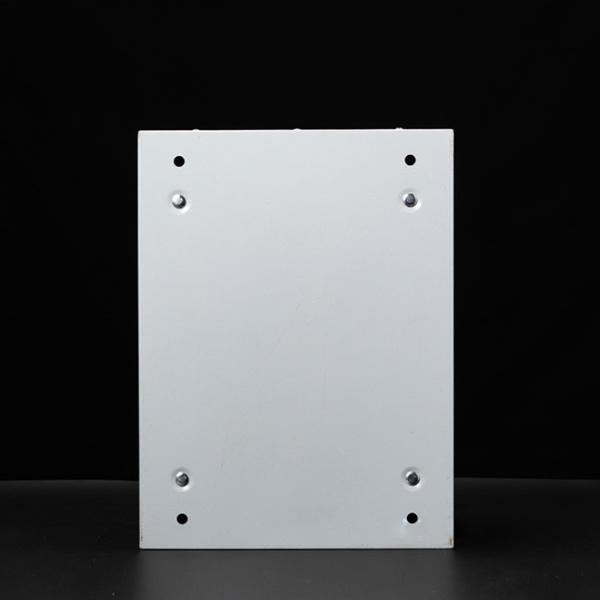

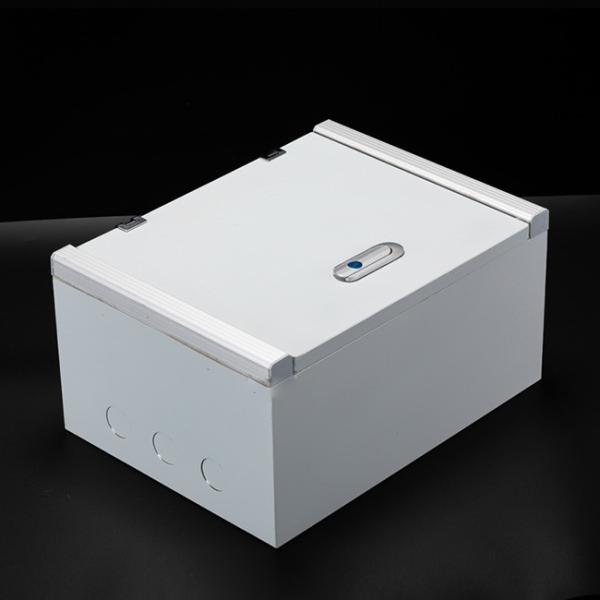

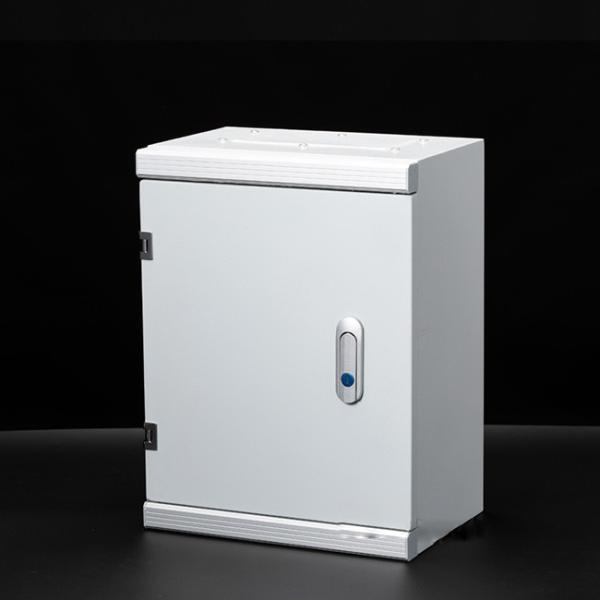

Chint JXF Installation Enclosures in Sheet Steel For indoor or Outdoor Electrical Distribution Motor Control

JXF is a metal enclosure providing the function of Control, monitering, measurement and protection for the electric power loops and main power controlling equipment.

Supplied with a special lock, metal plate for fixing of electrical devices, lid for the input-output conductors, grounded dowel pin, gaskets, etc. Option to change the opening direction. Made of single steel sheet, treated with decorative powder coating.

Technical data:

Rated voltage: up to 1000V

Maximum current: up to 1250A

Material: steel white / RAL 7032 / other custom

Coating: powder style painting

IP code: IP 65

Mounting: vertically on flat surface

Technical Parameter
Type	JXF IP43 improved
Protection grade	IP43
Rated voltage	220/400V
Rated operating current	400A
withstand current	15kA
Hinge	Enhanced
Sealing rubber gasket	Black rubber gasket
Cable gland	Bottom only

Standard & Certificate
Standard	EN60529
Certificate	CE

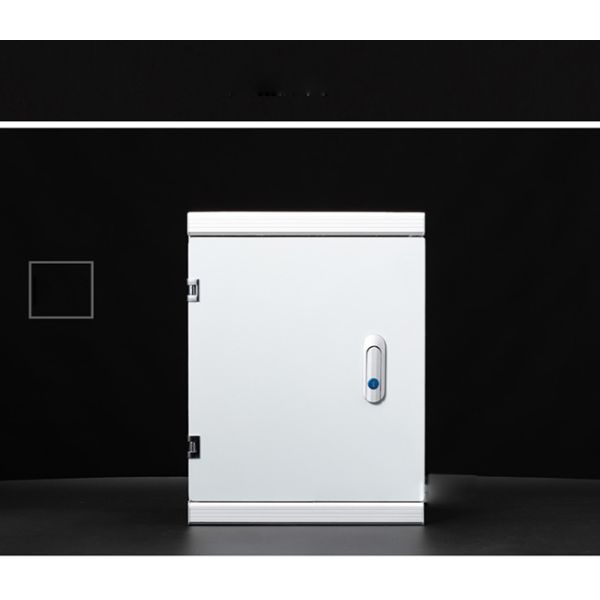

JXF Installation Enclosures Power Distribution Box , Electrical Distribution Box Indoor Outdoor

More specification

JXF Installation Enclosures Power Distribution Box , Electrical Distribution Box Indoor Outdoor
