Specifications
Brand Name :
Chint
Model Number :
JZX-22F/JQX-13F etc.
Certification :
CE,CCC etc.
Place of Origin :
China
MOQ :
12pcs
Price :
USD3~USD6/unit
Payment Terms :
T/T, Western Union
Supply Ability :
100,000pcs/month
Delivery Time :
5-8 working days or bulk order negotiate
Packaging Details :
Standard export carton
Product Name :
Plug-in Electromagnetic Power Relay
Type :
Industrial Control Components
Coil Volt :
DC12V, DC24V, AC230V
Rated current :
10A, 5A,3A
Contact form :
2 C/O, 3C/O, 4C/O
Similar models :
LY2(N), HH62P(-L)
Description

Industrial Control Plug-in Electromagnetic Power Relay JZX/JQX 8-pin,11-pin,14-pin coil 12V, 24V, 230V Chint

Presentation of the range


The JQX/JZX miniature relay range comprises:
1 10A(JQX) or 5/3A(JZX) relays with 2~4 C/O contacts. All these relays
have the same dimensions.
2 Sockets with mixed or separate contact terminals.
3 Protection modules (diode, RC circuit, or varistor) common to all sockets.
4 A metal maintaining clamp for all sockets.
5 A plastic maintaining clamp for all sockets.
6 A 2-pole bus jumper that can be used on sockets with separate contact terminals
in order to simplify cabling when creating an equipotential link between the coil
terminals.

Relay description


1 Spring return pushbutton for testing the contacts (green: c, red: a).
2 Mechanical “relay status” indicator.
3 Removable lock-down door enabling forced maintaining of the contacts for test
sequences or maintenance purposes.
4 LED (depending on version) indicating the relay status.
5 Removable legend for relay identification.
6 Four notches for rail mounting adapter or panel mounting adapter with fixing lugs.
7 Eight, eleven, or fourteen Faston type pins.
8 Area by which the product can be easily gripped.
9 Mounting adapter enabling direct mounting of the relay on a panel.
10 Mounting adapter enabling direct mounting of the relay on a DIN rail.


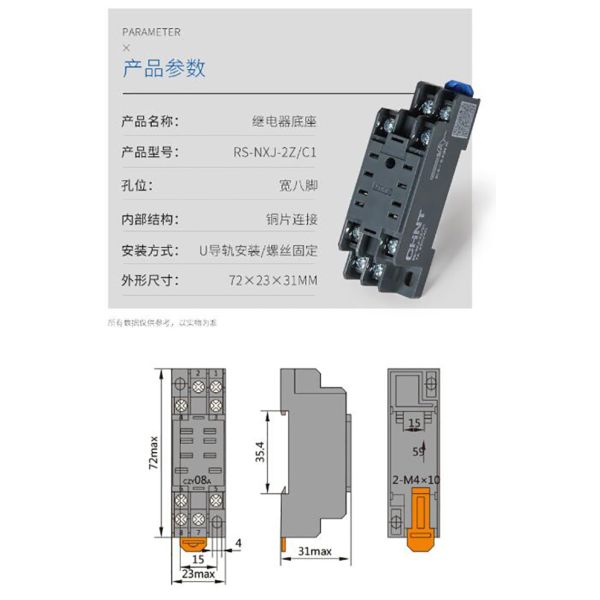

Socket description


Sockets with mixed contact terminals (1)
1 Connection by screw clamp terminals or screw connector.
2 Fourteen female contacts for the relay pins.
3 Location for protection modules.
4 Locking components for plastic and metal maintaining clamps.
5 Locating slot for mounting on DIN rail with its compression spring or fixing clip.
6 Two or four fixing holes for panel mounting.

main information
Product Series
JZX-22F / JQX-13F
Serial Number
Small
product type
Plug-in relay
Product short name
JZX / JQX
Contact type
2/3/4 C+O
Control loop voltage
12/24 V DC 230V AC
Rated load current in the housing [Ithe]
10A / 6 A on -40...55 °C
LED status
Have
Control type
Lock test button
Utilization factor
20%
Additional information
Pin type
Flat
Rated insulation voltage [Ui]
250 V compliant with IEC
300 V compliant with CSA
300 V compliant with UL
Rated impulse withstand voltage [Uimp]
2.5 kV at 1.2/50 μs
Contact material
AgNi
Rated operating current [Ie]
3 A on 28 V (DC) NC IEC compliant
3 A on 250 V (AC) NC IEC compliant
6 A on 28 V (DC) NO in accordance with IEC
6 A on 250 V (AC) NO compliant with IEC
6 A on 277 V (AC) UL compliant
8 A on 30 V (DC) in line with UL
Maximum switching voltage
250 V compliant with IEC
Resistive rated load
6 A on 250 V AC
6 A on 28 V DC
Maximum switching capacity
1500 VA/168 W
Minimum switching capability
170 mW on 10 mA, 17 V
Working rating
<=1200 times/hour underload
<=18000 times/hour without load
Mechanical life
10000000 times
Electrical life
100000 times for resistive (load) load
Average coil consumption in W
0.9 W
Pressure drop threshold
>= 0.1 Uc
Operate time
20 ms
Release time
20 ms
Average coil resistance
650 Ω on 20 °C +/- 10 %
Rated operating voltage limit
19.2...26.4 V DC
Safe and reliable data
B10d = 100000
Type of protection
RT I
Test level
Class A
Operating position
any position
CAD total height
82.8 mm
CAD total depth
80.35 mm
product weight
0.037 kg
Equipment introduction
Product (non-parts)
surroundings
Insulation performance
1300 V AC contact and micro-break insulation
Between 2000 V AC coil and contact and reinforced insulation
Between 2000 V AC poles and basic insulation
certified product
CE
RoHS
Standards compliant
EN/IEC 61810-1
UL 508
CSA C22.2 No 14
Storage ambient temperature
-40...85 °C
Ambient temperature
-40...55 °C
Vibration resistant
3 gn, amplitude = +/- 1 mm (f = 10...150 Hz) 5 cycles, in operation
5 gn, amplitude = +/- 1 mm (f = 10...150 Hz) 5 cycles, not working
IP protection level
IP40 complies with EN/IEC 60529
Impact resistance
10 gn for operation
30 gn for non-operation
Pollution level
2

Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V

Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V

Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V

Applications

Market target

  • Industrial machines
  • Machines and building or medical equipement
  • Packaging machines
  • Textile machines
  • HVAC

Applications

  • Simple hard-wired logic control system cycles
  • Extra feature for industrial PLCs
