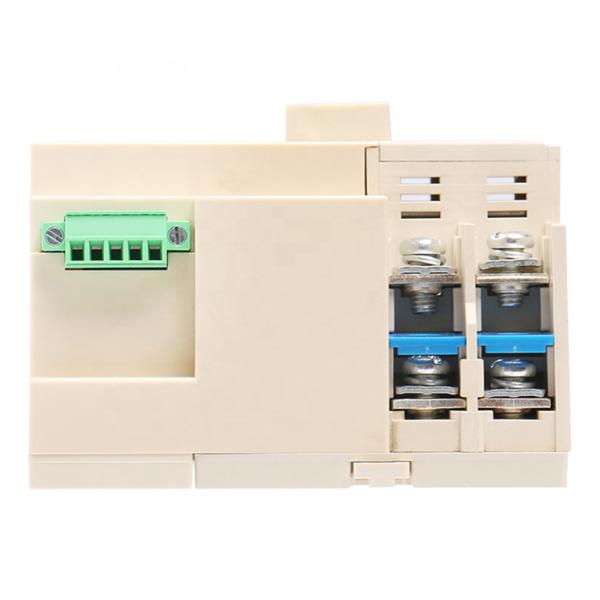

AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
Specifications
Brand Name :
Fenigal/OEM
Model Number :
GEYA
Certification :
CE,CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10,000pcs/month
Delivery Time :
5-8 working days bulk order negotiate
Packaging Details :
Standard export carton
Product Name :
PV Solar Power Dual ATS
Pole :
2P 3P 4P
Standard :
IEC60947-6-1
Product name :
Dual Power Automatic Transfer Switch ATS
Color :
white, Grey
Rated current :
10A-63A
Operation type :
Manual Operation,Auto&Manual
Rated voltage :
1000V and below
Power supply :
AC 230V
Rated frequency: :
50/60Hz
Description

AC220V PV Solar Power Dual Power Automatic Transfer Switch Din Rail 2P 63A ATS

General

PV Solar Power Dual ATS series dual power automatic transfer switch is new developed micro household power transfer switch..

The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.

FMQ1D-63 series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 63A. ATS is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.

Technical Data
Main technical indexes
Conventional heating current 125A 160A 250A 400A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A
Rated insulation voltage Ui 800V
Rated impaction withstand voltage Uimp 8Kv 12KV
Rated working voltage Ue AC440v
Rated working current le AC-32B 125 160 250 400 630 800 1000 1000 1250 2000 2000 2500
Rated making copaaity 17KA 25.2KA 34KA
Rated breaking capocity 　
Rated limiting short-circuit current 20KA 50KA
Rated short time withstand current ls 10KA 12.6KA 20KA
Change-over time 2S 3S
voltage of control power supply AC220V
Energy consumption of the motor Start 300w 325w 355w 400w 440w 600w
Normal 55w 62w 74w 90w 98w 120w
Weight Kg 4-pole 7.5 8.8 9 16.5 17 32 36 40 49 95 98 135
