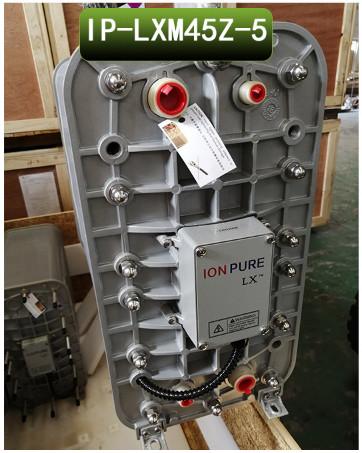

5.1-7.67m3/Hr Ionpure CEDI LX-Z IP-LXM45Z-5 With Environmentally Friendly Process

Ionpure LX-Z — Industrial CEDI Module

Electrodeionization (EDI) is a new desalination process that combines electrodialysis and ion exchange. EDI can continuously discharge water without the need for chemical agents (acid, alkali, salt) regeneration, thus not polluting the environment; it can achieve fully automatic control; it has wide adaptability, so it can be used for water treatment in all walks of life; it has low operating costs, good economic efficiency, and is easy to popularize and promote. The demonstration and analysis of some foreign experts show that in today's water treatment and desalination systems, the use of reverse osmosis (RO) and EDI combined processes can ensure good water treatment process performance, and its economic efficiency is also good, which provides a good development prospect for the promotion of this combined process.

IONPURE LX-Z industrial membrane stack is specially designed for work applications. IONPURE LX-Z membrane stack can extremely reliably produce high-purity water with stable quality without interrupting operation due to regeneration. The membrane stack can be used in power, HP/CPI, electronics, food and beverage industries and laboratories.

Working principle of IP-LXM45Z
The electrodialyzer (EDI) system is a scientific water treatment technology that mainly uses the selective permeation of ions by the exchange membrane to purify the water quality by directional movement of the dielectric ions in the water through the partition under the action of the DC electric field. Between a pair of electrodes of the electrodialyzer, there are usually multiple groups of anion membranes, cation membranes and partitions (A and B) arranged alternately to form a concentrated chamber and a dilute chamber (that is, cations can pass through the cation membrane and anions can pass through the anion membrane). The cations in the dilute chamber migrate toward the negative electrode through the cation membrane and are intercepted by the anion membrane in the concentrated chamber; the anions in the water migrate toward the positive electrode through the anion membrane and are intercepted by the cation membrane in the concentrated chamber. In this way, the number of ions in the water passing through the dilute chamber gradually decreases and becomes fresh water, while in the water of the concentrated chamber, due to the continuous influx of anions and cations in the concentrated chamber, the concentration of dielectric ions continues to increase, and it becomes concentrated water, thereby achieving the purpose of desalination, purification, concentration or refining.

Features of the American IONPURE Siemens EDI module IP-LXM45Z

1. No need for acid and alkali regeneration: In the mixed bed, the resin needs to be regenerated with chemicals and acid and alkali, and a workshop is required to safely store acid and alkali. During regeneration, a large amount of harmful wastewater and waste needs to be treated, which increases the difficulty of environmental protection and safety. EDI eliminates the treatment of these harmful substances and heavy work. Protects the environment.

2. Continuous and simple operation: In the mixed bed, the operation process becomes complicated due to each regeneration and change in water quality, while the water production process of EDI is stable and continuous, the water quality of the produced water is constant, there is no complicated operation procedure, and the operation is greatly simplified.

3. Reduced installation requirements: Compared with the mixed bed with a considerable amount of water treatment, the EDI system has a smaller volume. It adopts a building block structure and can be flexibly constructed according to the height and location of the site. The modular design makes EDI easy to maintain during production work.

QUALITY ASSURANCE STANDARDS

CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.

About the operating environment of the IONPURE LX-Z module:

The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.

* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.

*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.

E-Cell EDI Technology Performance Examples

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.

For application cases, please click:https://www.fgwater.com/Industries/
