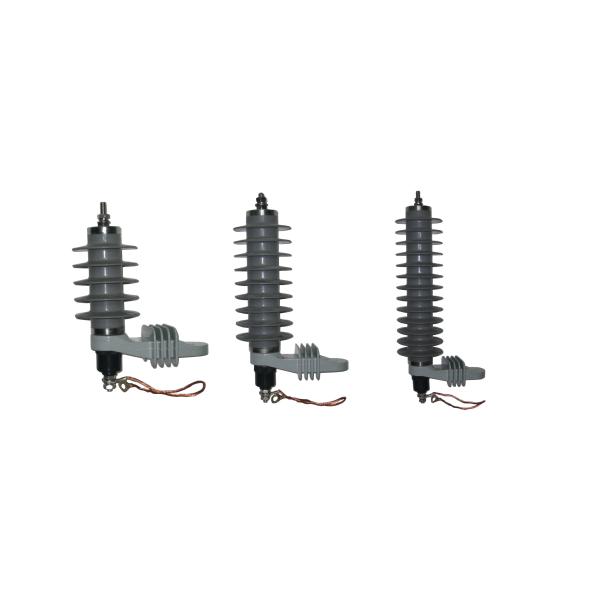

36KV Substation Type Class 2 Composite Low Voltage Surge Arrester with Hoop
36KV Substation Type Class 2 Composite Low Voltage Surge Arrester with Hoop
Specifications
Brand Name :
YONGDE
Model Number :
YH10W5-36
Certification :
ISO9001/KEMA
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T or western Union or L/C or PayPal
Supply Ability :
30,000pcs per month
Delivery Time :
21days per container
Packaging Details :
carton
Type :
Low Voltage Surge Arrester
Housing :
Polymeric Housing
Standards :
IEC
Function :
Over-Voltage Lightning Protection
Rated voltage :
36KV
Rated current :
10KA
Materials :
Silicon rubber
Description

Substation Type Class 2 Composite Low Voltage Surge Arrester with Hoop

Specifications data:

Type YH10W5-36/98
Rated voltage---------kV 36
MOCV ----------------kV 29
Nominal Current-------kV 10
Residual voltage of steep impulse----at 5kA(kV) 106
8/20µS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV) 98
Residual voltage of switching impulse current kV (peak value)----at 1kA (kV) 75
1mA D.C reference voltage (kV) 51
Line discharge level 1
2mS long duration impulse current A 400
4/10µS High current impulse kA 100
Lightning impulse withstand kV 200
Power frequency voltage withstand(dry/wet)kV 70
0.1S TOV--------------kV 43.2
1S TOV----------------kV 41.4
10S TOV---------------kV 39.6
1200S TOV-------------kV 36
Creepage distance ----mm 1148
Material employed in series non-linear resistor Zinc Oxide

Our Advantages:

1. Compact and Lightweight

2. Extremely Safe Pressure Relief Performance

3. Superior Performance against Environmental Contamination

4. Directly Molded Structure

5. Compliance with International Standards(IEC60099-4)

6. Simple Support Structure

7. Manufactured at Advanced ISO-9001 certified facilities

36KV Substation Type Class 2 Composite Low Voltage Surge Arrester with Hoop

Yongde holds the quality policy of being 'the technical forerunner, supreme in quality, supremacy of customers, and innovative progressing', so that our products and services successfully satisfied our users. We warmly welcome friends and customers from home and abroad to contact for exchanges and corporations. We also welcome feedbacks from our user communities.
