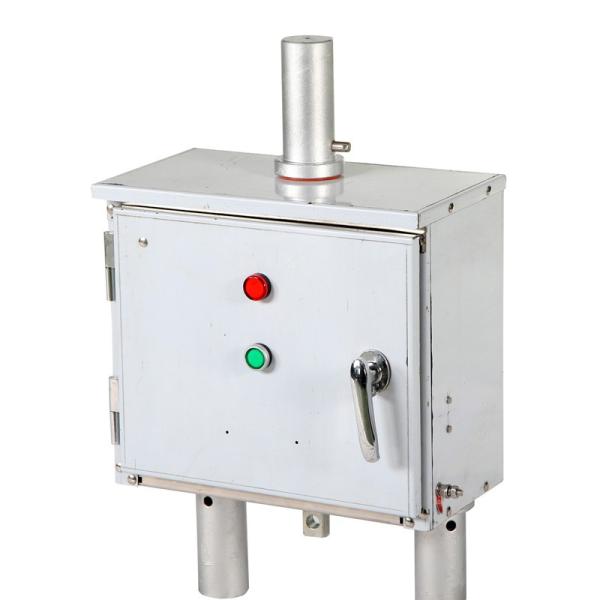

Earthing Switch Disconnector Induction Motor Operated Mechanism Box
Earthing Switch Disconnector Induction Motor Operated Mechanism Box
Specifications
Brand Name :
YONGDE
Model Number :
CJ-6
Certification :
ISO9001
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T or western Union or L/C or PayPal, MoneyGram, D/P, D/A
Supply Ability :
10,000pcs per month
Delivery Time :
21days per container
Packaging Details :
carton
Type :
Induction Motor
Frequency :
50Hz
Output Power :
220W-550W
AC Voltage :
115/120 V
Protect Feature :
Waterproof
Phase :
Single-phase
Efficiency :
IE 1
Description

CJ-6 Motor Operated Mechanism Box for Insulator

Description:

CJ-6 motor operated mechanism is outdoor motor-driven mechanism, used in disconnector or earthing switch for opening and closing. It can be used in both remote control and motor-driven control or manual operated control in working site.

Mechanism operating standard range for rated voltage of motor and control loop is from 85% to 110%. The mechanism is motor driven, torque transmission to mechanism main axis through mechanical speed reducer device. It depends on steel links for disconnector and earthing switch opening and closing in installation. The mechanism is constituted of motor, mechanical speed reducing transmission system, electrical control system and cabinet, etc.

Specifications:

Rated voltage: 220V
Rate of work:370W
Service :OUTDOOR
Box:stainless steel
Rated Torque:40-90mKG
Working form:irreversible
Starting Current: 8A
Running Current:5A
Working time:4-10S
Weight:50-60kG

Motor voltage Control voltage Output mode Rotation angle Time for Switch off and switch on Torque Motor speed Motor power
AC380V or AC400V or DC125 or DC110V or AC220V AC220V or DC220 or DC110 or DC125V

Vertical

Shaft

70 Degrees to 190 Degrees or

Customized Definition

 5 Seconds to 10 Seconds or Customized Definition 1000N

AC Motor 1400

DC Motor 1500

 0.55KW
AC380V or AC400V or DC125 or DC110V or AC220V AC220V or DC220 or DC110 or DC125V

Horizontal

Shaft

70 Degrees to 190 Degrees or

Customized Definition

 5 Seconds to 10 Seconds or Customized Definition 600N

AC Motor 1400

DC Motor 1500

 0.37KW
AC380V or AC400V or DC125 or DC110V or AC220V AC220V or DC220 or DC110 or DC125V

Vertical

Shaft

70 Degrees to 190 Degrees or

Customized Definition

 5 Seconds to 10 Seconds or Customized Definition 600N

AC Motor 1400

DC Motor 1500

 0.37KW

Earthing Switch Disconnector Induction Motor Operated Mechanism Box
