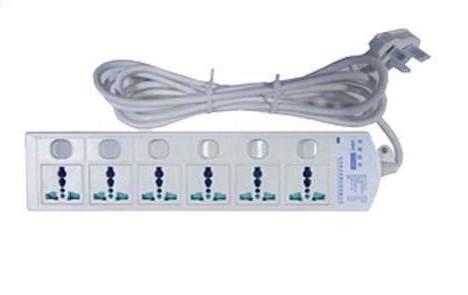

Home Use Lightning Grounding System 6 Outlet Power Strip 10KA 275V
Home Use Lightning Grounding System 6 Outlet Power Strip 10KA 275V
Specifications
Brand Name :
HAMMOND
Model Number :
EPP10MS6
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000
Delivery Time :
8 days
Certification :
ISO9001
Function: :
Lighting Protection
Material: :
Metal
Maximum Discharg :
10 KA
Maximum Continu :
275V
Application: :
Residential / General-Purpose
Description

New Trend Universal EPP10MS6 lightning-proof plugs and sockets

General Description

EPP10MS-6 power supply lightning protection socket is suitable for fine lightning protection of small distribution equipment with 220VAC power supply indoors, such as computer network, precision equipment, small computer rooms, bank savings offices, offices, monitoring rooms and other power supply protection of various power supply equipment; with six multi-use output jacks, independent switch, fault indication within.

The use of multi-level protection circuit, the core components selected from the international ****, stable performance.

Large through-current capacity, low port clamp voltage, sensitive response.

Easy installation, no special maintenance, long service life.

Aging thermal decoupling and short-circuit overcurrent decoupling, indicator light intuitive warning.

Technical parameters


Model

EPP10MS-6

Applicable grid

220VAC (50Hz)

SPD test level

T2

**** Continuous operating voltage Uc

275VAC

Rated discharge current In

5kA

**Maximum discharge current Imax

10kA

Voltage protection level Up〔L-PE/N-PE/L-N

1.5kV/0.6kV/1.0kV

Enclosure material

White flame retardant plastic

Protection method

Full protection

Size specification

330mm×73mm×38mm

Functional characteristics

Independent jack structure with flame retardant and insulation

Working environment conditions

Temperature range: -40℃～+70℃ Humidity range. 30%～85% (25℃)
