275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class
Specifications
Brand Name :
HAMMOND
Model Number :
HDS-B60
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000
Delivery Time :
8 days
Product name: :
surge protector
Function :
Lighting Protection
Maximum Discharging Current: :
60KA
Maximum Continuous Operating Voltage Uc: :
385V
UP :
<1.8KV
Nominal Discharging Current :
30KA
Color :
white
Description

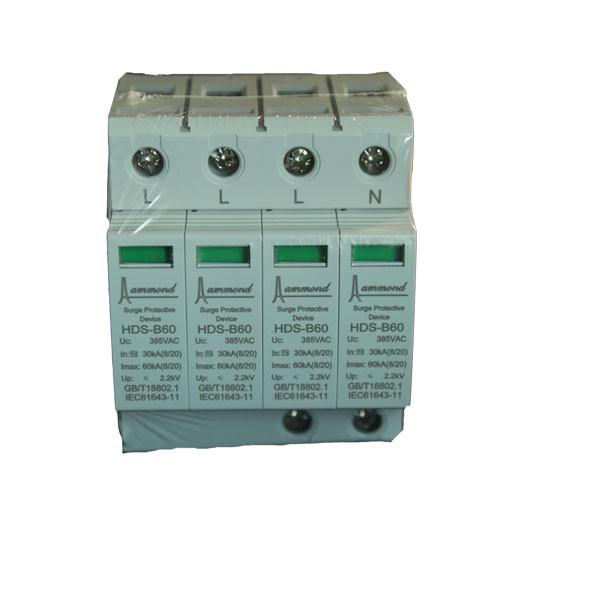

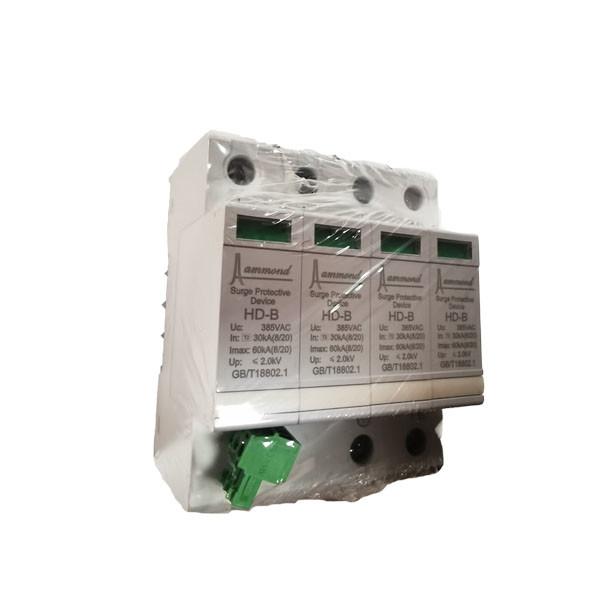

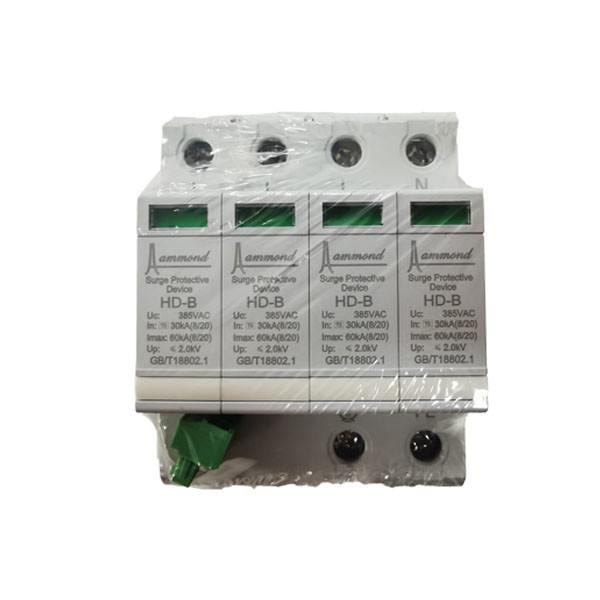

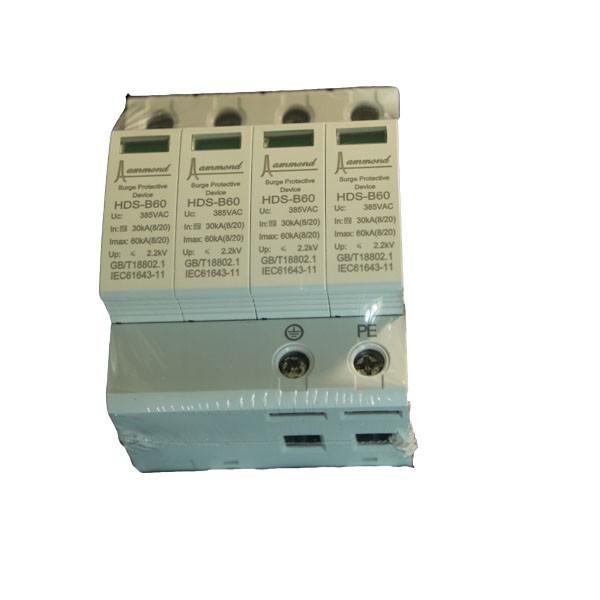

Certified Surge Protection Device HDS-b60 275V AC T2 30kA/60kA 4P SPD D class surge protector

Product Description

Product Description
This product is three-phase parallel connection power surge protective device (called:SPD). SPD can effectively prevent the system and equipment from permanent damage or momentary interruption caused by over voltage and over current ,other transient surge voltage induced by lightning , industrial noise and other factors.
◆The product is used for lightning protection zone: LPZ3 area at the junction with the LPZ4 power lines of the lightning surge protection.
◆With work and module deterioration indication function.
◆This product is modular design and good tightness.
◆With temperature control breaker, build-in over currents fuse protector, completely avoid the fire.
◆Extremely large intake capacity, small leakage power, quick respond, long working life.
275VAC SPD Lightning Surge Protector Quick Respond T2 30kA 60kA D Class

Product Installation
1.SPD apply to power distribution system lightning protection, installed in parallel on the input side of the distribution board or the power distribution box in the buildings. Cut off the power before installation, strictly prohibit operating with electric.
2.Before installation please connect according to the following diagram, L1,L2,L3 are phase line, N is neutral line, PE is ground line, please connect correctly.
3.when the display window was green, indicate that the product normal, while the display window was red means the product deterioration, should be repaired or replaced promptly.
4.Apply to indoor operation, If outdoors installation, must with waterproof box.
Company Profile
Hunan Hertz-Ohm Engineering Group Co., Ltd. (referred to as: Hunan Heou) is a comprehensive engineering consulting company established in Changsha in cooperation with Heilongjiang Hengdian Lightning Protection Engineering Co., Ltd. Group. The main purpose is to consolidate the original business content of Hengdian Lightning Protection Company to South China, and to increase and promote the business scope of new engineering consulting and management fields. The company's service areas involve electric power, mobile communication, wind power, solar energy, chemical petroleum, national defense and civil intelligent buildings, and industrial control fields.
