Specifications
Brand Name :
Sussman
Model Number :
SU-LV
Certification :
CE; ISO
Place of Origin :
Wuxi, Jiangsu
MOQ :
50 square meters
Price :
USD180-USD250 per square meter
Supply Ability :
500 square meter per week
Packaging Details :
plastic film
Type :
Prefab House
Application :
Steel Fabricated House
Door :
Wooden Door
Color :
Customer Made
Structure :
Galvanized Steel Frame
Window :
Aluminum Window
Description

Steel Material House For Worker Labor Camp Light Steel Frame Prefabricated House Prefabricated Modular Homes

Item Details
Structure Q235/Q345/Q500/Q550 Glavanized Steel
Steel Thickness 0.8-1.5mm.Width 89cm
Beam distance/Pillar distance 400mm/600mm
Galvanized quantity 275g/sqm
Wind resistant 12 Grade
Seismic Resistance 7 Grade
Lifespan for structure 90 Years at less
Floor load capacity 250-500kgs/sqm
Sound Resistant
Genaral Lifetime 70 years
Connection way Boltsl connection
Plumbing and electricity
Installation 100sqm Double stories frame can be install in 15 days with 6 worker

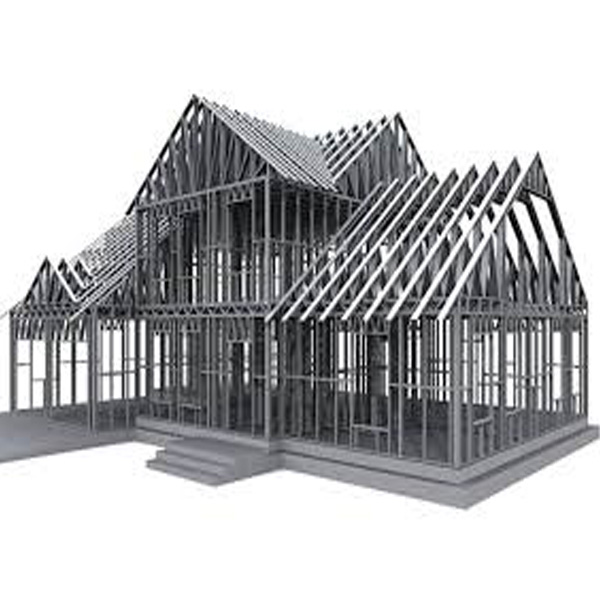

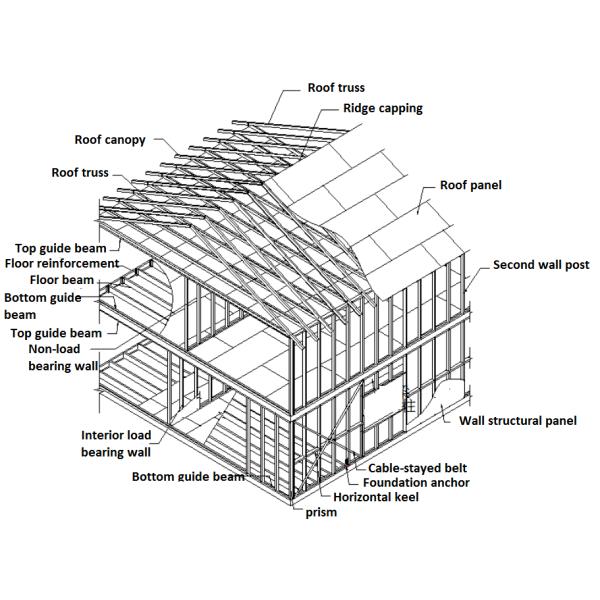

(1) Steel Structure

Light Guage Steel House is more stable than the one that made of welding frame steel . Besides, it is cheaper, more economic. With long lifespan, which can last a50-70 years, all the materials of light guage steel House is Q550. It is locked with bolts, which can be used repeatedly without any maintenance.

Steel Material Prefabricated Modular House For Worker Labor Camp Wooden Door

(2) Flooring

Decoration:PVC flooring,carpet,laminated flooring ,solid wood flooring

Floor:Plywood ,galvanized deck +concrete,calcium silicate board

Insulation layer:glass wool

Floor purlins:rectangular pipes and C-shaped steel

Floor beam:rectangular tube,pipe truss,truss angles ,hot-rolled steel H

Ceiling:calcium silicate ceiling

(3) Windows and Doors

Windows: Double glazing plastic-steel or aluminum alloy thermal-insulating frames

Doors: steel security gate doors; wood or molded doors

(4) Composite Wall System (thickness:150-250mm)

Decorative layer :PVC cladding ,PU metal cladding ,single metal cladding ,calcium silicate board

Insulation:EPS sandwich panel,PU sandwich panel ,glass wool sandwich panel

Ring beam:Cold rectangular tube ,pipe truss.

Steel column:Cold rectangular pipe,hot rolled steel H

(5) Roofing System

1. Asphalt tile

2. Cement tile

3. Clay tile

4. Color steel tile

5. Glass fiber tile

Steel Material Prefabricated Modular House For Worker Labor Camp Wooden Door
