Specifications
Brand Name :
KINESIS
Model Number :
KFM500
Certification :
EN,ISO9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C AT sight, T/T in advance, Paypal
Delivery Time :
3-7 working days for ready goods, 90 days for OEM orders
Packaging Details :
Carton
Product :
27.5er Full Suspension Bike Frame
Material :
Aluminum Alloy 7005, T4&T6
Riding Style :
Trail/Am
Wheel Travel :
130.6mm
Shock Size :
190 x 50 mm
Dropout :
142 x 12 mm thru-axle
Weight :
3314grams(M)
Size :
S(15.5"), M(17.5"), L(19"),XL
Description

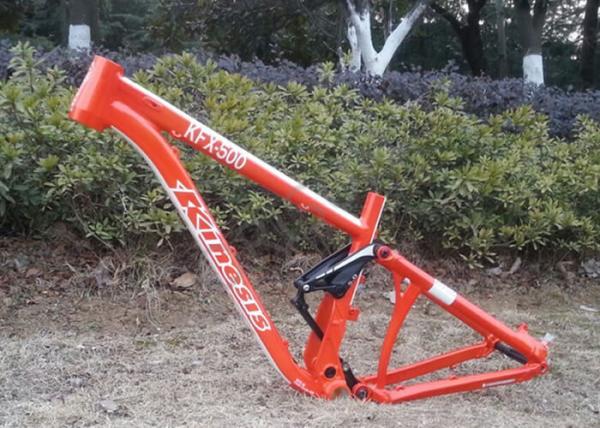

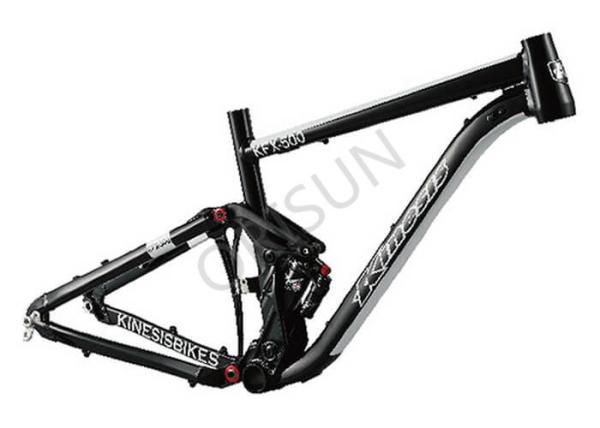

27.5er Aluminum Full Suspension Bike Frame 130mm Travel Trail/Am Mountain Bike

Description:

TFM500 is made of Al7005 lightweight aluminum alloy material with SPF superplastic forming technology.

It is a 27.5er trail frame with 130.6mm wheel travel and shock size 190x50mm. Dropout is 142x12 thru-axle and max tire 27.5 x 2.35.

Features:


1) This frame apply Kinesis SPF(Super plastic forming technolgy) and RMW(robot-man welding technology.
2) 130.6mm wheel travel with shock size 190x50mm. Its pivots bearings are Euduro Premium ones from America.
3) Fork Applicable is 130-160mm. It is an trail/am full suspension bike frame.

4) Inner rounting for derailleur, and brake cable can both go interior or outer. The space is left for inner routing dropper post.
5) OEM/ODM orders are acceptable with customer's logo for order of 50 units.
6) Warranty: 2 years

Technical Data:

Product Full Suspension Mountain Bike Frame
Brand KINESIS
Riding Style Trail/Am
Model KFX500
Material Aluminum Alloy AL7005,T4&T6
Wheel Size 27.5er
Max tire 27.5"x2.35
Weight: 3314 grams(M)
Rear Wheel Travel 130.6 mm
Shock Size 190x50 mm
Headset Tapered(Upper 1-1/8", lower 1-1/2")
Head tube angle 68.5 degree
Seatpost 31.6mm
Routing Internal cable routing
BB PF90mm
ISCG ISCG03
Dropout 142x12 thru-axle
Brake Disc(post mount)
Size S(15.5"), M(17.5"),L(19"), XL(21)
Color Black, Orange
OEM Acceptable
Sample Available
Painting & Logo As per customer's requirement
Accesories Headset, Seat Post Clamp, 142x12 thru-axle, RC cover, clipper included
Pivot Bearings American Enduro Premium Cartridge Bearings

Inner Rounting Trail / AM Bicycle Frame Parts Super Plastic FormingInner Rounting Trail / AM Bicycle Frame Parts Super Plastic Forming
