Specifications
Brand Name :
KINESIS
Model Number :
KFM500
Certification :
EN,ISO9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C AT sight, T/T in advance, Paypal
Delivery Time :
3-7 working days for ready goods, 90 days for OEM orders
Packaging Details :
Carton
Product :
27.5er Full Suspension Mountain Bike Frame
Material :
Aluminum Alloy 7005, T4&T6 Heat Treatment
Wheel Travel :
130.6mm
Shock Size :
190 x 50 mm
Dropout :
142 x 12 mm thru-axle
Weight :
3314grams(M)
Size :
S(15.5"), M(17.5"), L(19"),XL
OEM/ODM :
Acceptable
Description

27.5er Full Suspension Mountain Bike Frame 130mm Travel Aluminum Trail/AM Mountain Bike


Description:

KFM500 is made of Al7005 lightweight aluminum alloy material with SPF superplastic forming technology.

It is a 27.5er trail frame with 130.6mm wheel travel and shock size 190x50mm. Dropout is 142x12 thru-axle and max tire 27.5 x 2.35.

Features:

1) 27.5er wheel size with max tire 27.5x2.35. Rear Dropout is 142x12 thru-axle
2) This frame apply Kinesis SPF(Super plastic forming technolgy) and RMW(robot-man welding technology.
3) 130.6mm wheel travel with shock size 190x50mm. Its pivots bearings are Euduro Premium ones from America.
4) Fork Applicable is 130-160mm. It is an trail/am full suspension bike frame.

5) cold forged +CNC yoke greatly enhance pedalling stiffness and rigidity.
6) OEM/ODM orders are acceptable with customer's logo for order of 50 units.

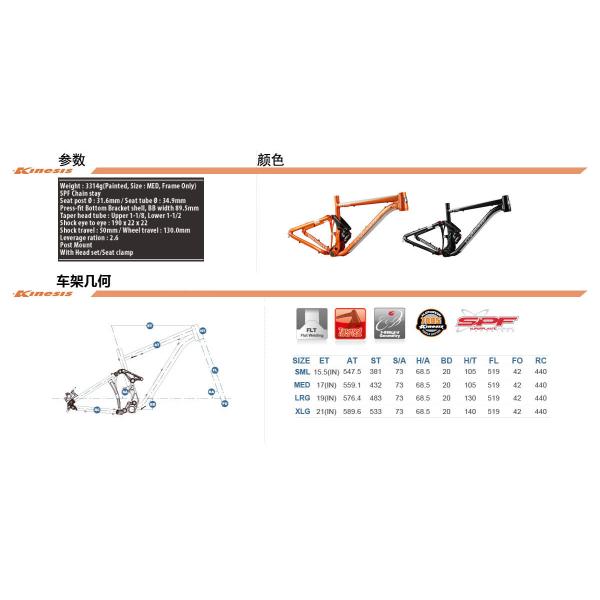

Technical Data:

Product Full Suspension Mountain Bike Frame
Brand KINESIS
Riding Style Trail/Am
Model KFX500
Material Aluminum Alloy AL7005,T4&T6 Heat treatment
Wheel Size 27.5er(650B)
Max tire 27.5"x2.35
Rear Wheel Travel 130.6 mm
Shock Size 190x50 mm
Headset Tapered(Upper 1-1/8", lower 1-1/2")
Head tube angle 68.5°
Seatpost 31.6mm
Routing Internal cable routing
Bottom Bracket PF90mm
Chain Guide ISCG03
Rear Dropout 142x12 thru-axle
Brake Disc(post mount)
Size S(15.5"), M(17.5"),L(19"), XL(21)
Weight 3314 grams(M)
Color Black, Orange
Accesories Headset, Seat Post Clamp, 142x12 thru-axle, RC cover, clipper included
OEM Acceptable
Sample Available
Painting & Logo As per customer's requirement
Warranty 2 years

Aluminum Orange Trail Bike Frame Full Suspension Lightweight Structure
