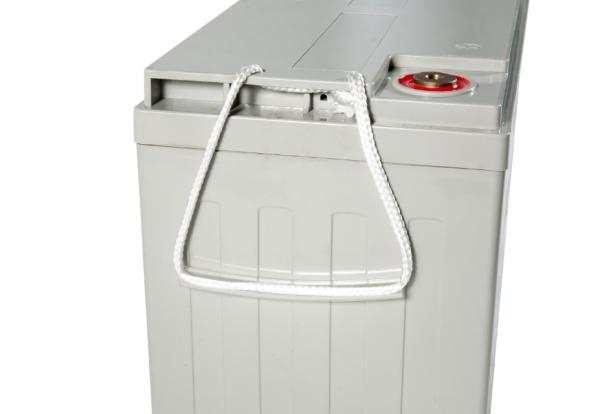

Tubular Deep Cycle Golf Cart Batteries 360 X172 X 285 Mm 6-EV-90
Tubular Deep Cycle Golf Cart Batteries 360 X172 X 285 Mm 6-EV-90
Specifications
Brand Name :
HRESYS
Model Number :
6-EV-90
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12V Lead-acid Batteries
Application :
Electric vehicles
Capacity :
90 Ah
Nominal Voltage (V) :
12 (6 cells per unit)
Float Charge Voltage :
2.27V/cell - 2.30V/cell @25℃
Weight :
34 kg
Dimension :
L360 xW172 x H285 mm
Description

6-EV-90 EV series tubular flooded Lead Acid Battery for electric vehicles , 360 x172 x 285 mm

  • Product Overview

HRESYS EV series battery is specially designed for electric vehicles, including electric tricycles, low speed electric automobiles etc. With tubular positvie plate and flooded electrolyte, EV series deliveries excellent deep cycle life, excllent charge acceprance ability, strong high and low temperature performance.

  • Applications

o Electric tricycle

o Electric automobile

o Golf car

o Sightseeing bus

o Sanitation truck

o Electric fork-lift truck

  • Product Specification
Nominal Voltage (V) 12 (6 cells per unit)
Nominal Capacity (25 C) 90 Ah@5HR-rate
Dimension (mm) L360 xW172 x H285 mm
Approx. Weight 34 kg
Terminal Type Female Copper Insert M8
Internal Resistance
Self Discharge
Ambient Temperature Discharge: -20~55°C
Charge: -20~45 C
Storage: -20~45 C
Float Charge Voltage 2.27V/cell - 2.30V/cell @25℃
Cycle life ≥ 850 cycles @ 80% DOD
Container Material PP

  • Features and Benefits​

- High Corrosion Resistant Performance

- Excellent charge acceptance ability

- Low Self-discharge Rate

- Strong High and Low Temperature Performance

- Tubular Plate for Excellent Deep Discharge Cycle Life

  • Complied standards

o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

  • Battery Dimension
    • Discharge and Charge Conditions (80%DOD, 20 to 25℃)

(1) Cycle method: Discharge with 2I10 for 4 hours (80% DOD), charge with 2I10 for 3.5hour + I10 for 1hour + 0.25I10 for 3.5hour. This is one cycle.

(2) Residue Capacity determination: The batteries are discharged at 10 hour rate after every 50 cycles to test battery capacity. When residue capacity of 10 hour rate capacity is lower than 80%, test is ended. After discharge at 10 hour rate after every 50cycles, the charge method is: charge 80% of discharged capacity with current of 2I10 + charge 20% with current of I10 + charge 20% with current of 0.4I10 (i.e. charge 120% of discharged capacity)

  • Performance Curves

Tubular Deep Cycle Golf Cart Batteries 360 X172 X 285 Mm 6-EV-90
