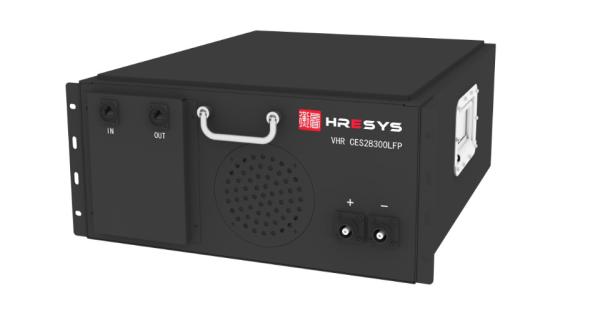

28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg
28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg
28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg
28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg
Specifications
Brand Name :
HRESYS
Model Number :
VHR CES28300LFP
Certification :
CE/UL
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Packaging Details :
Box/carton(standard package)
Delivery Time :
30 DAYS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Nominal Capacity :
300Ah
Nominal Voltage :
28.8V
Charge Voltage :
32.4V
Voltage at End of Discharge :
21.4V
Maximum Continuous Charge Current (CC Threshold) :
150A
Maximum Continuous Discharge Current :
300A
Charge Voltage-cell :
3.80V/cell
Weight :
73.6(±2)kg
Description

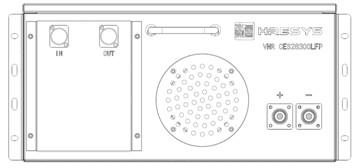

1.28V 300Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 555.0 mm X H: 220.0mm

  • Product Overview

HRESYS Commercial Energy Storage Lithium-ion Battery utilizes advanced LFP technology and high reliable integrated BMS to ensure the benefits of long cyclic life, high energy density, compact size and weight, high safety and reliability, and environment friendly as well. The 28V Lithium Ion Battery Pack is mainly working as 28V DC power source, and it consists of 9 cells of Lithium Iron Phosphate Battery Cells connected in series. HRESYS CES-LFP Lithium-ion Battery is widely used in Commercial energy storage system, Industrial energy storage system, Small or Medium-Sized Renewable Energy Storage System, etc.

  • Product Specification​
Item Specification Remarks
Nominal Capacity 300Ah Standard discharge (1) capacity after standard charge (2)
Nominal Voltage 28.8V Configuration: 9S2P - VHR 45173184LFP-150Ah. Voltage of single cell is 3.2V.
Charge Voltage 32.4V @ 25 ± 3℃
Voltage at End of Discharge 24.0V @ 25 ± 3℃
Maximum Continuous Charge Current (CC Threshold) 150A @ 25 ± 3℃
Charge Voltage-cell 3.80V/cell N.A.
Maximum Continuous 300A @ 25 ± 3℃
Discharge Current
Voltage at End of Discharge-cell 2.50V/cell N.A.
Operation Allowable Charge: 0～60°C N.A.
Temperature Range Discharge: -20～60°C N.A.
Continuous Discharge Power 4.32KW 50%SOC
Continuous Charge Power 1.73KW N.A
Self-discharge Rate/Month ≤4% @ 25 ± 3℃,50%SOC
Cycle Life(cycles) ≥5000 @ 25 ± 3℃,0.2C/0.5C @80%DOD
Operation Allowable ≤95% RH Operation
Humidity Range ≤85% RH Storage
Recommended 0～40°C Max. 6 month
Storage temperature
Weight 73.6(±2)kg N.A.

  • Energy Density @ Weight & AC IMP

28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg

  • Discharge Performance With Varied Power @ -40℃

28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg

  • Discharge Performance With Varied Power @ 45℃

28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg

  • Discharge C-Rate Performance

28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg

  • R&D Ability and Testing Facilities

1. Industry Leading R&D Team

2. Over hundreds of High Level Engineers working in Li-Ion Battery and VRLA Battery product development

3. 60% of engineers have possessed Master/Doctor degree

4. External Consultant/Expert supporting innovation

28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg

28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg
