12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12
12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12
Specifications
Brand Name :
HRESYS
Model Number :
6-DZM-12
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V VRLA Gel Battery
Capacity :
12 Ah
Float Charge Voltage :
13.5~13.8V/block @25 C
Approx. Weight :
4.20 kg (9.26 lbs)
Application :
Motive Power Applications
Nominal Voltage (V) :
12 (6 cells per unit)
Internal Resistance :
≤ 0.016 Ohm (fully charged)
Dimension :
L151mm x W100mm x H99mm
Description

12 V 12 AH VRLA Gel Battery for motive power applications, 6-DZM-12, L151mm x W100mm x H99mm

  • Product Overview

HRESYS DZM series VRLA Gel Battery is specially designed for motive power applications including electric bikes/scooters, electric tricycles, electric motocycles and other device require DC power source. With international leading technologies and State-of-the-art automated manufacturing, DZM series offer long cycle life, large current discharge capability, high consistency, reliability and safety, and environmental-friendly.

  • Features and Benefits​

  • Long Cycle Life: Exceptional cyclic performance above 600 cycles @80% DoD.
  • Reliable Seal Structure: Mount in any position except inverted
  • Optimal Design: Besides the benefits of VRLA battery, it is maintainable that can prolong the service life by up to 50%-100% or more.
  • Multi-purpose Application: The battery can be floating application as well as cyclic application.
  • Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge and low water- loss.
  • High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable.

  • Applications

  • Electric Bike / Scooters
  • Electric Tricycles
  • Electric Tools and Toys
  • Mini Solar Power System

  • Product Specification​

Nominal Voltage (V) 12 (6 cells per unit)
Nominal Capacity (25 C) 12 Ah @ 2HR-rate (to 1.75Vpc)
Dimension (mm) L151mm x W100mm x H99mm
Approx. Weight 4.20 kg (9.26 lbs)
Terminal Type Female Copper Insert M5
Internal Resistance ≤ 0.016 Ohm (fully charged)
Initial Charge Current ≤2.0A
Self Discharge Approx. 2.0% per month @ 20°C
Ambient Temperature Discharge: -20~55°C
Charge: -20~45 °C
Storage: -20~45°C
Float Charge Voltage 13.5~13.8V/block @25 C
Сycle Use Charge Voltage 14.7~14.9V/block @25 C
Container Material ABS (UL94-V0 optional)

  • Complied standards

  • IEC 61056-1
  • GB/T 22199
  • JIS C8702-1

  • GB/T 19639-1

  • Management and Product Certificates

  • ISO9001:2015
  • ISO14001:2015
  • OHSAS18001:2007
  • CE Certificate

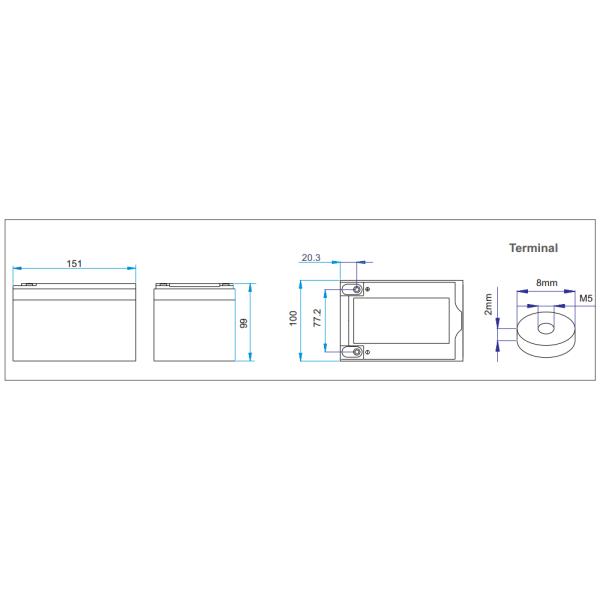

  • Battery Dimension

12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12

  • CHARACTERISTICS

12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-1212AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12
