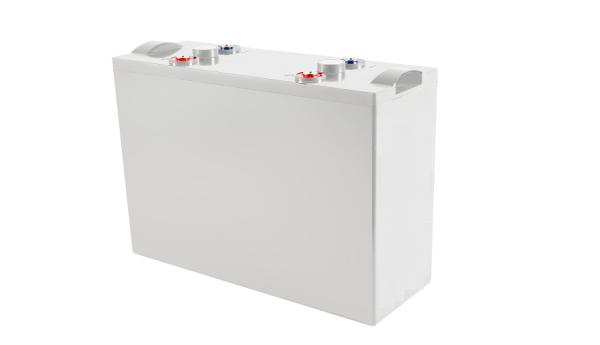

High Discharge Rate Battery Energy Storage System Good Consistency 1200AH 64.3 Kg
High Discharge Rate Battery Energy Storage System Good Consistency 1200AH 64.3 Kg
Specifications
Brand Name :
HRESYS
Model Number :
VHR 2SCG1200
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
2 V Lead-acid Batteries
Capacity :
1200 Ah
Float Charge Voltage :
2.25V/cell @25℃
Weight :
64.3 kg (141.8 lbs.)
Application :
Energy Storage
Nominal Voltage (V) :
12 (6 cells per unit)
Internal Resistance :
Approx. 0.20mOhm (fully charged@20℃)
Dimension :
L470mm x W170mm x H340mm
Description

2V 1200AH Gel Lead-acid Batteries for Energy Storage, L470mm x W170mm x H340mm

  • Product Overview

HRESYS SCG Series Valve Regulated Lead Acid Gel Battery is specially designed for energy storage Applications including renewable energy system, outdoor telecom and cycle application for harsh environment With international leading technologies and State-of-the-art automated manufacturing, SCG series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.

  • Product Specification​

Nominal Voltage (V) 2
Nominal Capacity (25 C) 1200 Ah@C10 (to 1.80Vpc)
Dimension (mm) L470mm x W170mm x H340mm
Approx. Weight 64.3 kg (141.8 lbs.)
Terminal Type Female Copper Insert M8
Internal Resistance Approx. 0.20mOhm (fully charged@ 20°C)
Max. Charge Current 300 A
Self-Discharge Approx. 2.5% per month @ 20°C
Ambient Temperature

Discharge: -40~60°C

Charge: -20~55 °C

Storage: -20~45°C
Float Charge Voltage 2.25V/cell @25℃
Equalize Charge Voltage 2.35V/cell @25℃
Container Material ABS (UL94-V0 optional)

  • Features and Benefits​

- Long Cycle Life: 15 years long life design @ 25℃

- Multi-purpose Application: The battery can be floating application as well as cyclic application

- Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

- High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable

  • Applications

o Renewable energy

o Outdoor telecom

o Mini Solar Power System

o General Purpose

o UPS

o Energy Storage

  • Complied standards

o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

  • Battery Dimension

High Discharge Rate Battery Energy Storage System Good Consistency 1200AH 64.3 Kg

  • Performance Curves

· Cyclic Characteristics

High cycle performance: up to 820 cycle at 80%DOD

High Discharge Rate Battery Energy Storage System Good Consistency 1200AH 64.3 Kg
