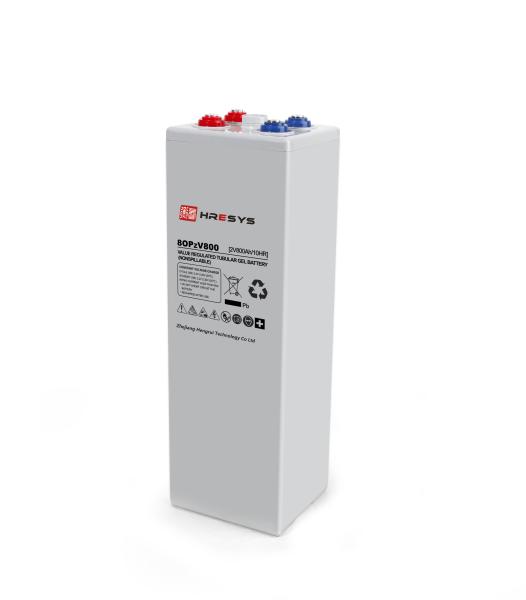

800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage
800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage
Specifications
Brand Name :
HRESYS
Model Number :
8 OPzV 800
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
2 V Tubular Gel Batteries
Application :
Renewable energy storage, Telecom use, power utilities applications
Capacity :
800 Ah
Nominal Voltage (V) :
2
Float Charge Voltage :
2.23V/block@25°C(-3mV/°/cell)
Internal Resistance :
Approx. 0.32 Ohm (fully charged@20°C)
Weight :
60 kg (132.2 lbs)
Dimension :
L191mm x W210mm x H681mm
Description

2V 800AH High reliable & Deep Cycling Life Tubular Gel Type OPzV Battery for renewable energy storage, Telecom use

  • Product Overview

With specially designed robust die cast positive tubular plate and fumed gelled electrolyte. HRESYS OPzV Series fit perfectly in telecom power utilities, cyclic using, renewable energy storage applications at harsh working conditions.

HRESYS OPzV Series offers extremely strong performance, such as long design-life, maintenance free and high-level reliability etc. HRESYS OPzV series compliance with the DIN standard, IEC standard, Eurobat guide etc.

  • Features and Benefits

- Low density electrolyte reduce corrosion and enable long service life

- Reliable maintenance-free and leakage-free construction

- Excellent deep discharge recovery capability

- Wide operating temperature range from -40°C to 60°C

- Tubular positive plate and fumed silica gel enables excellent deep cycle performance

- Compliance with Din standard

- Low self-discharge rate and long shelf life (1 year at 25°C)

- 20 years design life at floating condition

  • Applications

o Renewable energy

o Telecom

o UPS

o Utility

  • Complied standards
    • IEC 60896-21/22
    • DIN40472
    • IEC61427
    • YD/T1360
    • Eurobat guide, long life
    • BS6290 part 4

  • Management and Product Certificates
    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate

  • Product Specification​
Nominal Voltage (V) 2
Designed floating life(25°C) 20+ Years
Nominal Capacity (25°C) 800 Ah @ C10 (to 1.80Vpc)
Max. Charge Current 200 A
Max. Discharge Current 2000 A
Short Circuit current 5300 A
Dimension (mm) L191mm x W210mm x H681mm
Approx. Weight 60 kg (132.2 lbs)
Terminal Type Female Copper Insert M8(torque: 10~12N.m)
Internal Resistance Approx. 0.32 Ohm (fully charged)
Float Charge Voltage 2.23V/block @25℃
Equalize Charge Voltage 2.35V @25℃
Self-Discharge Approx. 2.0% per month @ 20°C
Ambient Temperature Discharge: -40~60°C
Charge: -30~55 C
Storage: -25~45 C
Container Material ABS UL (94-V0 optional)

  • Battery Dimension
    • L191mm x W210mm x H681mm

800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage

  • Performance Curves

· Cyclic Characteristics

High cycle performance: up to 1800 cycle at 800%DOD

· Charge Characteristics

800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage

800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage
