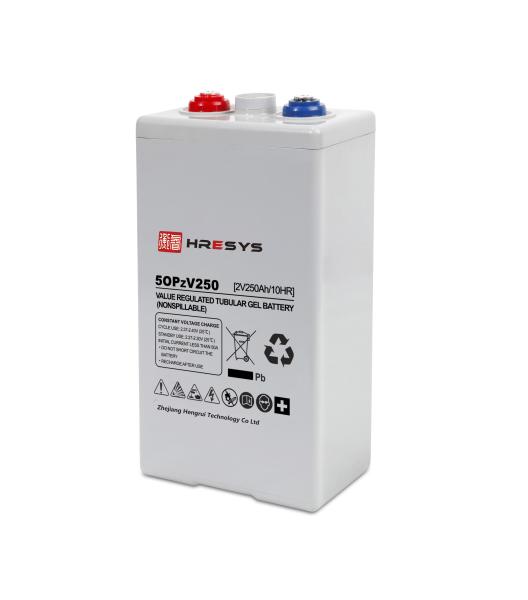

20.7 Kg Battery Energy Storage System 250 Ah L124mm X W206mm X H390mm
20.7 Kg Battery Energy Storage System 250 Ah L124mm X W206mm X H390mm
Specifications
Brand Name :
HRESYS
Model Number :
5 OPzV 250
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
2 V Tubular Gel Batteries
Application :
renewable energy, telecom and other cyclic and standby application
Capacity :
250 Ah
Nominal Voltage (V) :
2
Float Charge Voltage :
2.23V/block@25°C(-3mV/°/cell)
Internal Resistance :
Approx. 0.80 Ohm (fully charged@20°C)
Weight :
20.7 kg (45.6 lbs)
Dimension :
L124mm x W206mm x H390mm
Description

2 V 250AH OPzV Tubular Gel Battery for renewable energy, telecom and other cyclic and standby harsh environment applica

  • Product Overview

HRESYS OPzV Series is traditional Valve Regulated Tubular Gel type Battery. By using tubular positive plate and fumed silica Gel electrolyte to provide excellent deep cyclic performance, fast recovery performance and high reliability. OPzV Series is specially designed for cyclic applications at harsh working conditions, such as telecom cyclic

Using, power utilities, renewable energy storage, etc

  • Features and Benefits

- 20 years design life at floating condition

- Tubular positive plate and fumed silica gel enables excellent deep cycle performance

- Low density electrolyte reduce corrosion and enable long service life

- Excellent deep discharge recovery capability

- Reliable maintenance-free and leakage-free construction

- Wide operating temperature range from -40°C to 60°C

- Low self-discharge rate and long shelf life(1 year at 25°C)

- Din standard compliance

  • Applications

o Renewable energy

o Telecom

o UPS

o Utility

  • Complied standards
    • IEC 60896-21/22
    • DIN40472
    • IEC61427
    • YD/T1360
    • Eurobat guide, long life
    • BS6290 part 4

  • Management and Product Certificates
    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate

  • Product Specification​
Nominal Voltage (V) 2
Designed floating life(25°C) 20+ Years
Nominal Capacity (25°C) 250 Ah @ C10 (to 1.80Vpc)
Max. Charge Current 62.5 A
Max. Discharge Current 1000 A
Short Circuit current 2300 A
Dimension (mm) L124mm x W206mm x H390mm
Approx. Weight 20.7 kg (45.6 lbs)
Terminal Type Female Copper Insert M8(torque: 10~12N.m)
Internal Resistance Approx. 0.80 Ohm (fully charged)
Float Charge Voltage 2.23V/block @25℃
Equalize Charge Voltage 2.35V @25℃
Self-Discharge Approx. 2.0% per month @ 20°C
Ambient Temperature Discharge: -40~60°C
Charge: -30~55 C
Storage: -25~45 C
Container Material ABS UL (94-V0 optional)

  • Battery Dimension
    • High cycle performance: up to 400 ~ 600 cycle at 100%DOD

20.7 Kg Battery Energy Storage System 250 Ah L124mm X W206mm X H390mm

  • Performance Curves

· Cyclic Characteristics

High cycle performance: up to 1800 cycle at 800%DOD

· Charge Characteristics

20.7 Kg Battery Energy Storage System 250 Ah L124mm X W206mm X H390mm

20.7 Kg Battery Energy Storage System 250 Ah L124mm X W206mm X H390mm20.7 Kg Battery Energy Storage System 250 Ah L124mm X W206mm X H390mm
