400AH Battery Energy Storage System High Reliability For General Purpose
400AH Battery Energy Storage System High Reliability For General Purpose
Specifications
Brand Name :
HRESYS
Model Number :
VHR 2SCG400
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
2 V Lead-acid Batteries
Capacity :
400 Ah
Float Charge Voltage :
2.25V/cell @25℃
Weight :
25.6 kg (56.4 lbs.)
Application :
Renewable Energy
Nominal Voltage (V) :
12 (6 cells per unit)
Internal Resistance :
Approx. 0.44mOhm (fully charged@20℃)
Dimension :
L195mm x W170mm x H340mm
Description

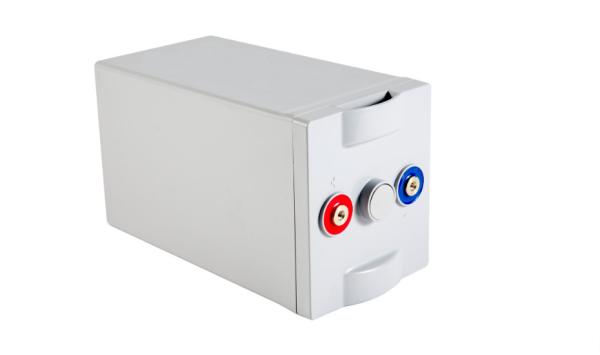

2V 400AH Gel Lead-acid Batteries for General Purpose, L195mm x W170mm x H340mm

  • Product Overview

HRESYS SCG Series Valve Regulated Lead Acid Gel Battery is specially designed for general purpose

Applications including renewable energy system, outdoor telecom and cycle application for harsh environment

With international leading technologies and State-of-the-art automated manufacturing, SCG series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.

  • Features and Benefits​

- Long Cycle Life: 15 years long life design @ 25℃

- Multi-purpose Application: The battery can be floating application as well as cyclic application

- Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

- High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable

  • Applications

o Renewable energy

o Outdoor telecom

o Mini Solar Power System

o General Purpose

  • Complied standards

o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

  • Product Specification​

Nominal Voltage (V) 2
Nominal Capacity (25 C) 400 Ah@C10 (to 1.80Vpc)
Dimension (mm) L195mm x W170mm x H340mm
Approx. Weight 25.6 kg (56.4 lbs.)
Terminal Type Female Copper Insert M8
Internal Resistance Approx. 0.44mOhm (fully charged@ 20°C)
Max. Charge Current 100 A
Self-Discharge Approx. 2.5% per month @ 20°C
Ambient Temperature

Discharge: -40~60°C

Charge: -20~55 °C

Storage: -20~45°C
Float Charge Voltage 2.25V/cell @25℃
Equalize Charge Voltage 2.35V/cell @25℃
Container Material ABS (UL94-V0 optional)

  • Battery Dimension

400AH Battery Energy Storage System High Reliability For General Purpose

  • Performance Curves

· Cyclic Characteristics

High cycle performance: up to 820 cycle at 80%DOD

400AH Battery Energy Storage System High Reliability For General Purpose
